15.1 Profile Selection Methods

Three of the five different ways to select a profile are discussed in this section.
15.1.1 Select a Profile with the User Interface:
To change the current Profile, navigate to the Select Current Profile screen:

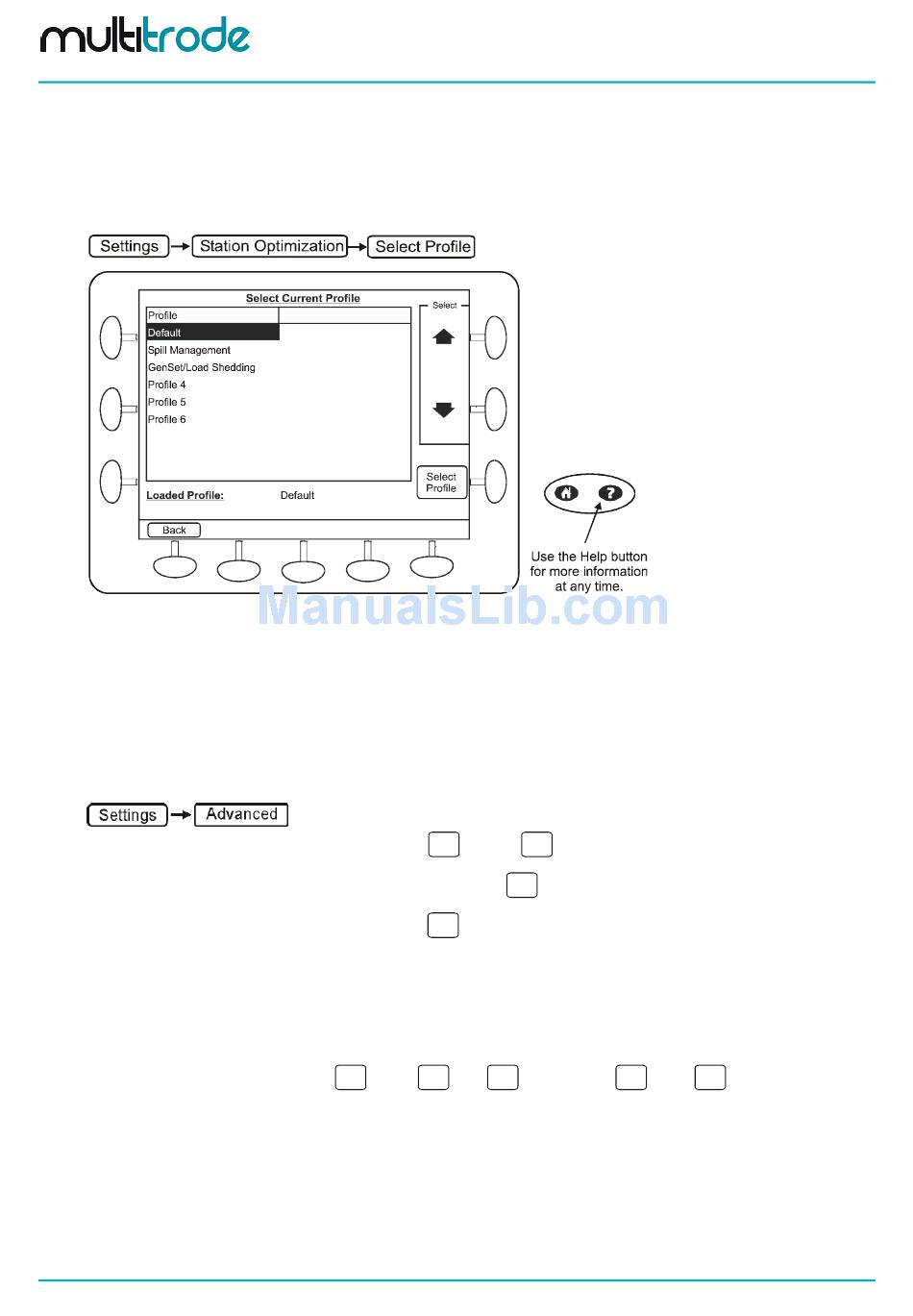

Figure 129 –Profile Selection Screen
•
Use the arrow buttons to select a Profile from the list.
•
Press the Select Profile button.
15.1.2 Selecting Profiles Using a Digital Tag
A digital tag whether for a digital input or for some other source can be assigned to select a profile:
•
From the tree select: Pump Control
•
Select the desired profile from the list and press
•
From the tree select: DIN Activation
Any digital tag (of type "DigitalTag") can be selected. In this example a digital input is the source.
The following values should be set:
•
Enabled? (check the box to enable, uncheck to disable)
•
Source (contains the digital tag source), press "Use this button to see additional values".
•
Scroll down to IO, press
•
Select the DIN to be use. Scroll down to ValueDigital, and Press Ok.
Page 136 of 260
MultiSmart Installation & Operation Manual
+ / -
Profile
+ / -
+ / -
+ / - + / - + / -
, Unit, , _1,
+ / -
+ / -
, TopBoard, , DIN,
