6.2 Mounting the Pump Station Manager

The pump station manager is designed to mount onto 35mm DIN rail. Overall dimensions are given below.

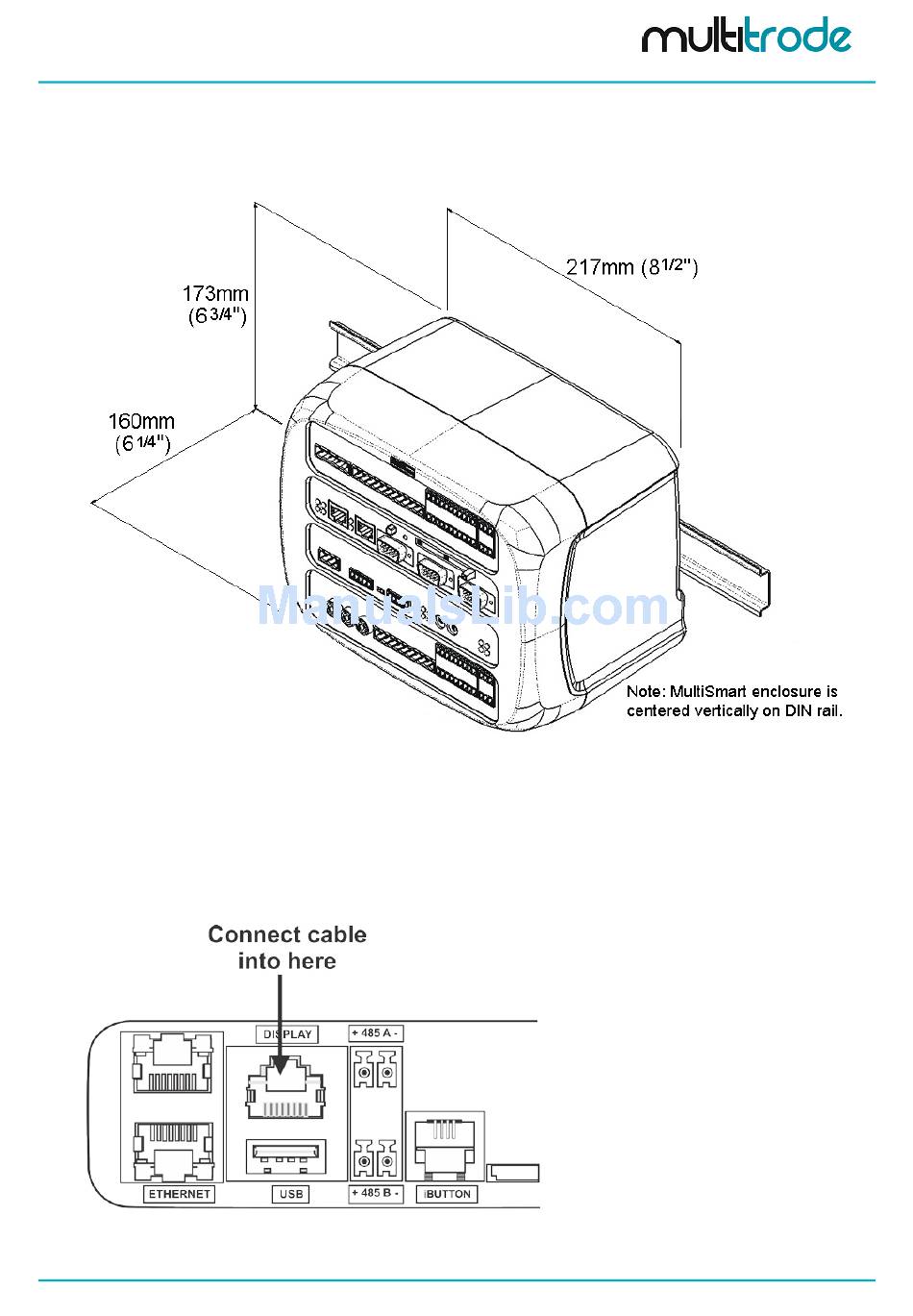

Figure 30 – Mounting the Controller

6.3 Connecting the Operator Interface to the Pump Station Manager

The interface and pump station manager are connected together with a supplied cable. Connect one end
into the RJ45 socket on the back of the interface. Connect the other end into the RJ45 socket marked
DISPLAY on the MultiSmart CPU Board.
Figure 31 – Connecting the display interface
