NOTE: In order to make some changes, a reboot of the pump station manager may be necessary – a
message will be displayed. It is recommended that all pumps are turned off prior to rebooting.

14.3 Unassigning Fault Inputs

Pump 1 CLS
Pump 1 FLS
Pump 1 Seal Fault
Pump 1 Thermal Overload
Pump 1 Motor Overtemp
Pump 1 CB Off/Trip
Pump 1 Contactor Auxiliary
Pump 1 Critical Fault
Pump 1 Delay Fail
Pump 1 Non-Critical Fault

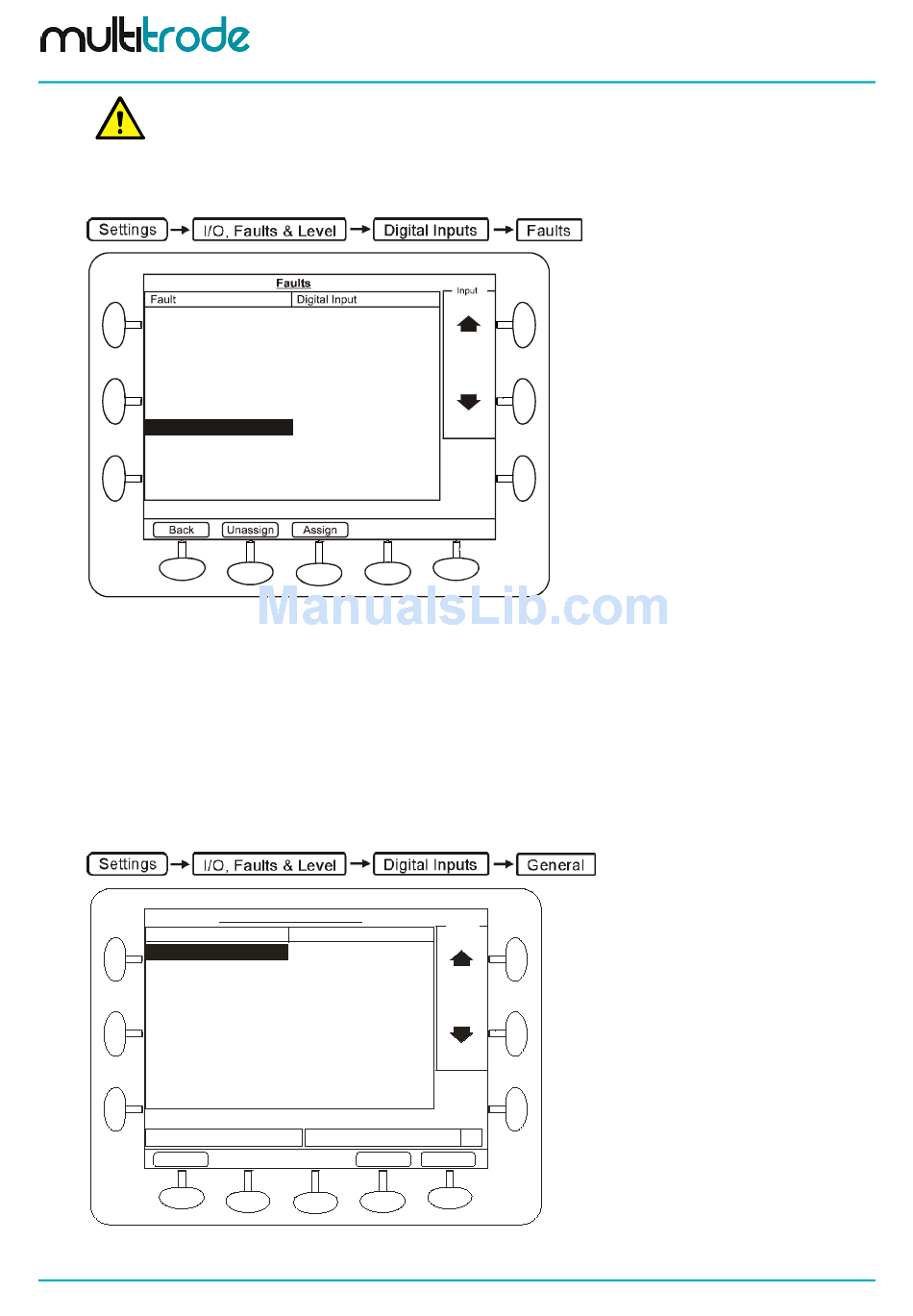

Figure 106 – Fault Screen
•
Use the scroll buttons to highlight the Fault to be unassigned.
•
Press the Unassign button, (Cancel and Save buttons will appear).
•
Press Back and repeat for each fault needs to be unassign.
•
Press Save at the end of the process.

14.4 Configuring Digital Inputs

Navigate to the Digital Inputs screen and press the General button.
Input
Top Board DIN 01
Top Board DIN 02
Top Board DIN 03
Top Board DIN 04
Top Board DIN 05
Top Board DIN 06
Top Board DIN 07
Top Board DIN 08
Top Board DIN 09
Input
TopBoard DIN 01
Back
Figure 107 – Digital Input Configuration Screen
Page 100 of 260
MultiSmart Installation & Operation Manual
TopBoard DIN 12
TopBoard DIN 14
TopBoard DIN 13
TopBoard DIN 15
General I/O Configuration
Description
DIN 01
DIN 02
DIN 03
DIN 04
DIN 05
DIN 06
DIN 07
DIN 08
DIN 09
Description
DIN 01
Cancel
Input
abc
Save
