16.1 Station Optimization Menu

Station Optimization is accessed by:

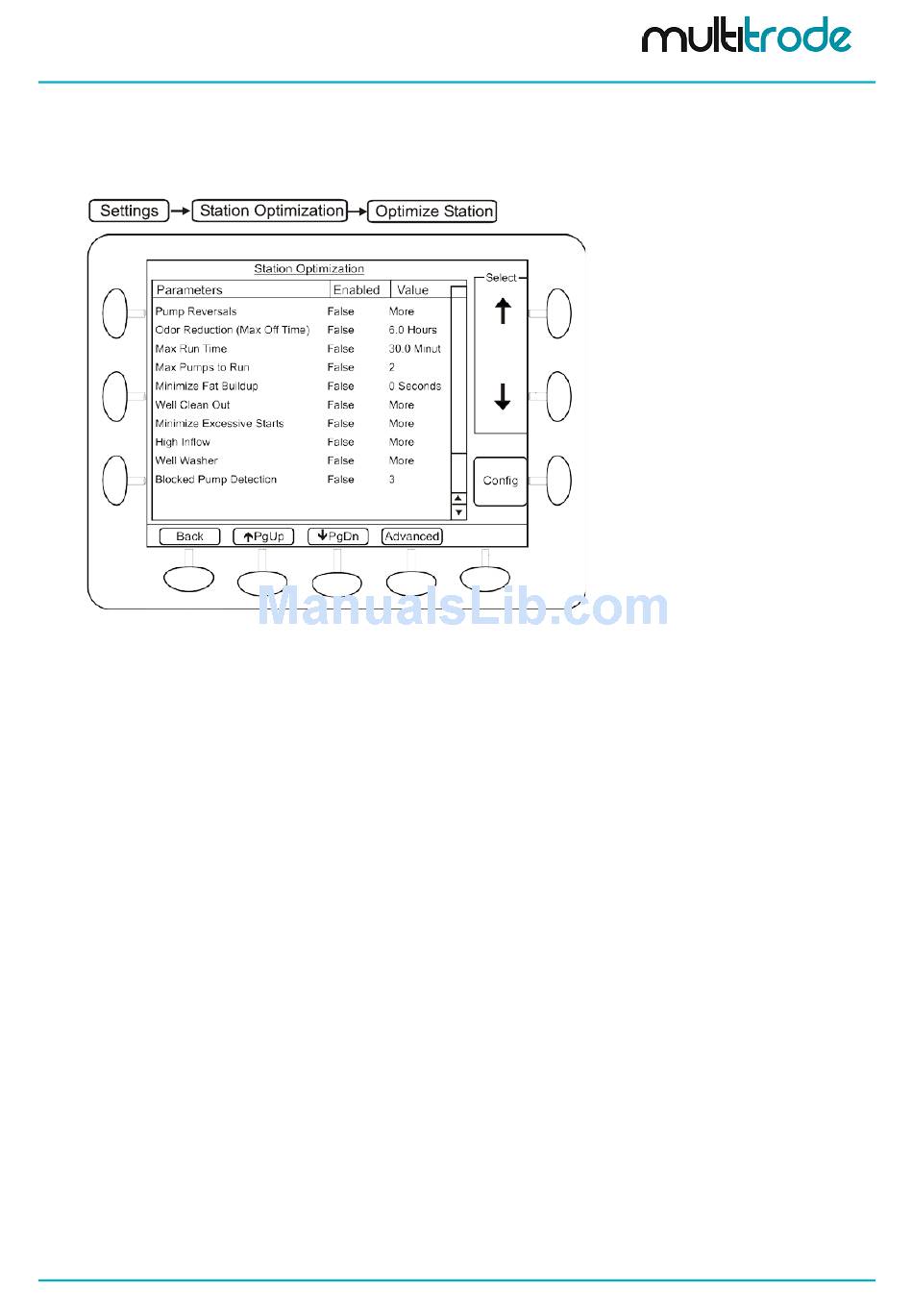

Figure 130 – Station Optimization Screen
To configure, highlight the optimization feature of interest and press Configure. The configuration screens
are mostly self-explanatory and five examples are covered in this section. The first example, pump reversals,
is the most complex.
16.1.1 Pump Reversing
The concept behind pump reversing is to prevent blockages by frequent and short pump reversing cycles.
There is also the option of reversing on specific faults. Manual reversing can be carried out from within this
configuration screen.
There are a few elements to configuring pump reversal:
•
Wiring a reversing contactor/starter for each pump and connecting each contactor input to a Digital
Output on MultiSmart
•
Configuring those Digital Outputs to activate from Pump Reversing (see section 14.11)
•
Configuring the duration and delays for pump reversal (this section)
•
Configuring automatic pump reversal on start or stop (this section)
•
Configuring certain faults to trigger pump reversal (see section 14.9.1), note that the duration and
delays are still set via the description in this section
With Pump Reversals highlighted in the Station Optimization screen, press Configure to setup the
automatic pump reversal - the Pump Reversals screen is displayed. (See figure below).
