NOTE: If the Units are changed, the existing flow statistics are not converted into the new units so a
reset of the flow statistics is recommended. (Navigate to: Info

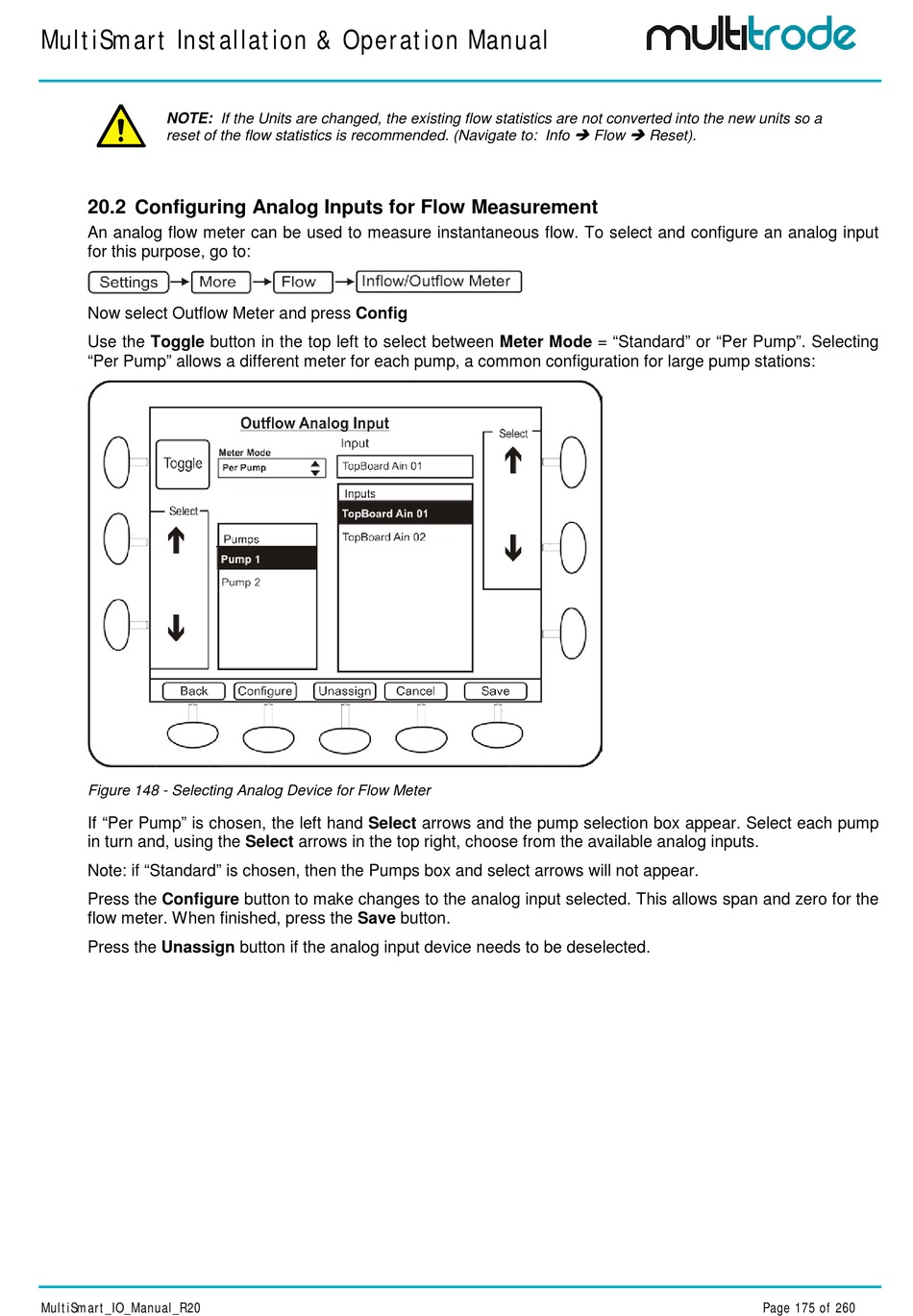

20.2 Configuring Analog Inputs for Flow Measurement

An analog flow meter can be used to measure instantaneous flow. To select and configure an analog input
for this purpose, go to:
Now select Outflow Meter and press Config
Use the Toggle button in the top left to select between Meter Mode = "Standard" or "Per Pump". Selecting
"Per Pump" allows a different meter for each pump, a common configuration for large pump stations:
Figure 148 - Selecting Analog Device for Flow Meter
If "Per Pump" is chosen, the left hand Select arrows and the pump selection box appear. Select each pump
in turn and, using the Select arrows in the top right, choose from the available analog inputs.
Note: if "Standard" is chosen, then the Pumps box and select arrows will not appear.
Press the Configure button to make changes to the analog input selected. This allows span and zero for the
flow meter. When finished, press the Save button.
Press the Unassign button if the analog input device needs to be deselected.
MultiSmart_IO_Manual_R20
 
Flow Reset).
