9 Quick Commissioning Guide

MultiSmart is fully configurable from the LCD user interface. However, there is also a PC-based configurator
program with sophisticated functionality now available.
The MultiSmart is pre-programmed with a number of standard configurations for typical water/wastewater
applications. These include:
•
Pump station manager with local level
•
Pump station manager with remote level (reservoir)
•
Reservoir monitor communicating with remote pump station
The Setup Wizard in the Settings menu takes you through a number of questions to configure the product.
NOTE: If the unit has already been setup by a previous user, then security may be enabled via a DIN
or by a PIN number. Refer to Section 11 for more detail.
Set Points
Level and alarm setpoints, enable/disable
alarms, delays, maintenance mode & level
simulation
Setup Wizard
Commission a station - Fill/Empty Mode,
number of pumps, wells, level device
Alternation & Grouping
Alternation, fixed sequence and multiple
groups of pumps
Main

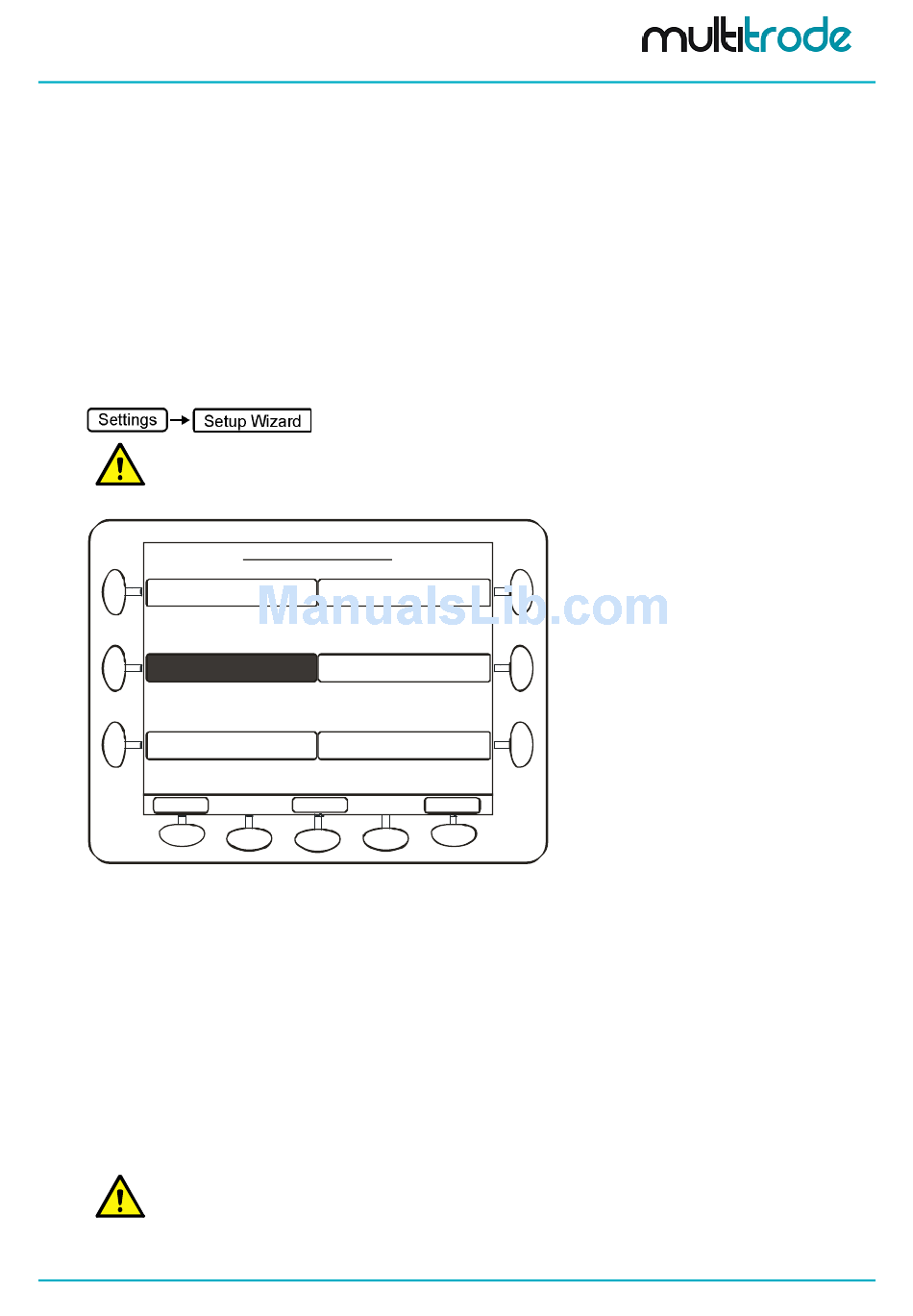

Figure 70 – Settings Screen
When a pump station manager is selected, this also establishes one of the standard I/O connection diagrams
(see Section 7.2 to Section 7.2.4). The MultiSmart pump station manager establishes 1 of 4 standard
connection diagrams, depending on whether the configuration is:
•
2 pumps with a MultiTrode Probe / Duo probe
•
3 pumps with a MultiTrode Probe / Duo probe
•
2 pumps with a 4-20mA level device
•
3 pumps with a 4-20mA level device
These connections diagrams have a complete set of pump faults wired in (contactor auxiliary input, C/B off
trip, pump seal and thermal (or Flygt FLS), thermal overload).
NOTE: Disabling any faults not required is a very simple task – see Section 9.3 at the end of the Quick
Commissioning Guide.
MultiSmart_IO_Manual_R20
Station Settings - Page 1 of 3:
I/O, Faults, & Level
Link faults to inputs, configure faults,
primary and backup level source, configure
Station Optimization
Odor reduction, well-clean-out, blocked
pump detection, max run time, max station
starts, max pumps to run, profiles etc.
Commission / Decom
Take pumps in and out of service
Advanced
AOUTs & DOUTs
More ...
