Operator Interface

The MultiSmart pump station manager has an easy to use interface featuring a large graphical LCD. A large
amount of critical information is displayed on the main screen, making it simple for an operator to determine
the current status of the pump station at a glance.
The buttons (or soft-keys) around the edge of the screen are used to access features, depending on what is
displayed at the time.
–

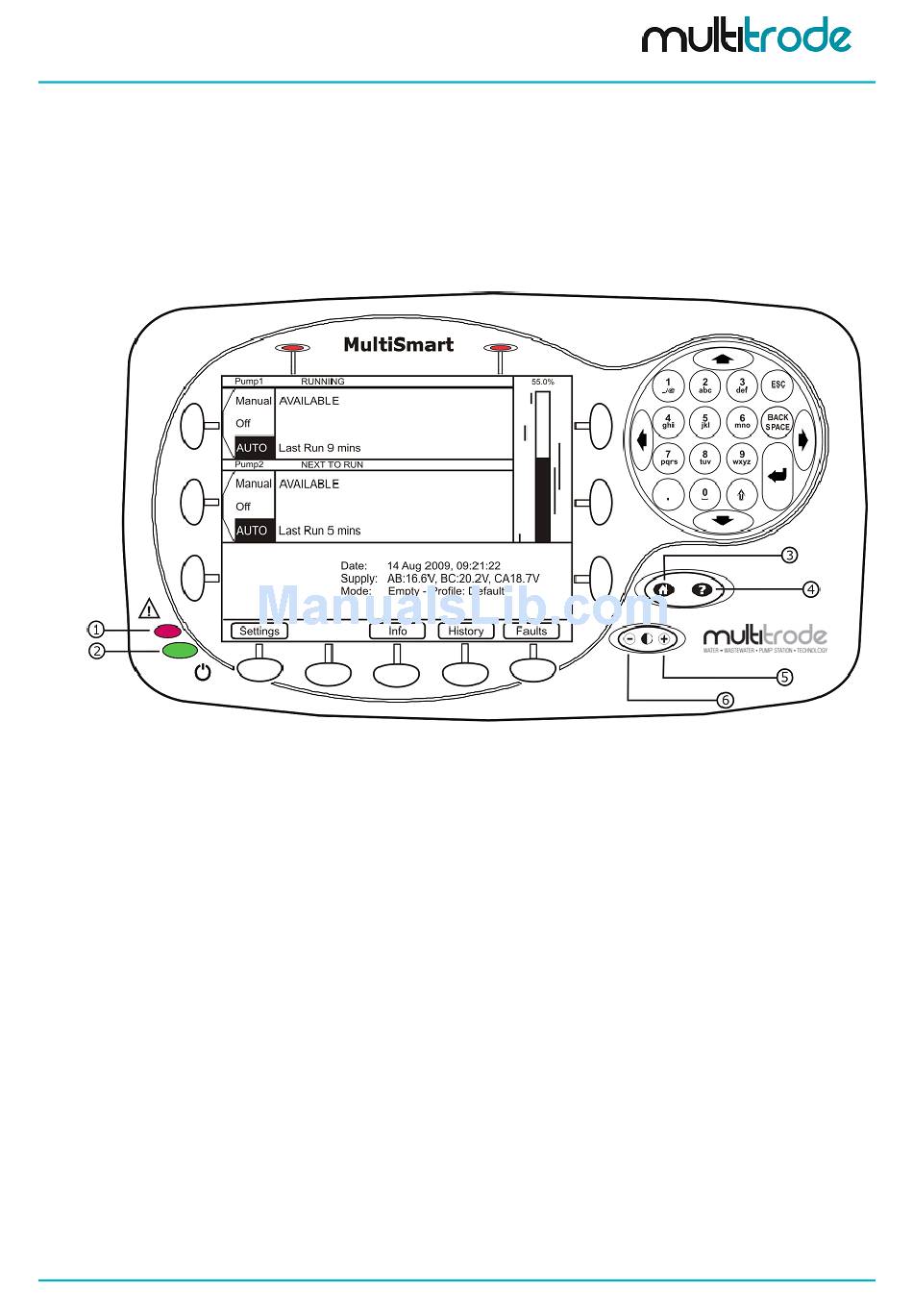

Figure 1 MultiSmart Display
1. Fault Indication LED (Red)
2. Power Status LED (Green)
3. Home Button
4. Help Button
5. Increase Contrast
6. Decrease Contrast

5.1 LCD Panel

The large LCD gives the operator a clear view of how the pump station is operating. Water levels are shown
graphically. A backlight turns on when any of the display buttons are pushed. The backlight turns off again
after a set time of inactivity (this time is user configurable).
