MultiSmart Installation & Operation Manual

14.5 Configuring Analog Inputs

Navigate to the Analog Inputs screen, select an input and press the General button.
Analog Input
Top Board AIN 01
Top Board AIN 02
This screen is for display only. To edit, select General.
Back

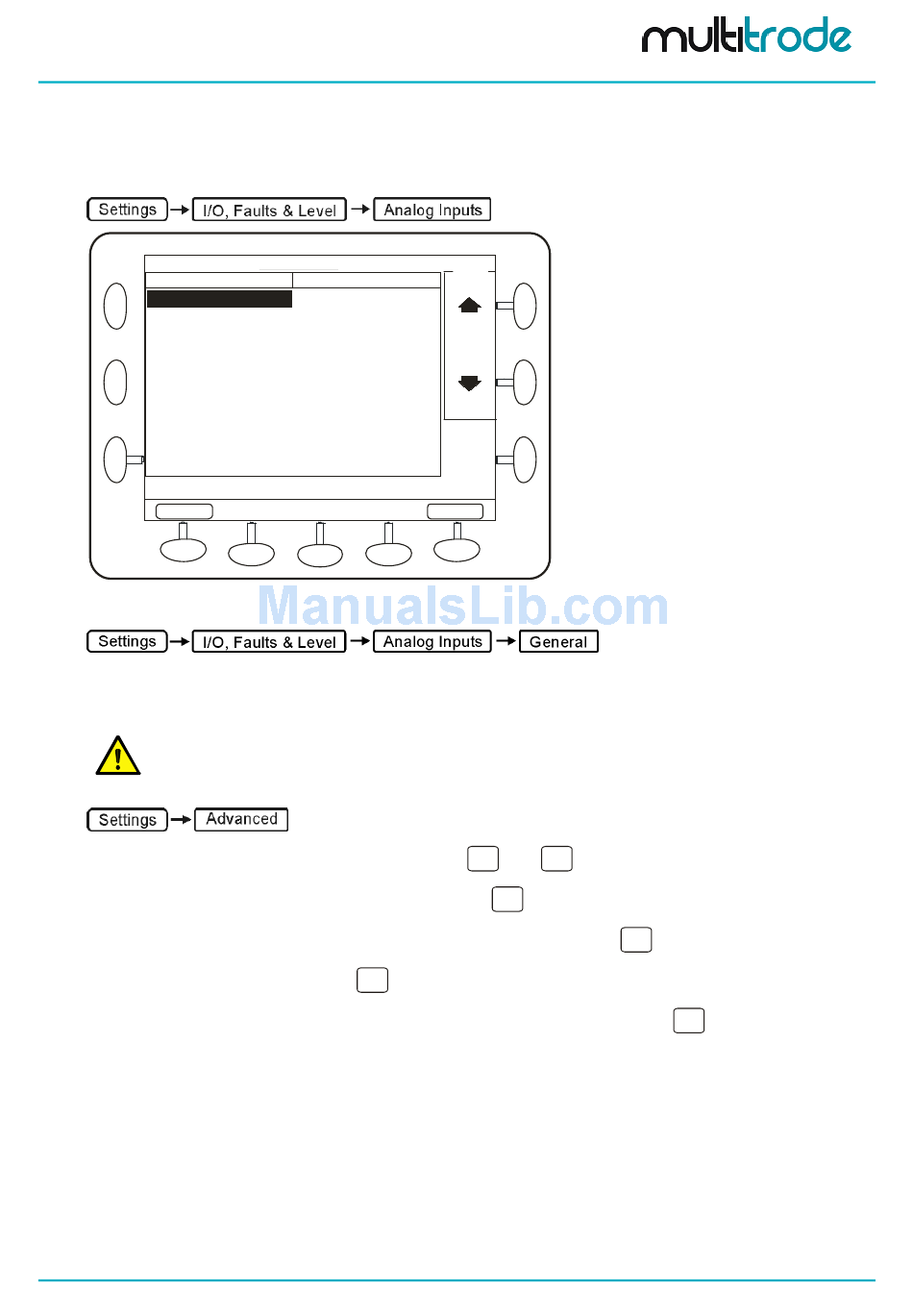

Figure 108 - Analog Input Configuration
This screen allows the AIN to be zeroed and spanned, as well as the description of the input to be changed.
(This description appears in the Info screens, in Section 14 Configuring I/O, Fault & Level Devices.)
Advanced configuration options can be found in the advanced menu.
NOTE: In most cases, the default settings will be suitable. Only make changes in the advanced menu if
you have a good understanding of analog sensors and their configuration.
•
From the tree structure select: IO Module
•
Select the correct unit (i.e. Unit 01) and press
•
Select which module the inputs are located, i.e. TopBoard then
•
Select Analog Inputs then
•
Select the appropriate analog input (i.e. AIN 01) to configure and press
MultiSmart_IO_Manual_R20
Analog Inputs
Assigned
AIN.01
AIN.02
+ / -
Input
General
+ / - + / -
Unit
+ / -
+ / -
+ / -
Page 103 of 260
