To configure security to be activated by a digital input, press Security via Digital Input.
•
Enable security via DIN by pressing the Toggle button
•
Select a digital input tag. By default, this is set to DIN 20 on the top board. Any digital tag in the
system can be selected, allowing greater flexibility than just using Digital Inputs. To choose another
Digital Input, simply use the tag browser to find the appropriate DIN, and choose ValueDigital (see
Figure 85 and Figure 86 in Section 11.1 below).
•
Press Save

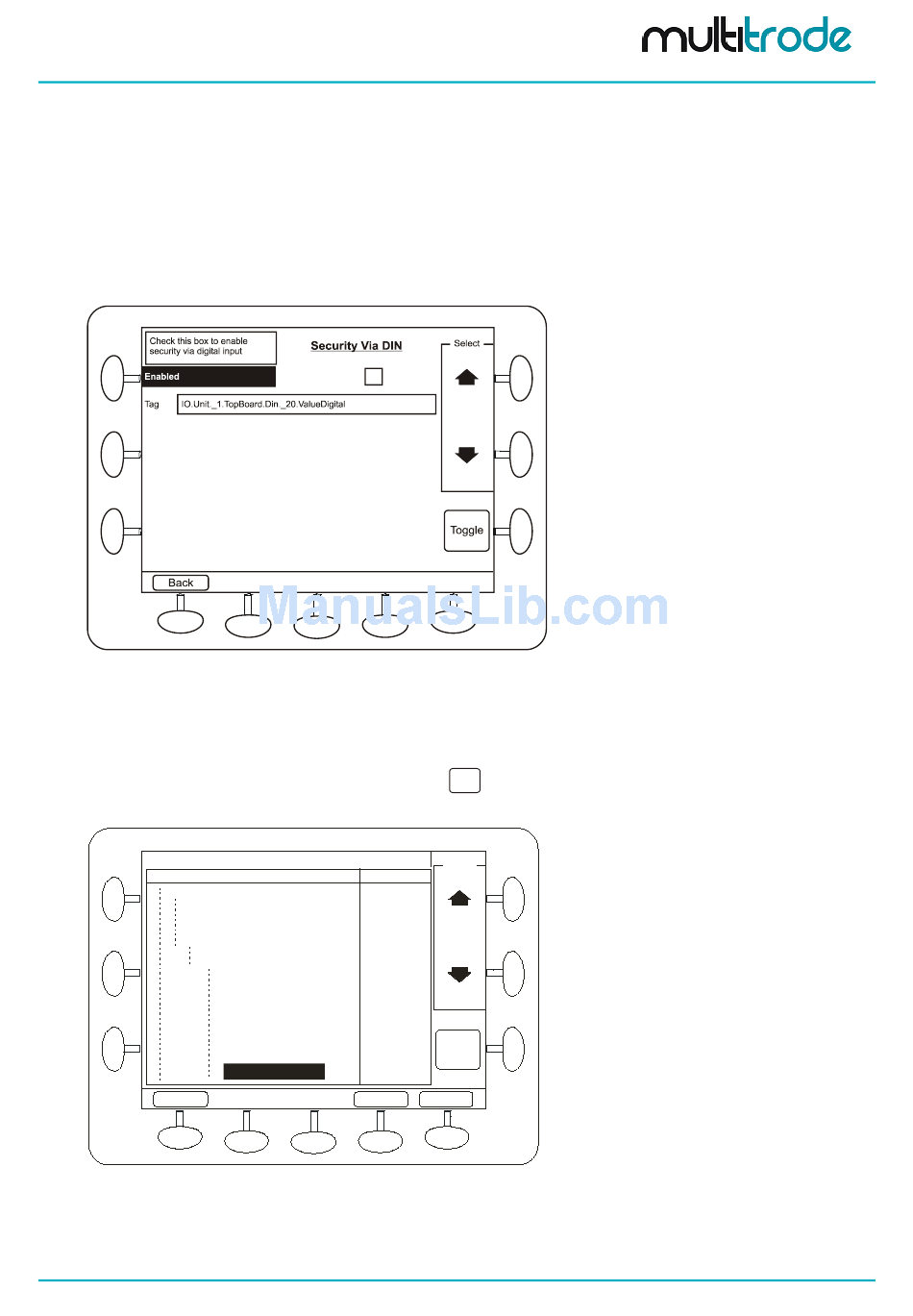

Figure 88 – Configure Security via DIN

11.1 Selecting any Digital Input Tag

The screens below show how to navigate to any digital input tag.
Find the IO Module in Advanced and using the
Input you are looking for.
Please Select: Digital Tag
Name
_IO
....CAN Baud Rate
....Demo Case
....Unit
..._1
...Bottom Board
...DcVolts
...Probe
...System
...Top Board
...+
Clear
Figure 89 – Tag browser screen
MultiSmart_IO_Manual_R20
Type
Node
Node
Attribute In
Attribute B
Node
Node
Node
Node
Node
Node
Ain Node
Cancel
+ / -
button, expand out the tree view to get to the Digital
Select
+ / -
OK
