Operating the Multimeter
From the the oscilloscope window, press the OSC/DMM key, the oscilloscope will switch to
the multimeter mode window. The screen will then display the measurement mode window
that was in use the last time the multimeter was switched OFF. When switching to the
multimeter measurement mode for the first time, the default measurement mode is DC
voltage.
Measuring Resistance Values
To measure a resistance, perform the following:
1) Press the R key; the resistance measurement window appears on the screen.
2) Insert the black lead into the COM banana jack input and the red lead into the V/Ω/C
banana jack input.
3) Connect the red and black test leads to the resistor. The resistance value is shown on the
screen in Ohms. Refer to the screen image in figure 7-2.

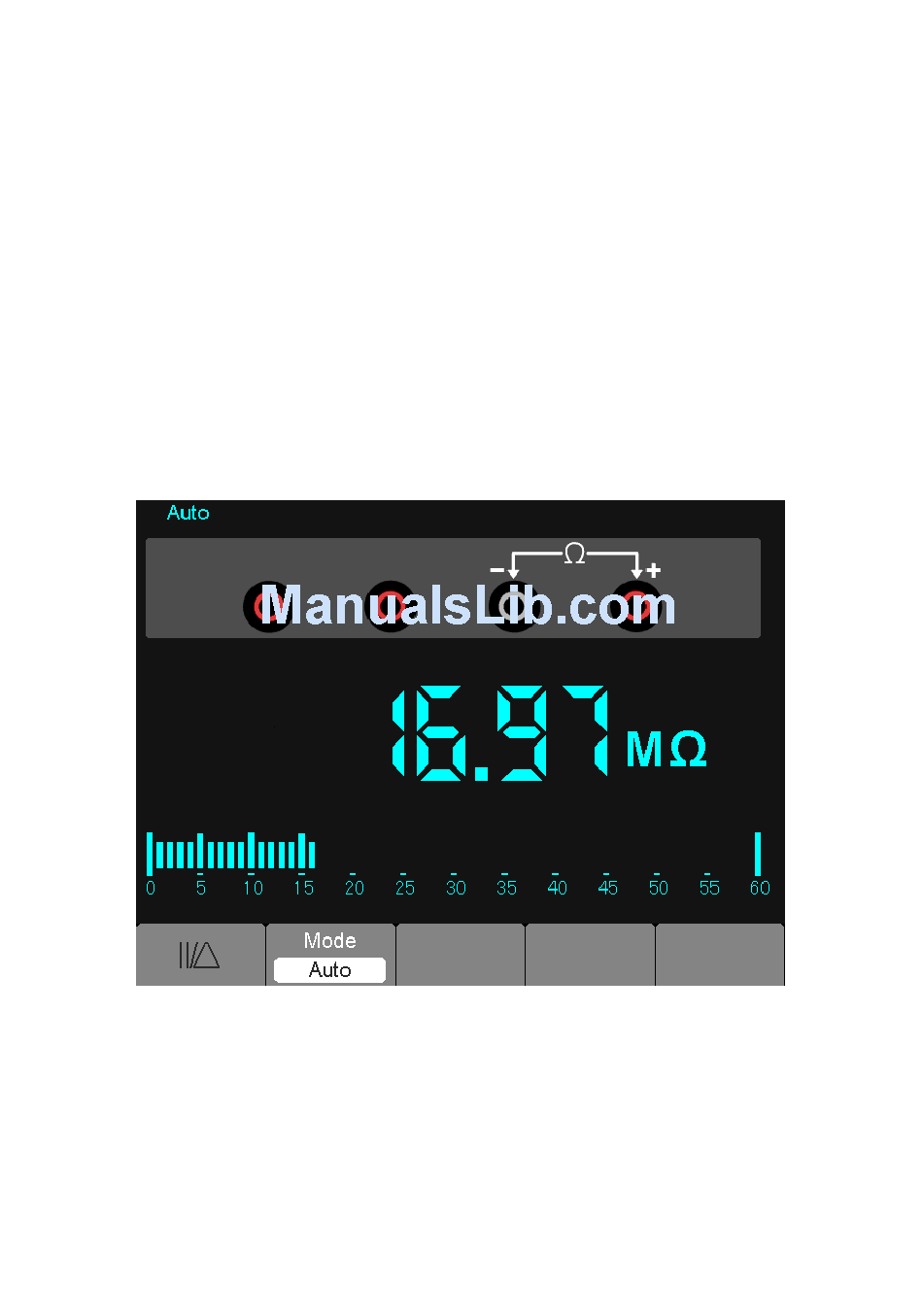

Figure 7-2 Resistance Measurement
61
MS6000-EU-EN-V1.3
