Making a Capacitance Measurement
To measure a capacitance, do the following:
1) Press the key; the
2) Insert the black lead into the COM banana jack input and the red lead into the V/Ω/C
banana jack input.
3) Connect the red and black leads to the capacitor; the capacitance value is displayed on
the screen in µF or nF. The screen will resemble the image in figure 7-5.
symbol appears at the top of the screen.

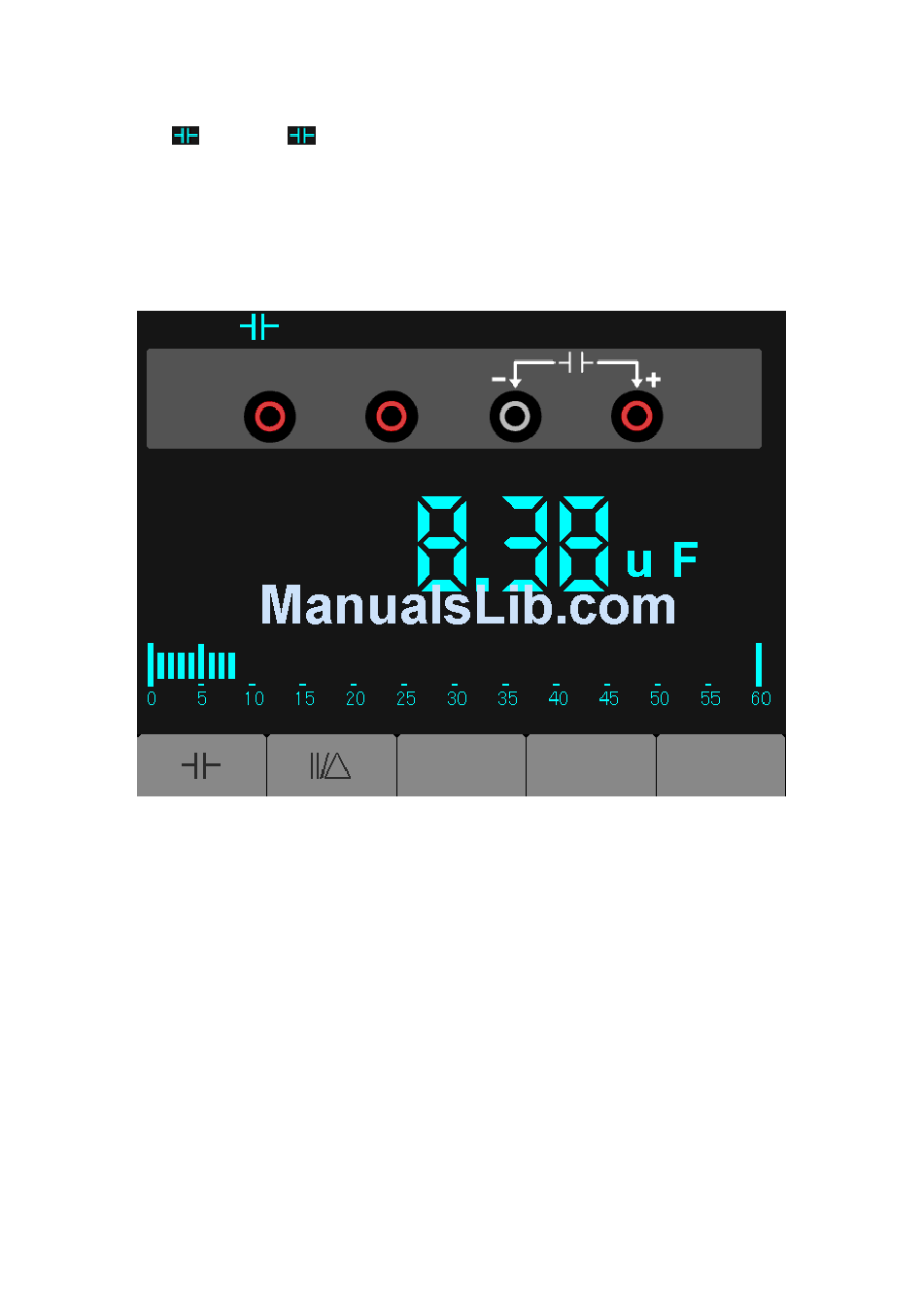

Figure 7-5 Capacitance Measurement
