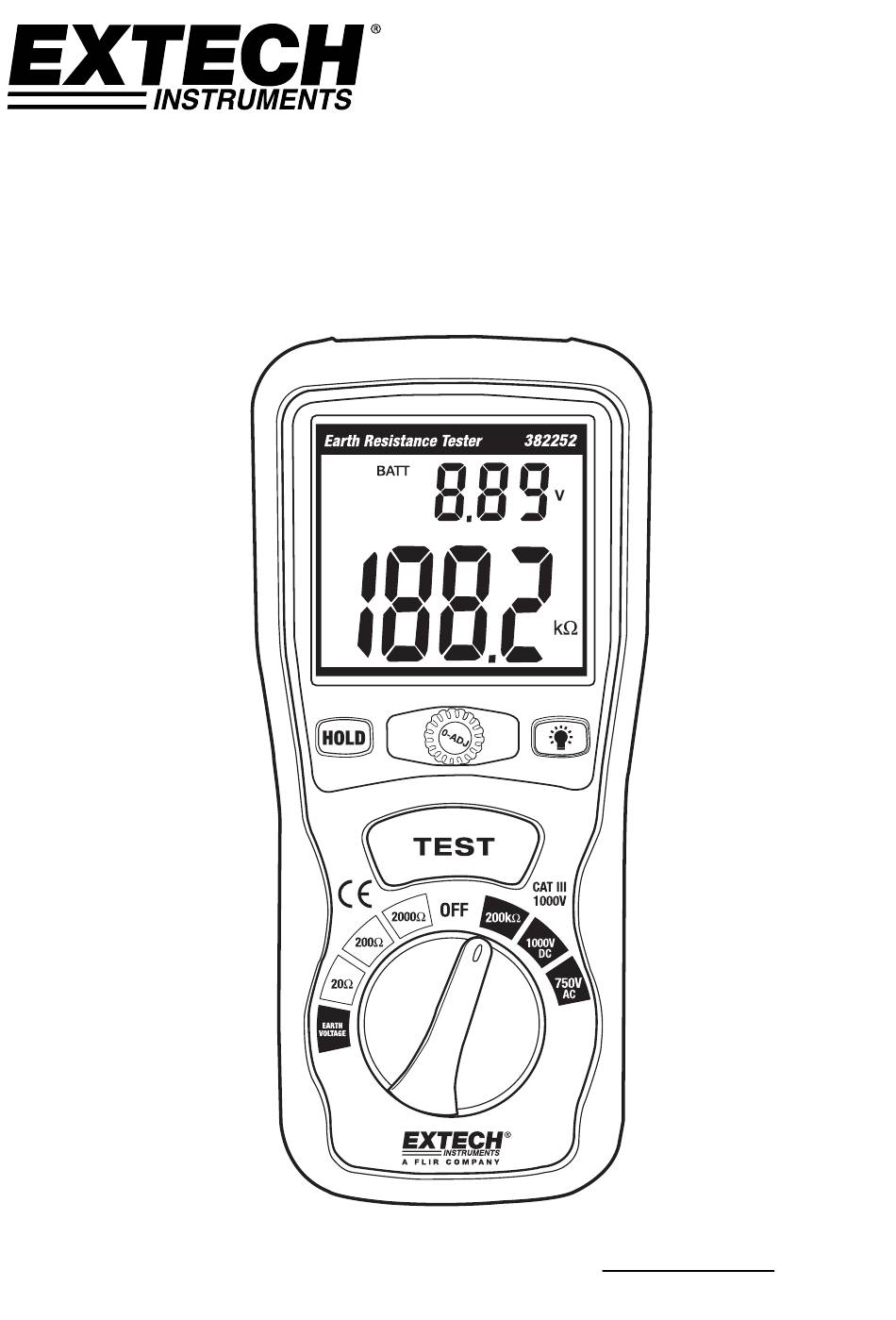

- Page 1 User Manual Earth Ground Resistance Tester Kit Model 382252 Additional User Manual Translations available at www.extech.com ...
- Page 2 Introduction Congratulations on your purchase of the Extech 382252 Earth Ground Resistance Tester Kit. This device can measure Earth Ground Resistance (in 3 ranges), Earth Voltage and Resistance (up to 200kand AC and DC voltage. This device was designed to meet EN61010-1 safety standards.
-

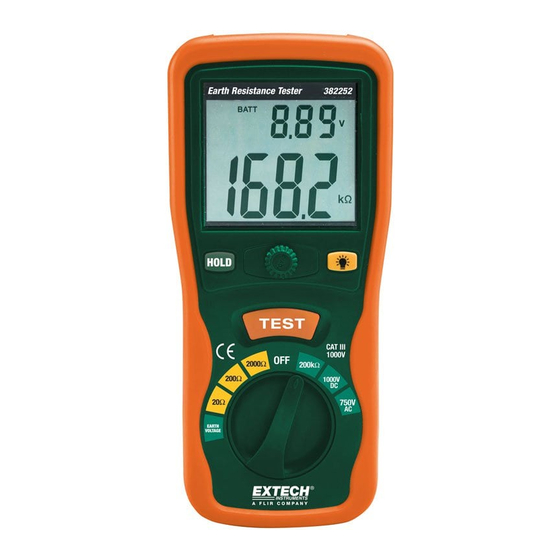

Page 3: Meter Description
VC Input (Red) P Input (Yellow) COM / E Input (Green) Display Description Test status Icon Battery Charge indicator - Voltage Unit indicator Audible Signal Icon kUnits Indicators Measurement Value AC/DC Voltage Indicators Low Battery Icon HOLD Icon 382252-en-GB_V1.5 1/17... -
Page 4: Operation
Use the 0-Adjust knob to adjust the displayed reading to 000 Press to TEST key again to end the Zero adjustment process. Perform this adjustment for each range. Test Connection Diagram 382252 Meter Green Test Lead (E) Yellow Test Lead (P) Red Test Lead (C) - Page 5 2. Press the HOLD key again to exit the HOLD function. 3. The HOLD function does not retain measurement data if the meter is turned off. Backlight Press the “ “ key to turn on the backlight. The backlight will turn off after approximately 15 seconds. 382252-en-GB_V1.5 1/17...
- Page 6 Connect the Red and Green test clips to the ground rod or other item to be measured. Press TEST button. The “ “ icon will flash and the audible signal will sound. Note the resistance reading on the display. Press the TEST button to stop the test. 382252-en-GB_V1.5 1/17...
-
Page 7: Maintenance
700g (24.7oz) with batteries Dimensions 200 x 92 x 50 mm (7.9 x 3.62 x 2") Operating Conditions 0ºC to 40ºC (32ºF to 104ºF), with < 80% RH Storage Conditions -10ºC to 60ºC (14ºF to 140ºF), with < 70% RH 382252-en-GB_V1.5 1/17... -
Page 8: Kit Contents
± (0.8% reading +3 digits) DC Voltage Overload Protection: 1000 Vrms, Input Impedance: 10M Kit contents 382252 Earth Ground Resistance Meter 2 Ground rods - zinc plated iron (22cm) 6 - AA alkaline batteries 3 Ground rod test cables - Red (15m), Yellow (10m), Green(5m) 2 Test leads for Ground Resistance with alligator clips (Red and Green) (1.5m)
