Making a Continuity Measurement

To perform a Continuity test, perform the following:
)
1) Press the key; the
 )
)
2) Insert the black lead into the COM banana jack input and the red lead into the V/Ω/C
banana jack input.
3) Connect the red and black leads to the test points. If the resistance value of the tested
points is less than 30 Ω, a beep will sound from the test tool. The screen will resemble the
image in figure 7-4.
)
indictor appears at the top of the screen.
 )
)

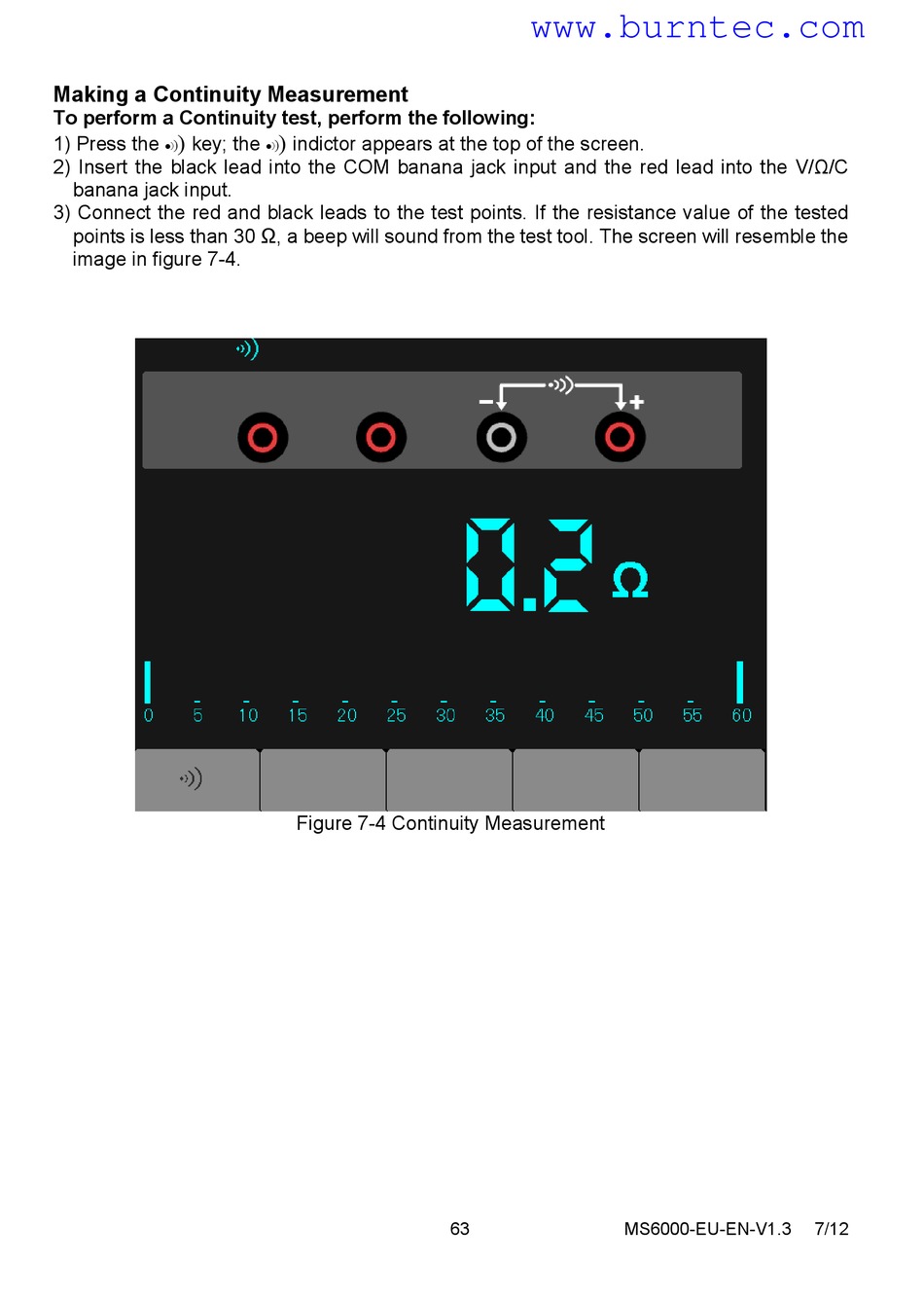

Figure 7-4 Continuity Measurement
