Making a DC Voltage Measurement
To measure a DC voltage, perform the following:
1) Press the V key; the Auto DC icon appears at the top of the screen.
2) Insert the black lead into the COM banana jack input and the red lead into the V/Ω/C
banana jack input.
3) Connect the red and black leads to the measurement points; the voltage value of the
measured points is displayed on the screen. The screen will resemble the image in figure
7-6.

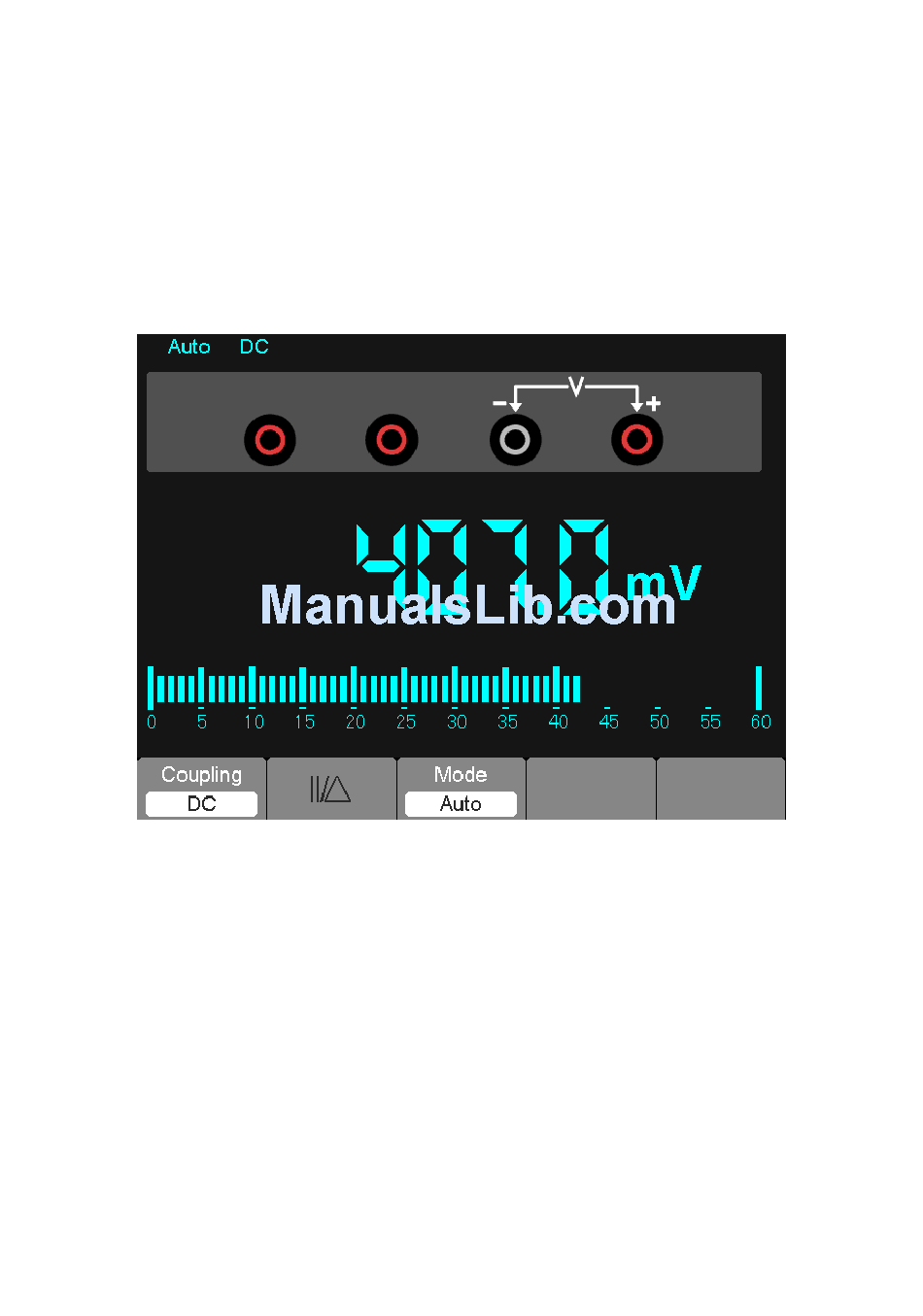

Figure 7-6 DC voltage Measurement
