Amplitude
Overshoot
OK (F5)

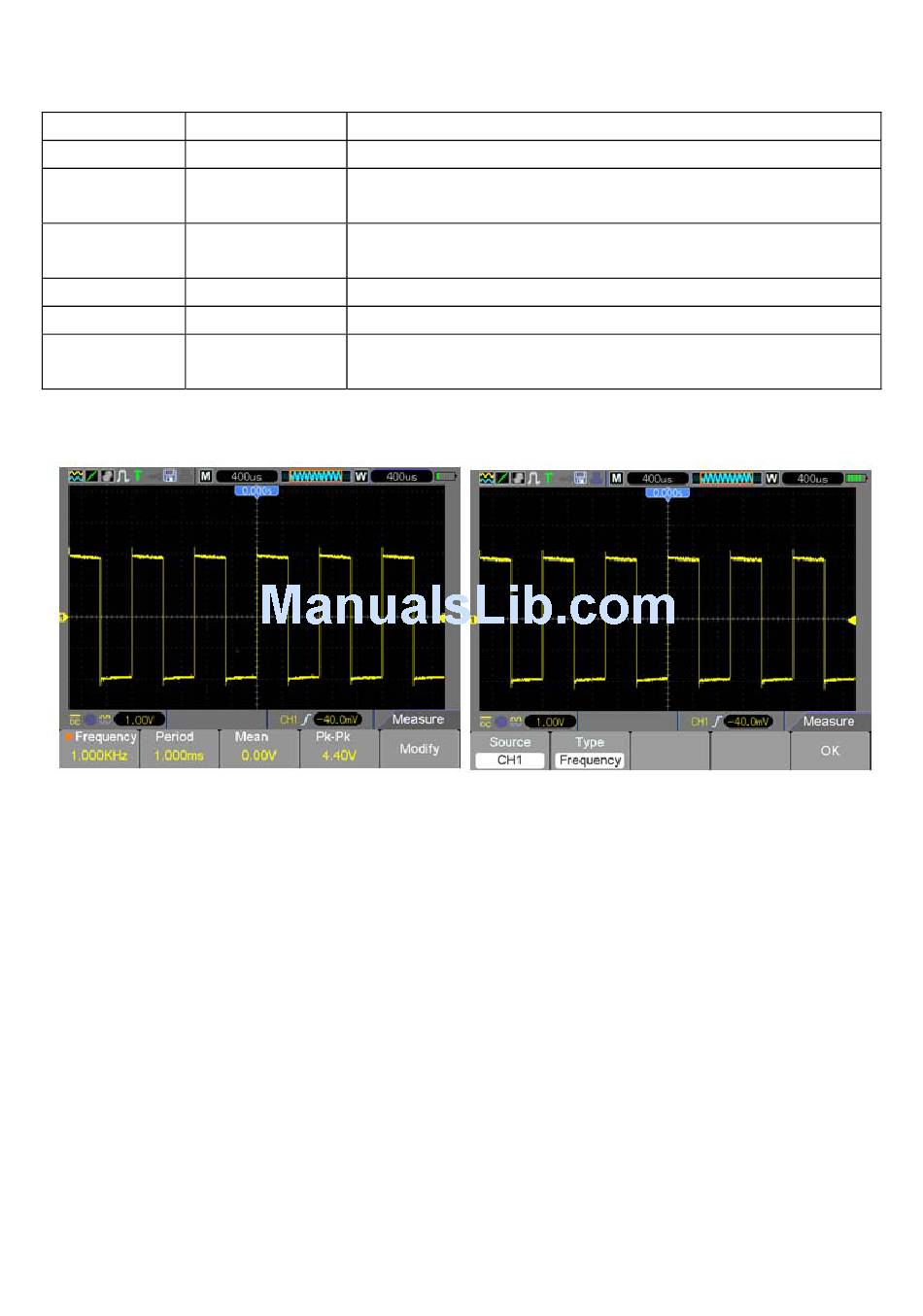

The readouts in larger font size on the menu are the results of the corresponding measurements
Taking Measurements: For a single waveform (or a waveform divided among multiple waveforms), up
to 8 automatic measurements can be displayed at a time. The waveform channel must stay in an 'ON'
(displayed) state to facilitate the measurement. The automatic measurement cannot be performed on
reference or math waveforms, or in XY or Scan mode.
Middle
Voltage at the 50% level of the base to the top
Amplitude = Base – Top, measured over the entire waveform
Negative overshoot = (Base – Min)/Amp x100%, measured over
the entire waveform
Postitive overshoot = (Max – Top)/Amp x100%, measured over
Preshoot
the entire waveform
RMS
The Root Mean Square voltage over the entire waveform
Off
Do not take a measurement.
Press to engage Measurement after Source and Type is
selected.
www.burntec.com
only.
49
MS6000-EU-EN-V1.3
7/12
