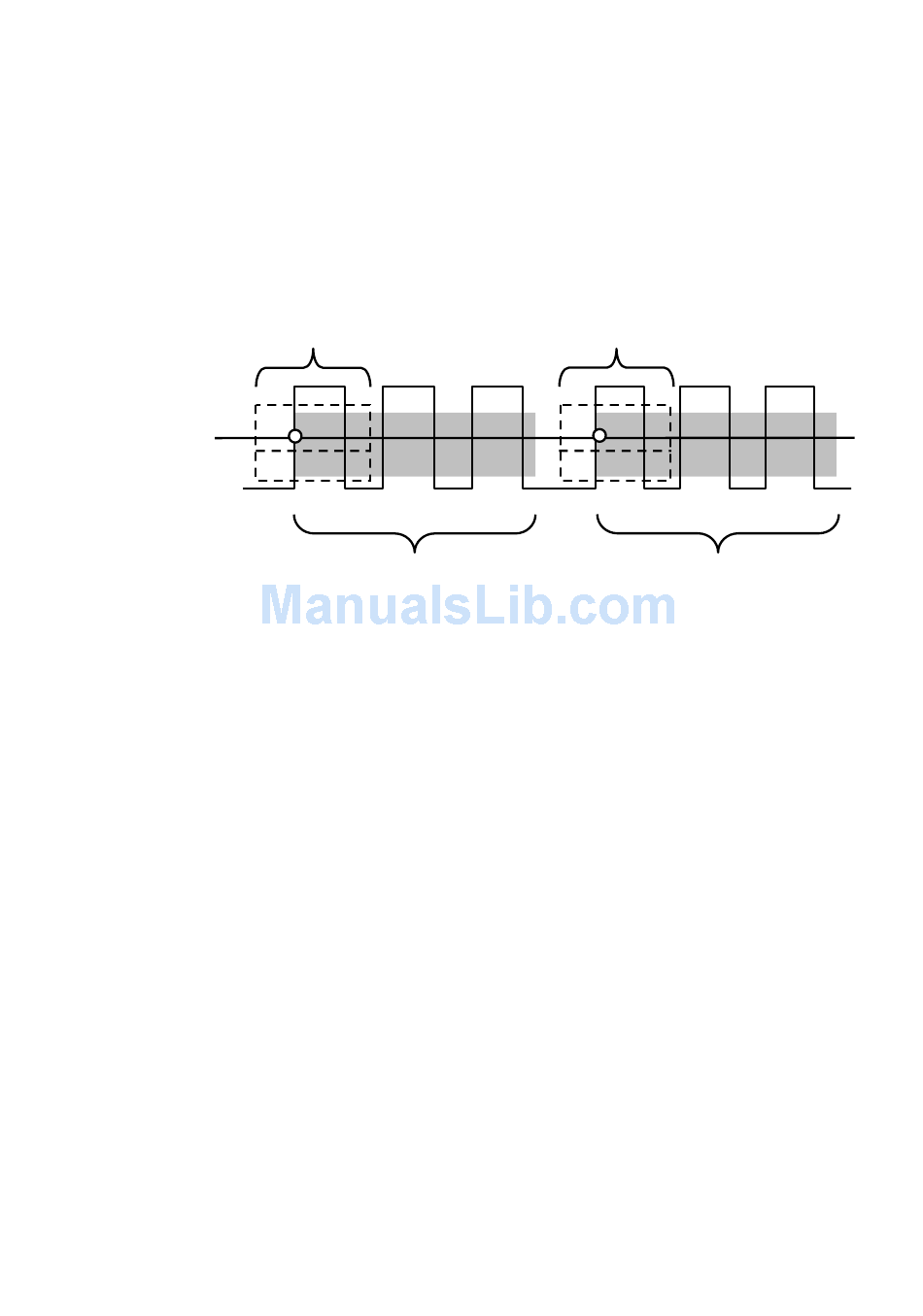

Holdoff: To use Trigger Holdoff, push the HORI button and set the Holdoff Time option (F3). The Trigger
Holdoff function can be used to generate a stable display of complex waveforms (such as pulse trains).
Holdoff is the time between when the oscilloscope detects one trigger and when it is ready to detect
another. During the holdoff time, the oscilloscope will not trigger. For a pulse train, the holdoff time can
be adjusted to let the oscilloscope trigger only on the first pulse in the train.
Use the Multifunction control to adjust the timing for this feature.
Acquisition Interval
Trigger Level
Indicates
Trigger Points
www.burntec.com
Acquisition Interval
Holdoff
