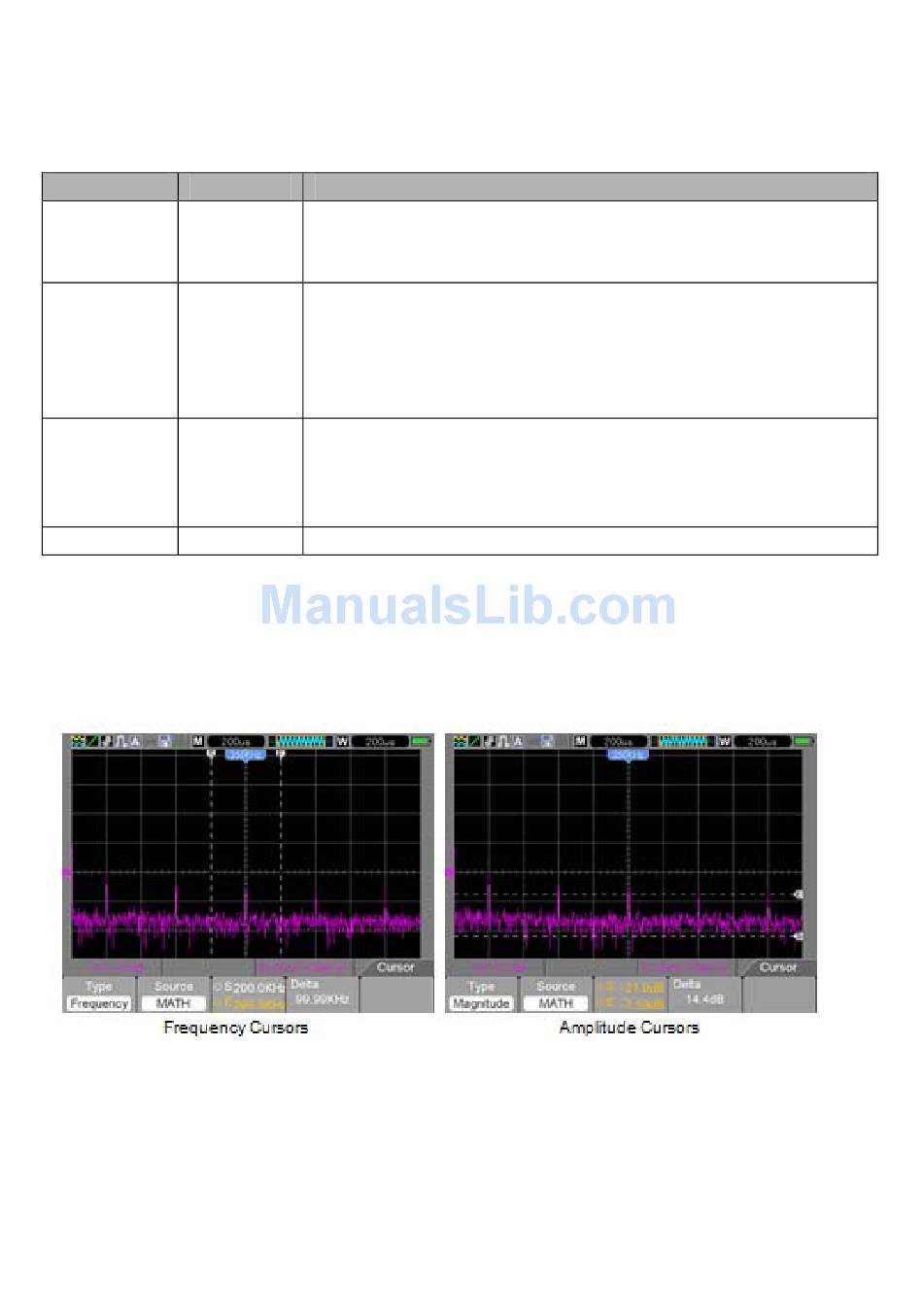

4.5.3
CURSOR
The Cursor Menu is accessed by pressing the CURSOR button.
Options
Settings
Type (F1)
Voltage
Time
CH1
CH2
Source (F2)
MATH
REFA
REFB
Select Cursor
(F3)
Delta (F4)
Moving Cursors: Press the Select Cursor (F3) key to select a cursor (S, E, or both) and move it using
the multifunction control. Cursors can be moved only when the Cursor Menu is displayed.
Comments
Off
Select a measurement cursor and display it.
Voltage measures amplitude while Time measures frequency and
time.
Select a waveform to take the cursor measurement.
Use the readouts to show the measurement.
'S' indicates Cursor 1. 'E' indicates Cursor 2.
S
A selected cursor can be moved independently using the Multifunction
E
ring control. When neither cursor is highlighted, they both are moved
at the same time using the arrow keys on the Multifunction control.
Displays the measurement of the difference between the two cursors.
www.burntec.com
50
MS6000-EU-EN-V1.3
7/12
