4.1

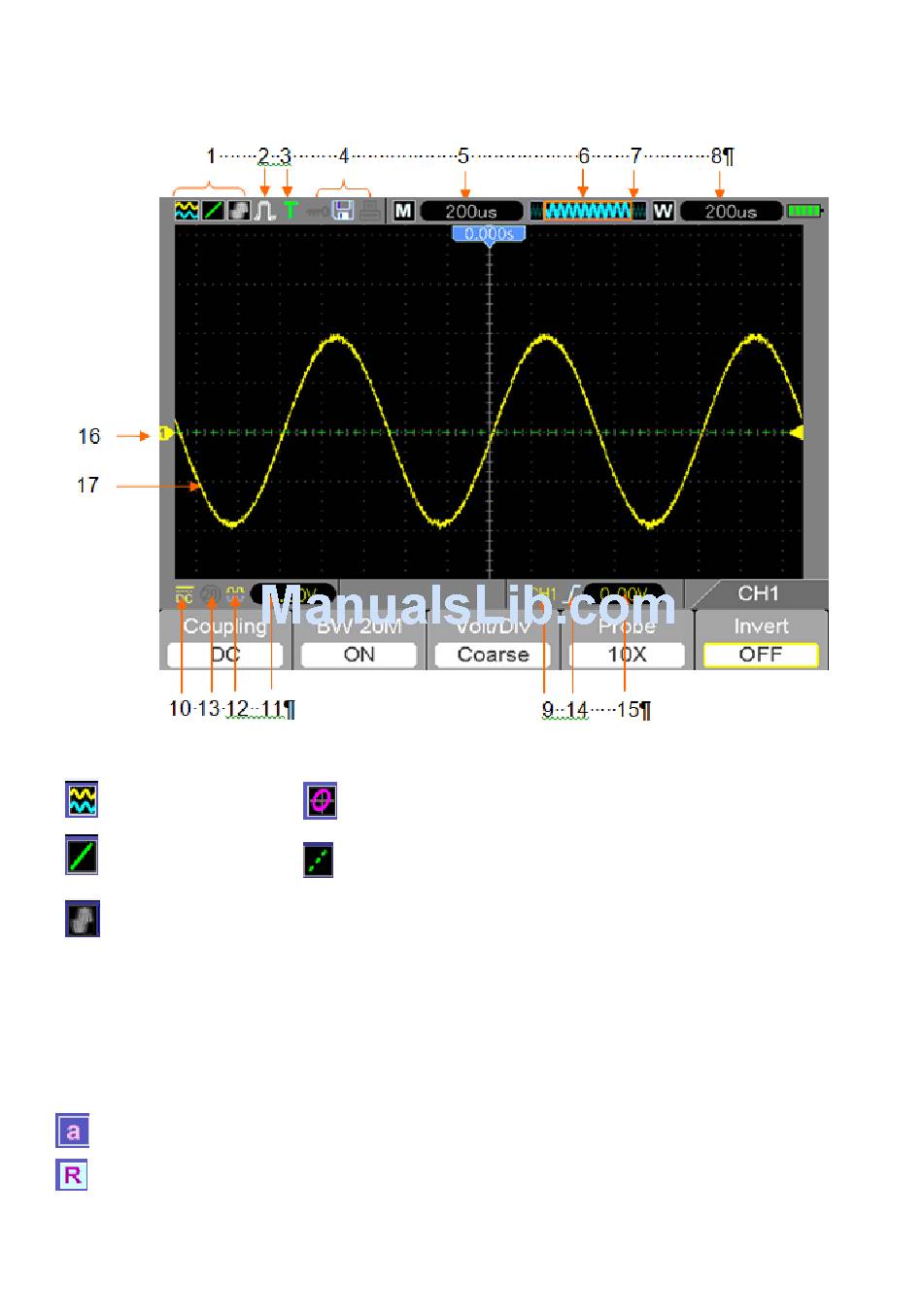

Display Area
1.
Display Format:
: YT
: Vectors
:
Gray indicates auto persistence; Green indicates persistence display is
enabled. When the icon is set to green, the time for persistence display will be
shown behind it.
2.
Acquisition Mode: Normal, Peak Detect or Average
3.
Trigger Status:
The oscilloscope is acquiring pre-triggered data.
All pre-triggered data have been acquired and the oscilloscope is ready to accept a trigger.
T
The oscilloscope has detected a trigger and is acquiring the post-trigger information.
: XY
: Dots
20
www.burntec.com
MS6000-EU-EN-V1.3
7/12
