Chapter 4 - Basic Operation
The front panel of the oscilloscope is divided into several functional areas. A quick overview of all control
buttons on the front panel as well as the displayed information on the screen and relative testing

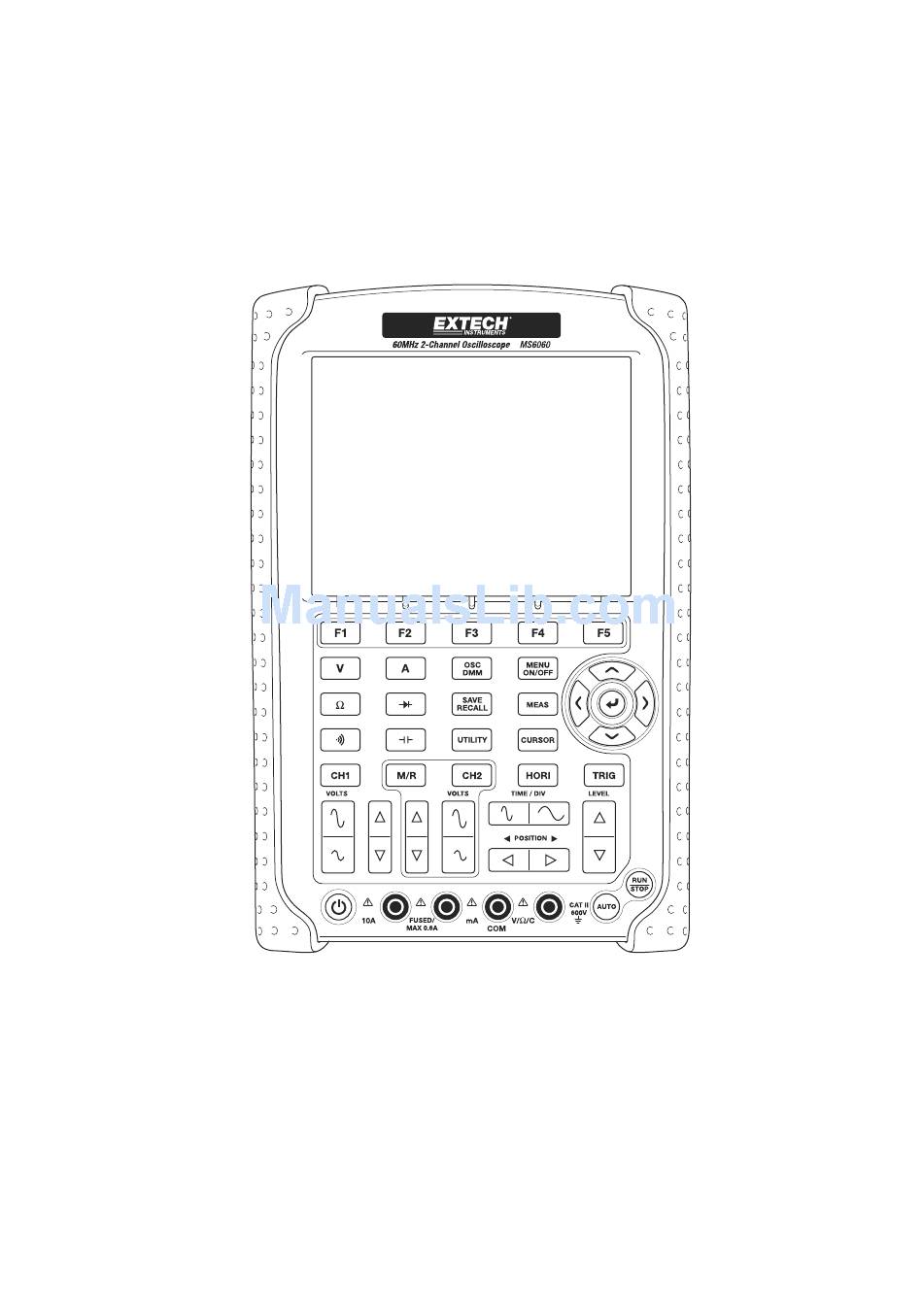

operations is provided in this chapter. The figure below illustrates the front panel of the MS6000 series
digital oscilloscope.
MS6000
Front Panel of the
Series
19
MS6000-EU-EN-V1.3
7/12
