Chapter 5 - Multimeter Operation
Multimeter Operation Window
Description
1) Measurement mode indicators:
DC: Direct current measurement
AC: Alternating current measurement
2) Input jacks and connection diagrams.
3) Manual/Auto range indicators, among which the MANUAL refers to measuring range in
manual operation mode and Auto means the measuring range in automatic operation
mode.
4) Measured value display.
5) Bar graph indicator.
6) DC or AC Measurement mode control.
7) Absolute/Relative magnitude measuring control: The sign "||" expresses the absolute
magnitude measuring control and "
control.
8) Manually or automatically measuring range control.

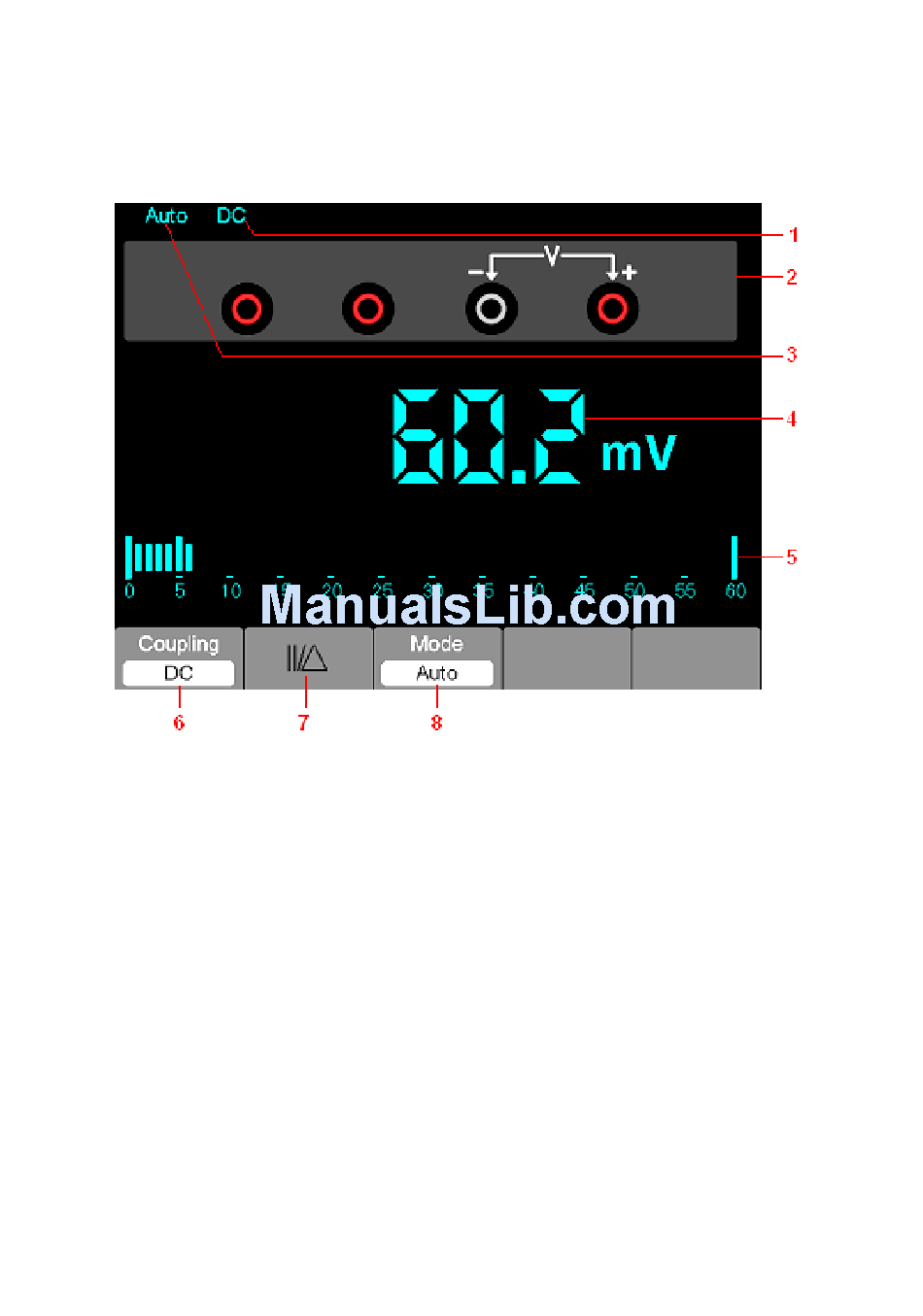

Figure 7-1 Multimeter operation window
∆
