4.5.7

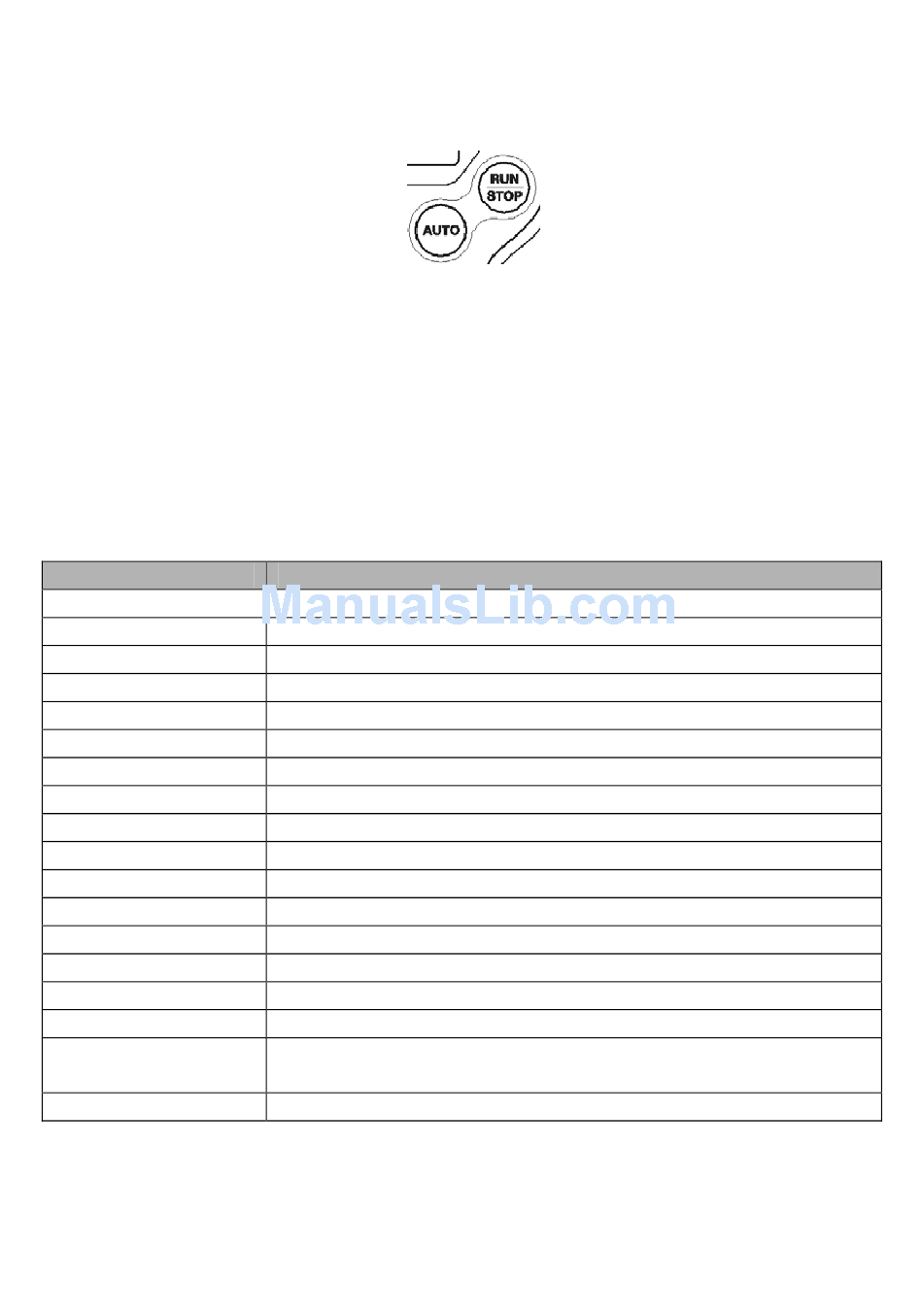

Fast Action Buttons

AUTO: Automatically set the oscilloscope controls to generate a usable display of the input signals.
Refer to the following table for relative content.
RUN/STOP: Continuously acquire waveforms or stop the acquisition.
4.5.8

AUTOSET

Autoset is one of the most useful modes of the digital oscilloscope. When the AUTO button is pressed,
the oscilloscope will identify the type of waveform (sine or square) and adjust controls according to the
input signal so that it can accurately display the waveform.
Functions
Acquire Mode
Cursor
Display Format
Display Type
Horizontal Position
TIME/DIV
Trigger Coupling
Trigger Holdoff
Trigger Level
Trigger Mode
Trigger Source
Trigger Slope
Trigger Type
Trigger Video Sync
Trigger Video Standard
Vertical Bandwidth
Vertical Coupling
Volts
Adjusts to Normal or Peak Detect
Off
Sets to YT
Sets to Vectors for an FFT spectrum; otherwise, unchanged
Adjusted
Adjusted
Adjusts to DC, Noise Reject, LF Reject or HF Reject
Minimum
Sets to 50%
Auto
Adjusted
Adjusted
Edge
Adjusted
Adjusted
Full
DC (if GND was chosen before); AC for the video signal; otherwise,
unchanged
Adjusted
www.burntec.com
Settings made automatically
