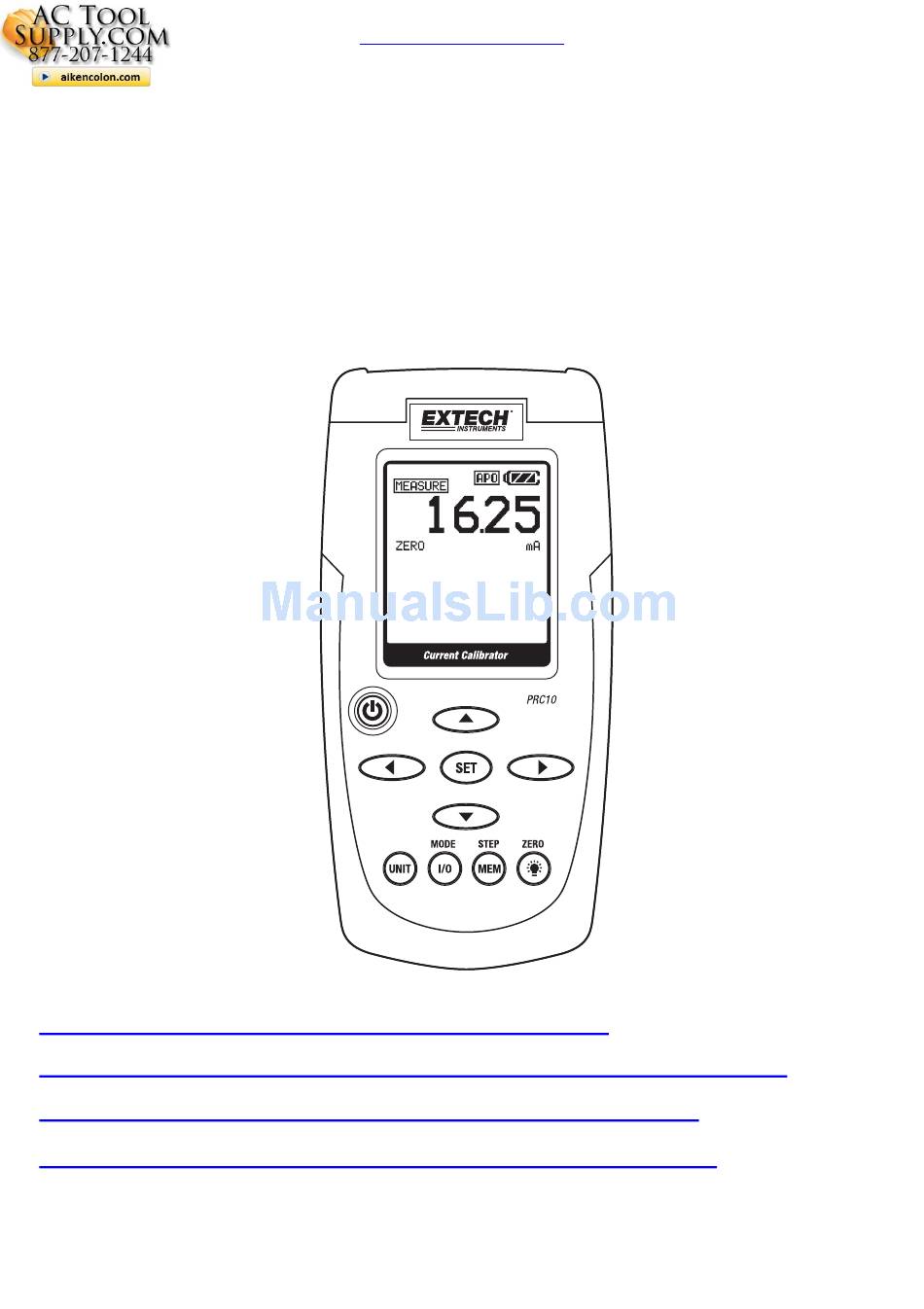

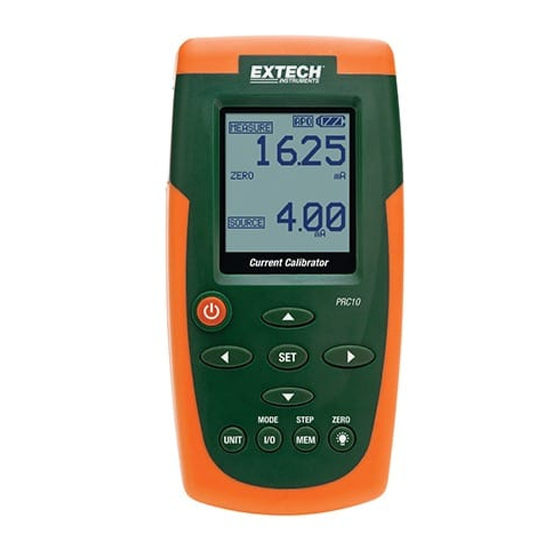

- Page 1 USER GUIDE Current Calibrator Model PRC10 Extech PRC10 Current Calibrator Meter Extech PRC15 Current and Voltage Calibrator Meter Extech PRC20 Multi Thermocouple Calibrator Extech PRC30 Multifunction Process Calibrator actoolsupply.com...
-
Page 2: International Safety Symbols
Introduction Thank you for selecting the Extech Model PRC10. This device is shipped fully tested and calibrated and, with proper use, will provide years of reliable service. Extech Instruments is an ISO-9001 certified company. Safety International Safety Symbols This symbol, adjacent to another symbol or terminal, indicates the user must refer to the manual for further information. -
Page 3: Meter Description
ZERO function status icon MEASURE mode icon Loop Power icon Auto Power OFF active icon Battery status icon Measure mode value Measure mode units icon Datalogger memory location 10. Source mode value 11. Source mode units icon PRC10-EU-EN-V1.2 01.13 actoolsupply.com... - Page 4 Press the ► or ◄ button select a digit for adjustment. The blinking underline curser identifies the digit selected. Press the ▼or ▲button to adjust the value of the digit. Press and Hold the ▼or ▲ button to rapidly adjust the value. PRC10-EU-EN-V1.2 01.13 actoolsupply.com...
- Page 5 Press the SET button to select the memory location to be changed. Press the arrow buttons to adjust to the new value Momentarily press the MEM button to store the value. The memory location icon will blink while the value is being stored. PRC10-EU-EN-V1.2 01.13 actoolsupply.com...
-
Page 6: Modes Of Operation
The upper display indicates the actual current value being sourced. If the upper display does not match the set value, either the batteries need to be replaced or the load impedance is beyond the specified range. PRC10-EU-EN-V1.2 01.13 actoolsupply.com... -
Page 7: Battery Replacement
Please dispose of batteries responsibly; always observe local, state, and federal regulations with regard to battery disposal. Never dispose of batteries in a fire. Batteries may explode or leak. Never mix battery types or old and new batteries. Always install new batteries of the same type. PRC10-EU-EN-V1.2 01.13 actoolsupply.com... -
Page 8: Specifications
Accuracy (% of reading) Measure Current 0 to 50mA (0.01mA) Percent (%) -25% to +230% (0.1%) ± (0.01% + 1 digit) Source Current 0 to 24mA (0.01mA) Percent (%) -25% to +125% (0.1%) Power Loop Power 24 to 30VDC, <50mA PRC10-EU-EN-V1.2 01.13 actoolsupply.com...
