To measure an AC current greater than 600 mA, perform the following:
1) Press the A key; the DC icon appears on the screen. The unit on the main reading screen
is mA.
2) Press F2 key to switch to the 10A measurement mode, the unit on the main reading
screen is A.
3) Press the F1 key once and the AC icon will display on the the screen.
4) Insert the black lead into the COM banana jack input and the red lead into the 10A banana
jack input.
5) Connect the red and black leads to the measured points and the AC current value of the
measured points will be displayed on the screen.
6) Press F2 to return to the 600 mA measurement mode.

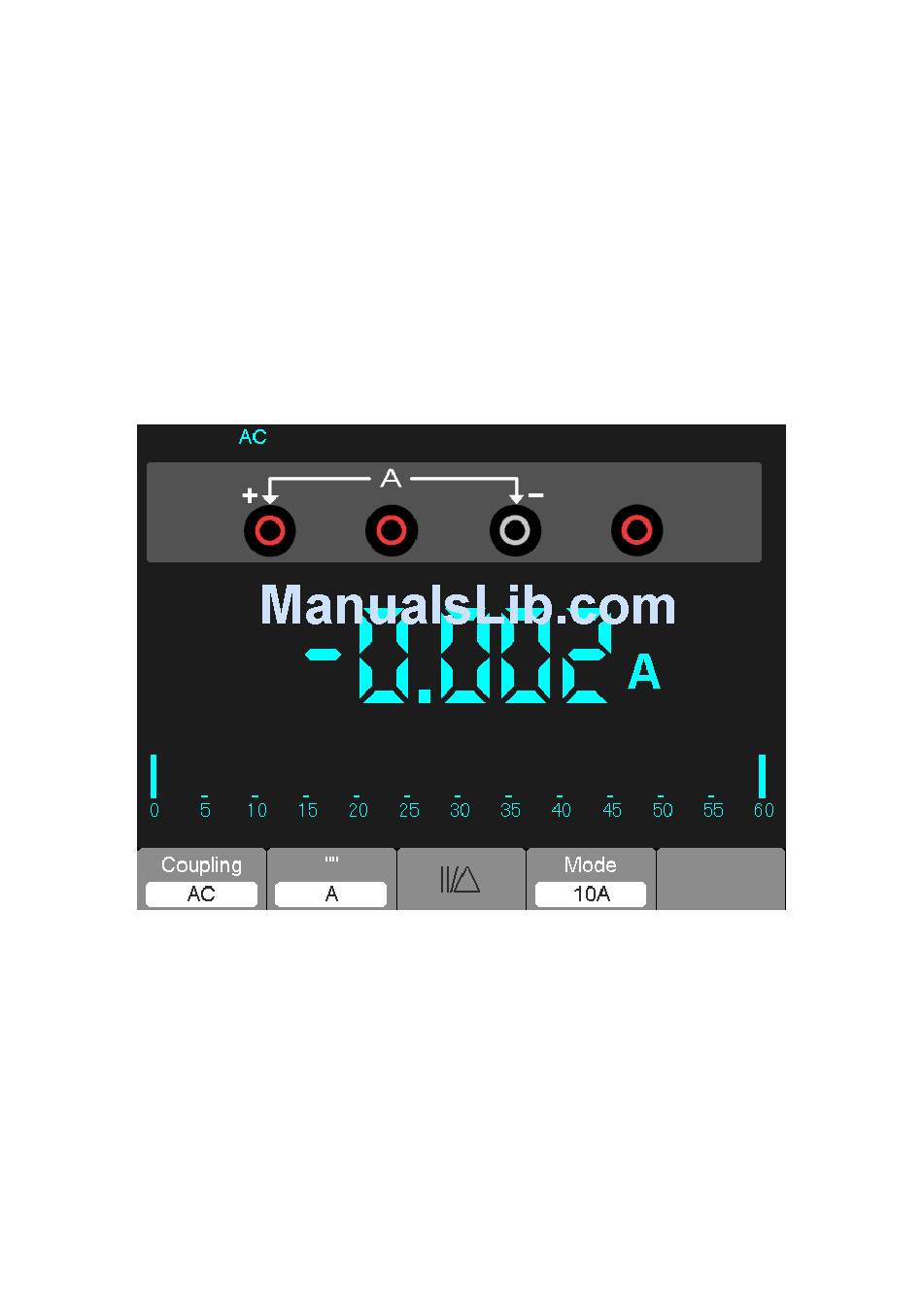

The screen will resemble the image shown in figure 7-11.
Figure 7-11 AC Current Measurement for 10A
www.burntec.com
70
MS6000-EU-EN-V1.3
