Press the Save/Recall button to view the Save/Recall main menu.
Options Settings
SetUp (F2)
Local
Source (F1)
USB
Location (F2) 0 to 9
Save (F3)
Recall (F4)
Back (F5)
Options Settings
CSV (F3)
CH1
Source (F1)
CH2
Close
File List (F2)
Open
Save (F3)
Recall (F4)
Delete (F5)
See below for waveform menus.
At most 9 groups of setups can be stored
Note: The oscilloscope will save the current settings 5 seconds after the last modification, and it
will recall these settings the next time the oscilloscope is powered ON.
Comments
From the main Setup/Recall menu, Press F2 to engage SetUp mode
Store the current setups to the USB disk or the Local internal memory
of the oscilloscope.
Specify the memory location in which to store the current waveform
settings or from which to recall the waveform settings.
Complete the saving operation.
Recall the oscilloscope settings stored in the location selected in the
Setup field.
Returns you to the Save/Recall main menu
Comments
From the main Setup/Recall menu, Press F3 to engage CSV mode
Select a waveform display to store.
Open a file to save the waveform in.
connected in order to save the waveform. Close file after saving.
Complete the saving operation.
Recall the oscilloscope waveform stored in the location selected in the
Setup field. USB device must be attached and contain saved file
Delete the highlighted waveform file from the USB device.

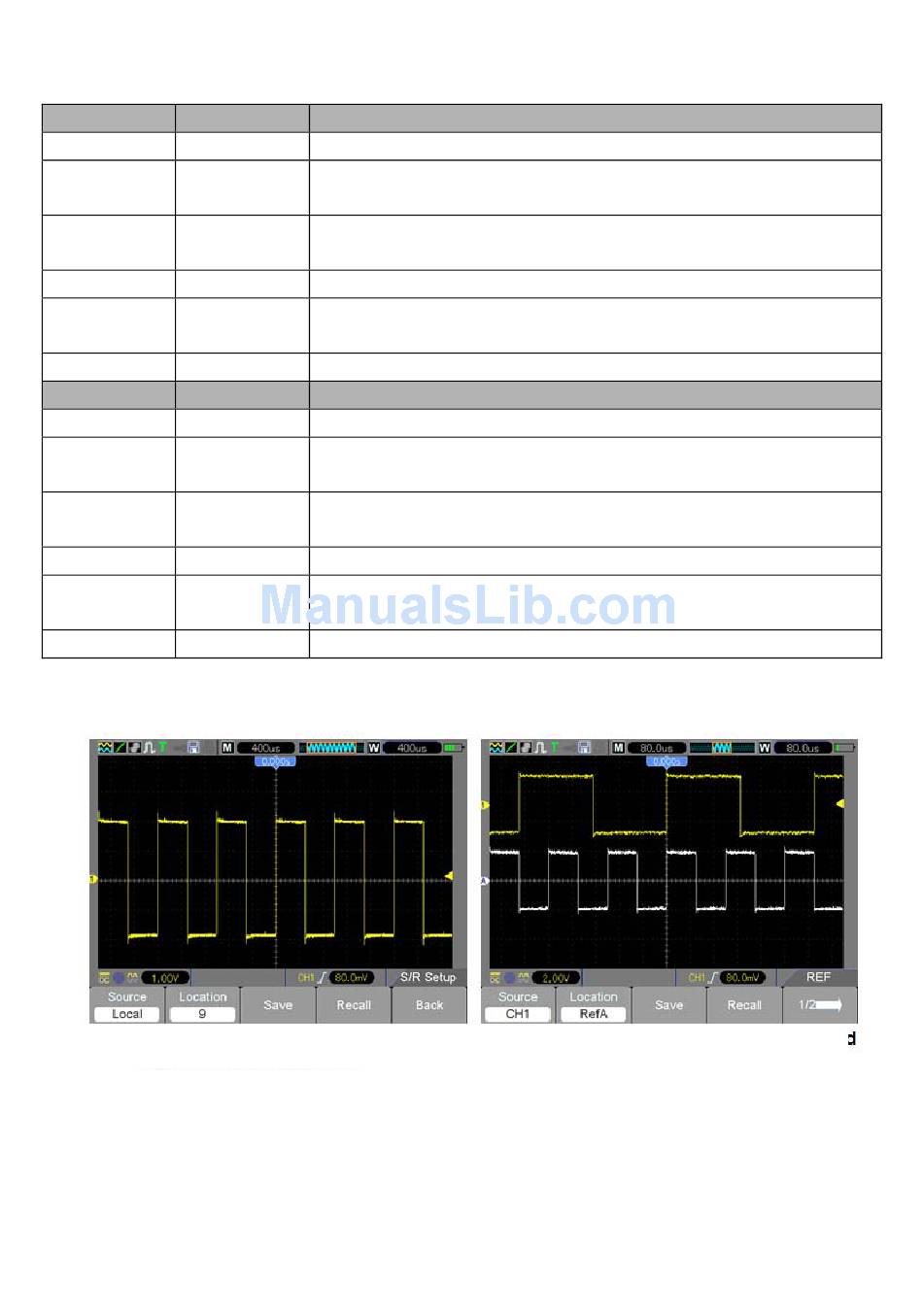

The white waveforms on the menu is the
recall RefA waveform
47
www.burntec.com
A USB device must be
