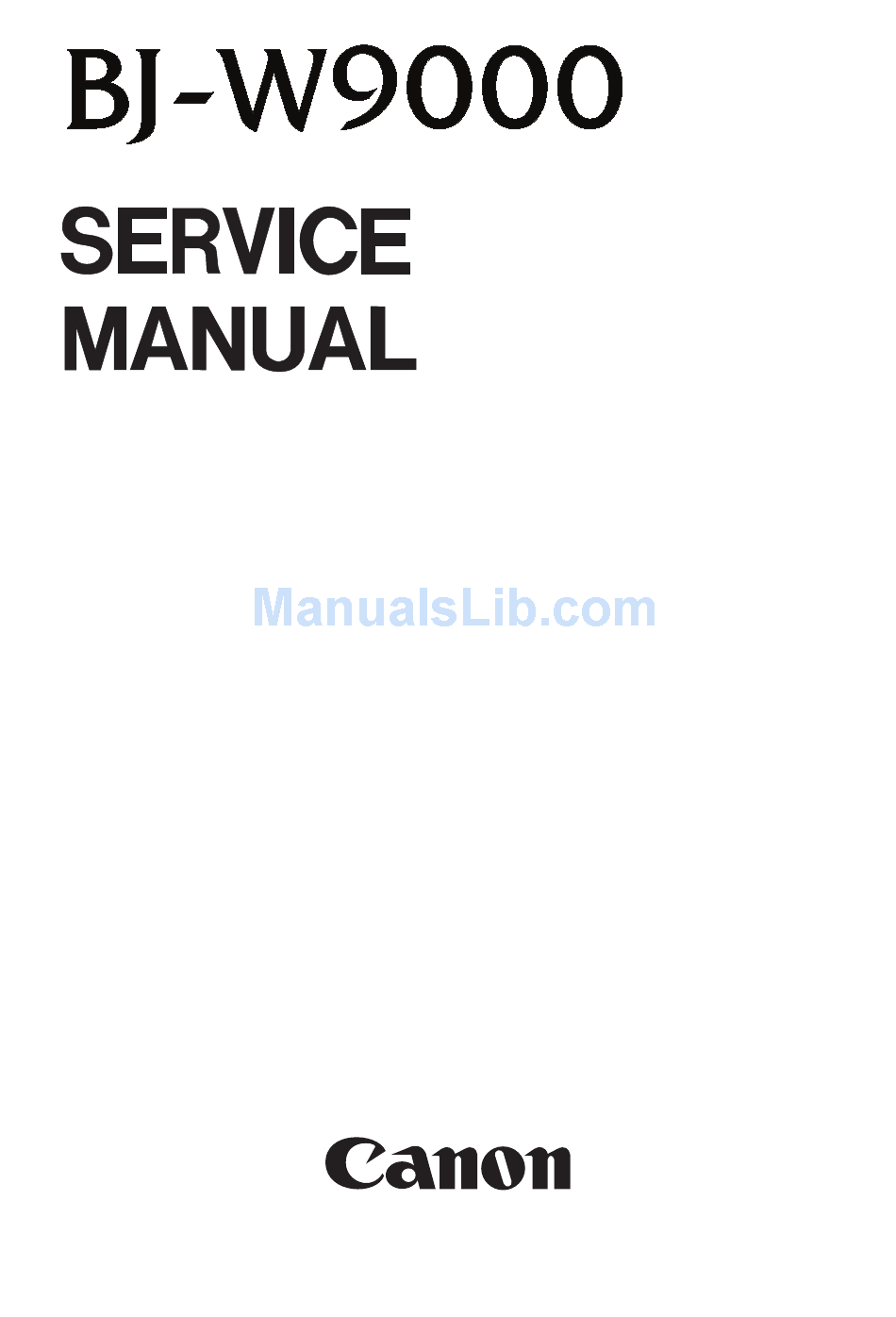

REVISION 0
QY8-1373-000
FEB. 2001
COPYRIGHT © 2001 CANON INC. CANON BJ-W9000 GR 0201 0.35-0 PRINTED IN JAPAN (IMPRIME AU JAPON)

Advertisement

Table of Contents
loading

Related Manuals for Canon BJ-W9000

Summary of Contents for Canon BJ-W9000

  • Page 1 REVISION 0 QY8-1373-000 FEB. 2001 COPYRIGHT © 2001 CANON INC. CANON BJ-W9000 GR 0201 0.35-0 PRINTED IN JAPAN (IMPRIME AU JAPON)
  • Page 2 0201 GR 0.35-0...
  • Page 4 This manual may include technical inaccuracies or typographical errors due to improvements or changes in the products. When amendments are made to the content of this manual, Canon will issue technical information as the need arises. In the event of major alterations to the content of this manual over a long or short period, Canon will publish a revised version of the manual.
  • Page 5 I. ABOUT THIS MANUAL This manual is divided into five parts containing the information required for servicing the BJ-W9000 printer. Part 1: Safety and Precautions This part contains information on how to service the unit safety. It is very important, and must be read.

  • Page 6: Table Of Contents

    I I . TABLE OF CONTENTS Part 1: SAFETY AND PRECAUTIONS Page 1 - 1 1. SAFETY PRECAUTIONS 1 - 1 M oving Parts 1 - 2 1 - 2 1.2.1 Ink passages 1 - 3 1.2.2 Ink mist 1 - 4 Electrical Parts 1 - 5 Size and Weight of the Printer...

  • Page 7: Bj Print Head

    Page 3 - 2 1.1.3 Carriage unit 3 - 3 1.1.4 Internal part 3 - 4 1.1.5 Roll media cassette unit 3 - 5 2. PRINTER SETUP 3 - 5 Installation 3 - 6 2.1.1 Installation environment 3 - 7 2.1.2 Unpacking 3 -10...
  • Page 8 Page 3 -67 5.3.1 Operator call error codes 3 -68 5.3.2 Outline of Warning/Error/Firmware error codes 3 -69 5.3.3 Warning/Error/Firmware error codes 3 -72 5.3.4 Details of errors 3 -82 6. PRINTER SERVICING SOFTWARE 3 -82 Servicing Software Outline 3 -82 6.1.1 System Controller Version Up Software 3 -82...
  • Page 9 Page 4 -28 3.6.1 Functions of Purge unit 4 -31 3.6.2 Construction of Purge Unit 4 -35 Waste ink tank Unit 4 -35 3.7.1 Construction of waste ink tank 4 -36 Air Flow 4 -36 3.8.1 Air Flow 4 -37 Paper Path 4 -37 3.9.1...
  • Page 10 Page 5 -10 5.2.2 Shifting the carriage manually 5 -11 5.2.3 Units needing to be drained of ink 5 -12 5.2.4 Rear lower Cover 5 -12 5.2.5 Top Cover Unit 5 -13 5.2.6 Right Cover/Left Cover 5 -14 5.2.7 Carriage Unit 5 -16 5.2.8 Sub-tank Unit / Purge Unit...
  • Page 11 Page 5 -51 7.2.7 Lever c is unlocked : Lock lever 5 -52 7.2.8 Lever d is unlocked : Lock lever 5 -53 7.2.9 Tray A jam : Remove paper 5 -54 7.2.10 Tray B jam : Remove paper 5 -55 7.2.11 Cut sheet jam : Remove sheet 5 -56...
  • Page 12 Page : Suction cap sensor error Eb104 : Protection cap/wiper up/down sensor error (the wiper in motion) Eb205 : Pump sensor error Eb206 : Pump home position sensor error 5-66 7.3.3 E1630/E1631 : Cover open/close arm sensor error E1640/E164f : Wiper blade sensor error Eb106 : Cover open/close arm sensor error Eb107...
  • Page 13 Page : Paper width warning during automatic print position adjustment W6820 : Automatic print position adjustment warning 5 -71 7.3.10 W2301/W2302 : Spur sensor warning Wb102 : Spur sensor warning 5 -71 7.3.11 E2303/E2304 : Pressure roller sensor error Eb101 : Pressure roller sensor error 5 -72 7.3.12 E2500...
  • Page 14 Page : Operation panel error E9002 : Operation panel error 5 -79 7.3.27 Wb002 : Carriage home position sensor warning 5 -80 7.3.28 Wc000 : Carriage motor current overload error 5 -81 7.3.29 Wc001 : Feed motor current overload error 5 -81 7.3.30 Wc002 : Carriage position timeout warning...

  • Page 15: Spindle

    III. ILLUSTRATION INDEX Part 1: SAFETY AND PRECAUTIONS Page 1 - 1 Figure 1- 1 M oving Parts of the Printer 1 - 2 Figure 1- 2 Ink Passages 1 - 3 Figure 1- 3 Ink Mist 1 - 4 Figure 1- 4 Electrical Parts 1 - 6...
  • Page 16 Page 3 -34 Figure 3- 32 Replacing the BJ Print Head (1/2) 3 -35 Figure 3- 33 Replacing the BJ Print Head (2/2) 3 -36 Figure 3- 34 Replacing the Ink Bottle (1/2) 3 -37 Figure 3- 35 Replacing the Ink Bottle (2/2) 3 -38 Figure 3- 36 Replacing the Waste-Ink Tank (1/2)
  • Page 17 Page 4 -43 Figure 4- 26 Manual Feed Unit 4 -44 Figure 4- 27 Paper Feed Assembly 4 -45 Figure 4- 28 Paper Delivery Assembly 4 -47 Figure 4- 29 Electrical function 4 -48 Figure 4- 30 System Controller 4 -52 Figure 4- 31 Image Process Controller 4 -53...
  • Page 18 Page 5 -17 Figure 5- 14 Placing the sub-tank unit/purge unit 5 -18 Figure 5- 15 Installing the Sub-Tank Unit and Purge Unit 5 -19 Figure 5- 16 Installing the Sub-Tank Unit and Purge Unit 5 -20 Figure 5- 17 Reassembling the Ink Bottle Unit 5 -22 Figure 5- 18...
  • Page 19 I V. TABLE INDEX Part 1: SAFETY PRECAUTIONS Page 1 - 5 Table 1- 1 Typical Heavy Service Parts Part 4: TECHNICAL REFERENCE 4 -10 Table 4- 1 PRINT MODES 4 -27 Table 4- 2 SIGNALS AND PIN NUMBERS OF THE SIGNAL CONTACT POINTS...
  • Page 20 This page is intentionaly left blank...
  • Page 21 Part 1 SAFETY AND PRECAUTIONS Page 1 - 1 1. SAFETY PRECAUTIONS 1 - 1 1.1 Moving Parts 1 - 2 1.2 Ink 1 - 4 1.3 Electrical parts 1 - 5 1.4 Size and Weight of the Printer 1 - 6 2.
  • Page 22 BJ-W9000 Part 1: Safety and Precautions 1. SAFETY PRECAUTIONS 1.1 Moving Parts Be careful not to get your hair, clothes, or accessories caught in the moving parts of the printer. These include the carriage and carriage belt activated by the carriage motor; a caterpillar unit that interlocks with the carriage and protects the ink tube and carriage flexible cable;...
  • Page 23 Part 1: Safety and Precautions BJ-W9000 1.2 Ink 1.2.1 Ink passages Be careful not to touch the ink passages of the printer or to allow ink to stain the workbench, hands, clothes or the printer under repair. The ink flows through the ink bottle unit, sub-tank unit, carriage unit, purge unit, nozzle check unit, waste ink tank unit and the ink tubes that relay ink to each unit.
  • Page 24 BJ-W9000 Part 1: Safety and Precautions 1.2.2 Ink mist Since the BJ print head prints by squirting ink onto the media, a minute amount of ink mist is generated in the printing unit during printing. The ink mist is collected in the printer by the airflow.
  • Page 25 Part 1: Safety and Precautions BJ-W9000 1.3 Electrical Parts Although connected to the AC power supply, the printer is only activated when its power switch is turned on. At the rear of the main unit are the system controller, image process controller, head controller, mechanical controller, motor controller, power supply unit, interface connector, and optional connector.
  • Page 26 BJ-W9000 Part 1: Safety and Precautions 1.4 Size and Weight of the Printer This printer has service parts which are large and heavy. Be careful not to get your fingers caught when carrying the printer or setting down the parts during assembly or disassembly.
  • Page 27 Part 1: Safety and Precautions BJ-W9000 2. OTHER PRECAUTIONS 2.1 BJ print Head 2.1.1 How to handle the BJ print head Do not open the BJ print head package until you are ready to install the head. To install the BJ print head, gently remove the protection cap from the nozzles. Do not replace the protection cap once you have removed it from the BJ print head, since the cap may scratch the nozzles.
  • Page 28 BJ-W9000 Part 1: Safety and Precautions 2.1.2 Capping The printer will perform the capping operation when printing has finished or during standby due to errors, in order to protect the BJ print head and avoid ink leakage. If the AC cable is accidentally unplugged, turn the power switch off, reconnect the AC cable, and turn the power switch on to confirm that the printer starts up properly and changes to the “Ready”...
  • Page 29 Part 1: Safety and Precautions BJ-W9000 2.2 Ink Bottle 2.2.1 Opening the ink bottle Do not open the ink bottle until ready to use. To prevent foreign matter from entering the ink supply unit, install the opened ink bottle immediately.
  • Page 30 BJ-W9000 Part 1: Safety and Precautions 2.3 Handling the Printer 2.3.1 Spur tips Do not bend or damage the spur tips. Although the spur tips contact the printed sheets, the contact surface is small and the quantity of ink is so minor that the printed sheet will not be spoiled. However, if the tip are deformed, more ink will get transferred as the surface contacting the printed sheet becomes larger, and the ink may spoil the sheet, creating dotted lines.
  • Page 31 Part 1: Safety and Precautions BJ-W9000 2.3.2 Precautions against static electricity Certain clothing may generate static electricity, causing an electrical charge to build up on your body. Such a charge can damage electrical devices. In particular, never touch the BJ print head contacts.
  • Page 32 BJ-W9000 Part 1: Safety and Precautions 2.3.3 Fixing the carriage Although the carriage will cap the BJ print head after the completion of printing, it has no mechanical lock. When transporting the printer, use the carriage fixing plate which comes with the printer to fix the carriage at the home position, so as not to allow the carriage to move.
  • Page 33 Part 1: Safety and Precautions BJ-W9000 2.3.4 Installing the printer Place the printer in a horizontal position, and check it using the service level tool. If the printer body is not horizontal, paper-feeding or printing problems may occur. 2.3.5 Replacing the waste ink tank The waste ink tank must be replaced when it becomes full.
  • Page 34 BJ-W9000 Part 1: Safety and Precautions 3. PRECAUTIONS WHEN SERVICING THE PRINTER 3.1 Stored Data This printer counts the number of printed sheets, the number of ink bottle replacements, the number of scans, the number of cleanings, and the cutter usage, and stores this information in the system controller SRAM (IC452).
  • Page 35 Part 1: Safety and Precautions BJ-W9000 3.2 Firmware Confirmation Firmware has been downloaded to each of a System Controller, Carriage Controller and Motor Controller. When replacing each board with the one with Service Parts, confirm that each firmware is the latest version. If it is not the latest version, please update it to the latest version.

  • Page 36: Product Overview

    Part 2 PRODUCT SPECIFICATIONS Page 2 - 1 1. Product Overview 2 - 1 1.1 Product overview 2 - 2 1.2 Features 2 - 3 1.3 BJ print Head 2 - 3 1.4 Ink Bottle 2 - 4 1.5 Waste-ink tank 2 - 4 1.6 Spindle 2 - 5...
  • Page 37 BJ-W9000 Part 2: Product Specifications 1. PRODUCT OVERVIEW 1.1 Product Overview This product is a BJ large format printer which is capable of high-speed, photo-quality printing on large-size paper up to 42 inches wide (B0 size with index lines). This printer comes with a stand, enabling output on roll media in addition to cut paper.
  • Page 38 Part 2: Product Specifications BJ-W9000 1.2 Features • 1200 x 600 dpi high printing resolution. • High-quality photo printing with six color inks (C, M, Y, K, PC, and PM). • High-speed printing by two rows of nozzles for each color, and bi-directional printing control.
  • Page 39 BJ-W9000 Part 2: Product Specifications 1.3 BJ print Head On the carriage, four disposable BJ print heads are installed, each of which contains three rows of integrated nozzles. Each row consists of 256 nozzles, which are arranged in a staggered pattern for printing efficiency.
  • Page 40 Part 2: Product Specifications BJ-W9000 1.5 Waste-Ink Tank The waste-ink tank is capable of holding about 2000ml of waste-ink. Waste-ink is collected from three sources: the purge unit, the maintenance-jet tray, and the nozzle- check unit. Figure 2-4 Waste-Ink Tank 1.6 Spindle...
  • Page 41 BJ-W9000 Part 2: Product Specifications 1.7 Consumables 1.7.1 BJ print head The BJ print head for this printer is a consumable. This consumable BJ print head is the same as the BJ print head shipped with the printer except for its package.
  • Page 42 Part 2: Product Specifications BJ-W9000 2. SPECIFICATIONS 2.1 General Specifications 1. Type Bubble jet printer 2. Feeding system Roll media: Automatic feeding Cut sheet media: Manual setting 3. Feeding capacity Roll media: one for each of the upper/lower cassettes (outer diameter: 130mm or...
  • Page 43 BJ-W9000 Part 2: Product Specifications 10. Printing speed and direction* Mode Image resolution (dpi) Printing direction Speed* Fast (2-pass) 1200 x 600 Bi-directional Approx. 7 minutes Regular (4-pass) 1200 x 600 Bi-directional Approx. 14 minutes Fine (8-pass) 1200 x 600 Bi-directional Approx.
  • Page 44 Part 2: Product Specifications BJ-W9000 15. Detection functions Presence or absence of media: Detectable Width of media: Detectable Skewed feeding: Detectable Roll media remaining amount: Mechanical detecting mechanism: Detectable Trailing edge of roll media: Detectable Carriage position: Detectable Presence or absence of BJ print heads:...
  • Page 45 BJ-W9000 Part 2: Product Specifications 2.2 Interface Specifications 1) Interface format Compliance with SCSI-2 (X3T9.2-1994) 2) Data transfer Up to 10MB/sec. by fast and synchronous mode (FAST SCSI) 8-bit parallel transfer 3) Transmission condition Single-end type (unbalanced type) 4) Interface cable ANSI X3.131-1994(SCSI-2) Fast SCSI...
  • Page 46 Part 2: Product Specifications BJ-W9000 7) Input/output signal description BSY (Busy) Indicates that the SCSI bus is being used. In the Arbitration phase, the signal shows that it requests the use of the bus. SEL (Select) Indicates that the initiator selects its target (Selection phase), or the target reconnects to its initiator (Re-selection phase).
  • Page 47 BJ-W9000 Part 2: Product Specifications 8) Overview of SCSI bus phases Data transfer is performed using the following eight phases: Information-transfer phase Selection phase • Command phase Bus-free phase Arbitration phase Re-selection phase • Data phase • Status phase • Message phase...
  • Page 48 Part 2: Product Specifications BJ-W9000 Message phase (In/Out) Messages containing control information on the protocol are sent. This phase consists of two sub-phases: Message in and Message out depending on the transfer direction. 9) SCSI command set The command set used for this product complies with the SCSI-1 standard (ANSI X3.131-1986) and supports the following commands:...
  • Page 49 BJ-W9000 Part 2: Product Specifications SendLineImage Code: E1H Type: V SendLineImage transfers image data to the printer. This data will be printed in the Data-out phase of this SendLineImage command. One SendLineImage command can send one raster image data at a time. The command completes when all the image data are transmitted.

  • Page 50: Names And Functions Of Components

    Part 3 OPERATING INSTRUCTIONS Page 3 - 1 1. NAMES AND FUNCTIONS OF COMPONENTS 3 - 1 1.1 Names and Functions of Components 3 - 5 2. PRINTER SETUP 3 - 5 2.1 Installation 3 - 23 3. TRANSPORTING THE PRINTER 3 - 23 3.1 Transporting the Printer 3 - 28...

  • Page 51: Front

    BJ-W9000 Part 3: Operations 1. NAMES AND FUNCTIONS OF COMPONENTS 1.1 Names and Functions of Components The names and functions of the printer parts are shown below. 1.1.1 Front Media loadline Upper-right cover Open this cover when Align the right edge of cut...

  • Page 52: Rear

    Part 3: Operations BJ-W9000 BJ-W9000 BJ-W9000 BJ-W9000 1.1.2 Rear Ventilation ports Ground wire connector Openings for keeping the internal Connect the ground wire. parts cool. Power connector SCSI interface connector Connects the power Connects the printer to a cord to an electrical computer or alternatively to an outlet.
  • Page 53 BJ-W9000 Part 3: Operations 1.1.4 Internal part Release lever b Releases the delivery Release lever a unit when fixing a Releases the feeder paper jam. unit when fixing a Ink bottle locking lever paper jam. Locks the ink bottles in Ink bottle position.
  • Page 54 Part 3: Operations BJ-W9000 1.1.5 Roll media cassette unit Spindle Media set lever Fits inside the paper tube and is Allows the user to fix the media edge then installed in the media using the media pressure roller. cassette. Media pressure roller Holds the leading edge of roll media against the guide plate.
  • Page 55 BJ-W9000 PART 3 Operations 2. PRINTER SETUP 2.1 Installation In addition to the printer unit, an accessory kit is needed when installing the printer. The kit also includes regional components. The tools needed for installation are as follows: • Two levels (QY9-0101) •...
  • Page 56 Part 3: Operations BJ-W9000 2.1.1 Installation environment Leave a clear space around the printer to ensure easy operation and maintenance. 1700mm/67" 2010mm/79" 980mm/39" 1000mm 1000mm/39" /39" 1000mm /39" 1000mm/39" Figure 3-7 Space Required for Installation Follow the precautions below when choosing the location.
  • Page 57 BJ-W9000 Part 3: Operations 2.1.2 Unpacking a) Unpacking the printer 1) Open the package and make sure that the items below have been included: Printer main unit Waste-ink tank Spindle Waste-ink tank Ink bottles (one for each of six colors)
  • Page 58 Part 3: Operations BJ-W9000 2) Remove the four stopper plates from the front and the back of the main body (Each stopper plate is fastened with a fixing screw). This allows you to pull out the handles for carrying the printer.
  • Page 59 BJ-W9000 Part 3: Operations 6) Let the printer slide slowly down the ramp. Screw Handle Stopper plate Packing tape around the caster Hole on the ramp Hole on the palette Figure 3-9 Unpacking the Printer (2/2) b) Unpacking the accessory kit...
  • Page 60 Part 3: Operations BJ-W9000 2.1.3 Removing packing materials When the printer has been settled in its place of installation, remove all the packing materials from various parts of the printer. Also, attach the operation panel sheet to the operation unit.
  • Page 61 BJ-W9000 Part 3: Operations 2.1.4 Removing the carriage fixing plate Remove the carriage fixing plate (fastened with one screw) from the carriage. The carriage fixing plate is needed when transporting the printer. Open the lower left cover. remove the waste-inktank, and store the fixing plate for future use at the back of the waste-ink tank box.
  • Page 62 Part 3: Operations BJ-W9000 2.1.5 Connecting the power supply Before turning the printer on, refer to Part 3: 2.1.7 Level Adjustment (Page 3-14) to install the cover switch tool on the switches on the top cover sensor, and install a level on the carriage.
  • Page 63 BJ-W9000 Part 3: Operations 2.1.6 Language Setting This feature allows the user to specify which language should be used for message display. Select from the following six languages: English, French, German, Italian, Spanish and Japanese. When turning the power switch on for the first time after shipping, the "Language setting"...
  • Page 64 Part 3: Operations BJ-W9000 2.1.7 Level adjustment Be sure to perform the level adjustment before using the printer. Move the printer to the exact place of installation before performing the level Adjustment, and do not move it after the adjustment is finished.
  • Page 65 BJ-W9000 Part 3: Operations a) Mounting levels Open the top cover and mount the cover switch tool (QY9-0103) to the top cover sensor. Open the lower-left cover, remove the waste-ink tank, and unfasten the four screws from behind the tank.
  • Page 66 Part 3: Operations BJ-W9000 b) Level adjustment After mounting the levels on the carriage unit, proceed with the next steps to perform the level adjustment. 1) Select the "Level adjustment" menu. Refer to Part 3: 5.1 Installation mode (Page 3-51) Mode to see how to select the menu.
  • Page 67 BJ-W9000 Part 3: Operations 2.1.8 Releasing the check valve A check valve is placed between the ink bottle and the sub-tank, to prevent the back- flow of ink. If the valve remains empty for a long time, the stopper inside may become stuck and may block ink flowing from the ink bottle, stopping it from reaching the sub tank.
  • Page 68 Part 3: Operations BJ-W9000 1) Open the lower-right cover. 2) Make sure that the ink bottle locking lever is up. Raise the lever if it is not. 3) Press down the wire loop of the valve releasing tool (QY9-0111) and wait until the loop comes up to its former position.
  • Page 69 BJ-W9000 Part 3: Operations 2.1.9 Installing the ink bottles Follow the steps below to install the ink bottles. 1) Open the lower-right cover. 2) Open the package containing the ink bottle. 3) Insert the ink bottle, pushing it all the way into the slot.
  • Page 70 Part 3: Operations BJ-W9000 2.1.10 Installing the BJ print heads Follow the steps below to install the BJ print heads. 1) Open the upper-right cover and the BJ print head locking cover. If the locking cover is locked, release and open it (See Figure 3-15 on page 3-15).
  • Page 71 BJ-W9000 Part 3: Operations 2.1.11 Ink filling and date/time settings Ink from the ink bottles is received by the sub-tanks and is then supplied to the print heads via the air buffer. After completing the ink filling procedure, go on to the date/time settings.
  • Page 72 Part 3: Operations BJ-W9000 2.1.14 Connecting the interface cable Use the SCSI interface cable to connect the printer to a computer or to an optional hardware RIP. • Avoid connecting other SCSI devices between the printer and the computer, or print failure may occur.
  • Page 73 BJ-W9000 Part 3: Operations 3. TRANSPORTING THE PRINTER Do not remove the BJ print heads once they are installed, as this may cause the nozzles to dry out or accumulate foreign matter. Also the heads must be capped and stay in the carriage while transporting the printer.
  • Page 74 Part 3: Operations BJ-W9000 3.1.1 Moving the printer on the same floor 1) Open the lower-left cover and remove the waste-ink tank. Remove the carriage fixing plate (fastened by a screw) from inside the tank box. After removing the carriage fixing plate, replace the waste-ink tank and close the lower-left cover.
  • Page 75 BJ-W9000 Part 3: Operations 3.1.2 How to transport the printer to a different floor If the printer has a take-up unit or other optional devices mounted on it, remove these devices and have them packed for transportation. Follow the steps shown in a) When the printer is operating properly.
  • Page 76 Part 3: Operations BJ-W9000 b) When the printer is not operating properly 1) Make sure that the power switch is turned off. 2) Disconnect the interface cable and the power cord (and the ground wire) from the printer. 3) Open the lower-right cover. Raise the ink bottle locking levers and remove all the ink bottles.
  • Page 77 BJ-W9000 Part 3: Operations 3.1.3 Manual capping When transporting the printer, cap the BJ print heads to protect the nozzles from drying out and to keep them clean. Follow the procedures described below: 1) Refer to Part 5: 5.3.1 Cap Open (Page 5-32) and open all caps.
  • Page 78 Part 3: Operations BJ-W9000 3.2 Reinstalling the Printer 3.2.1 Installing the printer on the same floor If ink has not been drained when moving the printer to another place on the same floor, then level adjustment using the levels and operation check - "Head position (auto)"...
  • Page 79 BJ-W9000 Part 3: Operations 4. OPERATION 4.1 User Replacements The print media, the BJ print heads, the ink bottles, and the waste-ink tank can be replaced by the user as required. When it is necessary to replace the ink bottles or the waste-ink tank, a message is shown on the display.
  • Page 80 Part 3: Operations BJ-W9000 4.1.3 How to replace roll media 1) Pull out the roll media cassette until it moves no more. 2) Wind back the media, and then hold both ends of the spindle to remove it from the roll cassette.
  • Page 81 BJ-W9000 Part 3: Operations 7) Pull the media release lever to release the media pressure roller. 8) Unwind the roll media approximately 30cm, let the paper edge pass under the guide plate, and pull it out. Media release lever Media pressure roller...
  • Page 82 Part 3: Operations BJ-W9000 11) Wind back the media by turning the spindle so that the leading edge is properly aligned with the upper edge of the guide plate. Guide plate Figure 3-29 Loading the Roll Media (5/5) Make sure that the leading edge of the loaded media is straight and clean.
  • Page 83 BJ-W9000 Part 3: Operations 4.1.4 Loading cut sheet media 1) Align the right edge of the cut sheet with the media loadline, and insert the sheet into the cut sheet feeding slot. Verify that the print side is facing down.
  • Page 84 Part 3: Operations BJ-W9000 4.1.5 Replacing the BJ print head The printer prints using four BJ print heads. Each print head has three arrays of integrated nozzles. a) When to replace the BJ print head If white stripes become visible in printed graphics, failure in ink ejection due to clogged nozzles is likely.
  • Page 85 BJ-W9000 Part 3: Operations 8) Remove the orange protective cap from the new BJ print head. 9) Install the new BJ print head in the carriage. 10) Lower the BJ print head locking lever to secure the BJ print head in place.
  • Page 86 Part 3: Operations BJ-W9000 4.1.6 Replacing the ink bottle The printer supplies ink from the six separate ink bottles. The user can replace the ink bottles even when the printer is printing. a) When to replace the ink bottle When the printer detects no ink in the ink bottle, the "Out of ink X" message appears on the message display (X = the ink color).
  • Page 87 BJ-W9000 Part 3: Operations 5) Open the package containing the new ink bottle. 6) Hold the grip and push the ink bottle all the way into the slot. 7) Press down the ink bottle locking lever firmly until you feel a click as the ink bottle is locked in position.
  • Page 88 Part 3: Operations BJ-W9000 4.1.7 Replacing the waste-Ink tank The waste-ink tank of the printer is to be replaced by the user. a) When to replace the waste ink tank When the weight of the waste ink tank has exceeded the prescribed value, the sensor will detect the waste ink tank as being full and it will show the "Replace waste ink...
  • Page 89 BJ-W9000 Part 3: Operations 5) Remove the waste-ink tank 6) Install the new waste ink tank and the cap. Install the cap on the cap holder with the back side of the cap being visible, so that the cap is easy to remove.
  • Page 90 Part 3: Operations BJ-W9000 4.2 Operation Panel This subsection describes the function of each key and also what information the printer provides the user by the LED display. Message Cancel Menu Online Paper Feed/Cut key Reverse Feed Paper Feed Enter...
  • Page 91 BJ-W9000 Part 3: Operations 8) Paper Feed key If pressed while "Offline" feeds the media forward so it lies over the platen ready to be printed. If pressed when the media is already fed so as to lie over the platen, the media will be fed continuously as long as the key is down.
  • Page 92 Part 3: Operations BJ-W9000 4.3 Change of Printer Status The chart below illustrates the various states of the printer and how they are changed by means of key operations. Power ON [Cancel] [Initializing] Cancel Yes Initializing (Down arrow key) (Auto)
  • Page 93 BJ-W9000 Part 3: Operations 4.4 User Mode The printer has a User mode which provides the user with access to various adjusting and configuring features, for example: adjusting print position; performing cleaning or other maintenance features; auto-cutting, ink drying period and other print settings;...
  • Page 94 Part 3: Operations BJ-W9000 4.4.2 Map of the user mode The hierarchy of menus and parameters in the User mode is as shown below. Offline Maintenance Check pattern Select paper Media tray A Media tray B Cut sheet Head position (auto)
  • Page 95 BJ-W9000 Part 3: Operations Print setting Language settings Parameter settings Japanese English Francais Deutsch Italiano Espanol Buzzer SCSI ID Initialize Paper settings Select Media tray Coated paper Glossy paper Semi-glassy paper Glossy film Other paper Paper feed setting Coated paper...
  • Page 96 Part 3: Operations BJ-W9000 4.4.3 Details of user mode The details of the User mode menus are shown below. 1) Check pattern This feature allows the user to see if there is any failure in ink ejection or any misalignment of printing position.
  • Page 97 BJ-W9000 Par 3: Operations 2) Head position (auto) The "Head position (auto)" is an automatic print position adjustment feature in which the misalignment is automatically detected and adjusted. The printer automatically adjusts the ink ejection point on all nozzles, when "Head position (auto)"...
  • Page 98 Part 3: Operations BJ-W9000 3) Head position (user) The "Head position (user)," a manual print position adjustment feature manually adjusts misalignment in the ink ejection of each of the nozzle arrays. If outputs are found to be unsatisfactory even after the auto adjustment procedure, select the "Head position (user)"...
  • Page 99 BJ-W9000 Part 3: Operations 5) Replace head Select this menu when replacing the BJ print head. The printer uncaps the print heads and unlocks the BJ print head locking cover, giving the user access to the print heads. 6) Auto cut When this feature is on, the printer cuts the paper automatically at the end of every page when printing on roll media.
  • Page 100 Part 3: Operations BJ-W9000 The factory default settings are as follows. • Autocut: From computer • Ink drying period (page) : No • Ink drying period (scan) : No • Buzzer: On • Paper feed settings: Regardless of media types, 0H (hour) for TR1,5min (minute) for TR2, and Type 1 for Paper end.
  • Page 101 BJ-W9000 Part 3: Operations 5. PRINTER SERVICING FUNCTIONS 5.1 Installation mode The mode for installation and transportation. Use the adjusting and configuring feature when installing and transporting the printer. 5.1.1 Installation mode operation a) How to enter the Installation mode Follow the steps below to enter the Installation mode 1) Switch the printer into the Offline state.
  • Page 102 Part 3: Operations BJ-W9000 5.1.2 Map of the installation mode The hierarchy of menus and parameters in the Installation mode is as shown below. Offline Level adjustment Left Right Center key: End Fill ink key: Back Operating <to the "Set clock" menu>...
  • Page 103 BJ-W9000 Part 3: Operations 5.1.3 Details of installation mode The details of the Installation menus are as shown below. 1) Level adjustment Press a key to move the carriage to the corresponding point of adjustment at the left/right edge or at the center of the printer.(See page 3-14).
  • Page 104 Part 3: Operations BJ-W9000 4) Set clock Configures date and time. If you do not wish to change the current settings in the ""Set date" and "Set time," press the up arrow key with the cursor pointer on "OK." Enter the date...
  • Page 105 BJ-W9000 Part 3: Operations 5.2 Service Mode The mode for servicing the printer. The mode also includes all the menus available in the Installation mode. 5.2.1 Service mode operation a) How to enter the Service mode Follow the steps below to enter the Service mode 1) Turn the printer into the Offline state.
  • Page 106 Part 3: Operations BJ-W9000 5.2.2 Map of the service mode The hierarchy of menus and parameters in the Service mode is as shown below: Offline Level adjustment Fill ink Drain ink Set clock 02 I/O DISPLAY Port P1 = ...
  • Page 107 BJ-W9000 Part 3: Operations (Test Print) Information 1 Coated paper ... sheets (A0) Glossy paper ... sheets (A0) Semi-glossy paper ... sheets (A0) Glossy film ... sheets (A0) ... sheets (A0) Back print film Other paper ... sheets (A0) ... h (hours)
  • Page 108 Part 3: Operations BJ-W9000 5.2.3 Details of service mode The details of the Service mode menus are as shown below. 1) Level adjustment Part 3: 5 .1.3 Details of installation mode (page 3-53). 2) Fill ink Part 3: 5 .1.3 Details of installation mode (page 3-53).
  • Page 109 BJ-W9000 Part 3: Operations Date 2001. 10. 31 17 :21 Version 1 . 01 1 . 00 1 . 01 Print record Via IPC Non IPC Sheets Cutter Times Drive Time Power ON CR Scan 2000 Times Ink consumption amount...
  • Page 110 Part 3: Operations BJ-W9000 Test print 2 describes the following items: (1) Date The date and time when test print 2 was printed. (2) Version Version of the firmware of the system controller, the carriage controller, and the motor controller.
  • Page 111 BJ-W9000 Part 3: Operations The accumulated information for the heads installed on the printer. Shows the total number of times that the head was replaced and the total number of ink drops ejected by each of the nozzle arrays. (13) Cleaning record (times) The number of times head cleaning was executed.
  • Page 112 Part 3: Operations BJ-W9000 8) Information 1 Displays the printer information shown below. Display Contents Coated paper Shows the total number of printed pages (units: sheets). Glossy paper The number of printed pages, based on the total area of A0- Semi-glossy paper sized paper (including the white area).
  • Page 113 BJ-W9000 Part 3: Operations 10) Information 3 Displays the printer information as shown below: Display Contents Carriage (X100) The total number of carriage scans (X100 *). Counts travel in both directions (that is, 2 counts for a round trip). Resets to 0 when the count exceeds 9,999,999.
  • Page 114 Part 3: Operations BJ-W9000 12) Initialize Resets the data in the Service mode. Also restores the default settings of the User mode. Display Contents Carriage Resets "Carriage (X100)" (Information 3). Cutter usage Resets "Cutter usage" (Information 3). Cleaning Resets "Cleaning 1 All, Y, M, C" and "Cleaning 2 K, PC, PM"...
  • Page 115 BJ-W9000 Part 3: Operations Do not specify the setting "No" when the ink passages are filled. Executing the "Status of ink" menu in this state will supply more ink than necessary CAUTION to the sub-tank, which may result in ink spillage.
  • Page 116 Part 3: Operations BJ-W9000 5.3 Error Indications The printer alerts the user by the message display and the LEDs which allow the user to identify the nature of any errors. It also details the printer situation on the status monitor screen of the printer driver, when an operator call error has occurred during a print job.
  • Page 117 BJ-W9000 Part 3: Operations 5.3.1 Operator call error codes Cord Message on display Maintenance NO. 1101 Top cover is open: Close cover 7.2.1 1102 Upper right cover open: Close cover 7.2.2 1103 Front cover is open: Close cover 7.2.3 1104 Tray A is open: Close tray 7.2.4...
  • Page 118 Part 3: Operations BJ-W9000 5.3.2 Outline of Warning/Error/Firmware error codes Codes* Detected point X1xxx Ink supply/purge system X2xxx Feeding system X3xxx System controller X5xxx Internal serial communication system X6xxx Image processing controller X68xx Print-position sensor system X7xxx BJ print head system...
  • Page 119 BJ-W9000 Part 3: Operations 5.3.3 Warning/Error/Firmware error codes Codes Description Maintenance No.* E1301 Closed sub-tank - open sub-tank ink flow time-out 7.3.1 E1303 E1305 E1311 Closed sub-tank - open sub-tank ink flow error 7.3.1 E1312 E1313 E1314 E1315 E1316 E1321 Closed sub-tank - open sub-tank ink flow error 7.3.1...
  • Page 120 Part 3: Operations BJ-W9000 Code Description Maintenance No.* E16a0 Pump valve sensor error 7.3.4 E16a5 E16a6 E16a7 E1701 Ink bottle unit ink leakage 7.3.6 E1702 Waste-ink bottle unit ink leakage 7.3.7 E1801 Ink drain error 7.3.8 W2102 Print-position sensor calibration warning 7.3.9...
  • Page 121 BJ-W9000 Part 3: Operations Code Description Maintenance No.* W7801 BJ print head set warning 7.3.20 E8002 Print-position information error 7.3.22 E8003 Remaining print data error 7.3.23 E8006 Band memory error 7.3.24 E8007 E8009 Head temperature sensor error 7.3.19 E800d Head temperature sensor error 7.3.19...
  • Page 122 Part 3: Operations BJ-W9000 5.3.4 Details of errors a) Details of operator call errors 1) Top cover is open: Close cover The top cover sensor detected the top cover open. 2) Upper right cover open: Close cover The upper right cover sensor detected the upper right cover open.
  • Page 123 BJ-W9000 Part 3: Operations 12) Cannot feed from tray A: Reset paper The cassette A feed sensor did not detect the paper within the predefined time period. During the feed operation from cassette A, the skew sensor of the print position sensor detected paper skew.
  • Page 124 Part 3: Operations BJ-W9000 b) Details of warnings/errors/firmware errors 1) E1301/E1303/E1305 Close sub-tank - open sub-tank ink flow time-out The prescribed ink level was not detected within the prescribed time in the ink-flow sequence between the closed sub-tank and the open sub-tank.
  • Page 125 BJ-W9000 Part 3: Operations 11) E1670/E1675 Y/PC/PM air valve sensor error The Y/PC/PM air valve sensor failed to detect the reference position (the position where the sensor light passes through) within the prescribed time. 12) E1680/E1685 C/M/K air valve sensor error The C/M/K air valve sensor failed to detect the reference position (the position where the sensor light passes through) within the prescribed time.
  • Page 126 Part 3: Operations BJ-W9000 22) W2301/W2302 Spur sensor warning The spur sensor failed to detect the spur unit as being open/close within the prescribed time. 23) E2303/E2304 Pressure roller sensor error The pressure roller sensor failed to detect the pressure roller unit as being open/close within the prescribed time.
  • Page 127 BJ-W9000 Part 3: Operations 34) W6810 Paper width warning during automatic print position adjustment Paper width error was detected during the head position adjustment (automatic) process. 35) W6820 Automatic printing position adjustment warning Head position adjustment (automatic) was not performed correctly.
  • Page 128 Part 3: Operations BJ-W9000 43) E8009 Head temperature sensor error Abnormally high temperature in the BJ print head has not cooled down within the prescribed time. 44) E800d Head temperature sensor error The printer failed to keep the BJ print head temperature within the prescribed range so as to become ready to print.
  • Page 129 BJ-W9000 Part 3: Operations 54) Wb102 Spur sensor warning The spur sensor failed to detect the reference position (the position where the sensor light passes through) within the prescribed time, when power was turned on 55) Eb103 Suction cap sensor error The suction cap sensor failed to detect the reference position (the position where the sensor light passes through) within the prescribed time, when power was turned on.
  • Page 130 Part 3: Operations BJ-W9000 64) Eb205 Pump sensor error The pump sensor failed to detect the reference position (the position where the sensor light passes through) within the prescribed time, when power was turned on. 63) Eb206 Pump home position sensor error...
  • Page 131 BJ-W9000 Part 3: Operations This page intentionally left blank. 3-81...
  • Page 132 Part 3: Operations BJ-W9000 6 PRINTER SERVICING SOFTWARE 6.1 Servicing Software Outline By using the service tools, this printer is capable of upgrading the firmware of three of its mounted controllers. Also, these service tools help obtain various printer information.
  • Page 133 BJ-W9000 Part 3: Operations 6.2 System Controller Version Up Software Figure 3-53 System Controller Version Up Tool This is the service software tool that operates with the SCSI interface. It has the following four functions. 6.2.1 Confirmation of Firmware Version Obtains and confirms the printer’s current firmware version (System Controller, Motor...
  • Page 134 Part 3: Operations BJ-W9000 6.2.3 Downloading/Uploading the Counter Information Downloads/Uploads counter information such as the number of pages printed, cleaning records, and print head replacement history. When replacing the board during servicing, first store the counter information on the host computer using this tool.
  • Page 135 BJ-W9000 Part 3: Operations 6.3 CR/MT Controller Version Up Software By using the upgrading tool (QY9-0114), it is possible to upgrade the firmware of the Carriage/Motor Controller. These boards can be upgraded when not only installed in the printer, but also independently.
  • Page 136 Part 3: Operations BJ-W9000 When upgrading the board installed in printer (ex. Carriage controller version up) J814 Carriage Controller Version Up Connector CR/MT Controller VersionUp Tool LOAD POWER STOP/START CR/MT CONTROLLER VERSION UP TOOL for PC PRINTER RS-232C For CR Board J814...
  • Page 137 BJ-W9000 Part 3: Operations 6.4 Troubleshooting Software This service software tool operates with the SCSI interface to assist in troubleshooting. This tool monitors the current status of the external cover sensor of the printer, various sensors on the paper path, other sensors and the remaining amount of ink in the sub- tank in real-time.

  • Page 138: Technical Reference

    Part 4 TECHNICAL REFERENCE Page Page 4 - 1 1. Overview 4 - 18 3.2 Ink Bottle Unit 4 - 1 1.1 Printer Block Diagram 4 - 20 3.3 Sub Tank Unit 4 - 2 1.2 Print Signal Sequence 4 - 22 3.4 Carriage Unit 4 - 6 1.3 Print Drive...

  • Page 139: Printer Block Diagram

    BJ-W9000 Part 4: Technical Reference 1. OVERVIEW 1.1 Printer Block Diagram Figure 4-1 is a block diagram of the printer. J2026 J2025 J2110 J2011 J2031 J2032 J2039 J2049 J2047 J2048 J2053 J2060 J2064 To feed motor J2078 J2101 J834 J2104...
  • Page 140 Part 4: Technical Reference BJ-W9000 1.2 Print Signal Sequence Figure 4-2 illustrates the signal sequence performed in the printer from when it receives the print signals until printing starts. Host computer Optional Hardware RIP Printer etc. driver a' a' a'...
  • Page 141 BJ-W9000 Part 4: Technical Reference a) The printer driver in the host PC sends print data to the printer after it has completed the image resolution conversion process. However, color and binary conversion processes are not performed at this stage.
  • Page 142 Part 4: Technical Reference BJ-W9000 g) The system controller sends the image data contained in the output buffer to the band memory in the head controller. This occurs when the image data request signal is issued by the head controller upon the completion of the current scan (the horizontal travel of the carriage).
  • Page 143 BJ-W9000 Part 4: Technical Reference This page intentionally left blank.
  • Page 144 Part 4: Technical Reference BJ-W9000 1.3 Print Driving With this printer, the carriage controller sends the print signals and control signals to the BJ print heads. Using these signals, the print heads perform printing operations by ejecting ink from the nozzles integrated with the heads.
  • Page 145 BJ-W9000 Part 4: Technical Reference 1.3.2 Print Drive Timing Each BJ print head has three nozzle arrays (A, B and C) on it, all of which use three types of signals: the data transfer clock (CLK), data latch pulse (LATCH), and block enable (BE 0, 1, 2 and 3).
  • Page 146 Part 4: Technical Reference BJ-W9000 2. FIRMWARE 2.1 Power On/Off 2.1.1 Power On Figure 4-5 shows the initial flow chart depicting the initialization sequence that takes place when the power is turned on and before the printer enters the online state.
  • Page 147 BJ-W9000 Part 4: Technical Reference 2.2 Power Off Turning the power switch off will cut off all the current/voltage provided by the power source. Therefore, no electrical or mechanical operations such as a power-off sequence by firmware are performed. During operations, all the current processes of the printer terminate if the...
  • Page 148 Part 4: Technical Reference BJ-W9000 2.3 Print Control 2.3.1 Print Mode This printer is capable of fast, high-quality output printing without blurs and inconsistent ink-density distribution. The print mode is determined not only by defined settings, such as the paper type and print quality, but also by the print data.
  • Page 149 BJ-W9000 Part 4: Technical Reference Carriage unit Left heads Right heads BJ Print Head A BJ Print Head B BJ Print Head C BJ Print Head D Nozzle Nozzle Nozzle Nozzle Nozzle Nozzle Nozzle Nozzle Nozzle Nozzle Nozzle Nozzle array...
  • Page 150 Part 4: Technical Reference BJ-W9000 2.4.2 Manual Print Position Adjustment This printer is also capable of allowing manual adjustment of the vertical/horizontal positions of the four BJ print heads installed on the carriage, and correcting any print position discrepancies between the printouts in both the forward printing and reverse printing modes/ during both forward and reverse printing operations.
  • Page 151 BJ-W9000 Part 4: Technical Reference 2.6 Excessive Temperature Protection Control of the BJ Print Head This printer provides an excessive temperature protection control function, which detects unusually high temperature states of the BJ print head(s). This high temperature state occurs, for example, when the printing process continues for some time with no ink supplied to the print head.
  • Page 152 Part 4: Technical Reference BJ-W9000 2.8 Pause between Scans This printer has Pause between Scans function which temporarily stops the current printing operation for a specified time so allowing the ink to dry and fix on the sheet. The user can define this Wait time through the operation panel. This Pause between Scans function is useful when printing using a printing paper that needs time to dry out, for example film-type printing sheets.
  • Page 153 BJ-W9000 Part 4: Technical Reference 3. PRINTER'S MECHANICAL SYSTEM The printer is comprised of two major working components: the ink passage and the paper path. The ink passage consists of sub components including the ink bottles, the sub tanks, carriage (in which the air buffer and the BJ print heads are installed), the purge unit, and the waste ink tank, all of which implement the supply, circulation and suction/removal of the ink.
  • Page 154 Part 4: Technical Reference BJ-W9000 3.1 Ink Passage 3.1.1 Overview of the Ink Passage The ink passage subsystem is made up of the ink bottle, sub tank, air buffer, BJ print heads, cap, maintenance jet receive receptacle, waste-ink repository, waste-ink tank,...
  • Page 155 BJ-W9000 Part 4: Technical Reference a) Ink Supply from Ink Bottle to Sub Tank The ink bottle contains ink which is supplied to the BJ print head. The printer has two types of sub tanks: the closed sub tank, which allows for the ink bottle to be replaced during the printing operation;...
  • Page 156 Part 4: Technical Reference BJ-W900 3.2 Ink Bottle Unit 3.2.1 Construction of Ink Bottle a) Ink bottle Each of the six ink bottles for six different colors contains about 650ml of ink (factory default). When the sub tank ink sensor consistently cannot detect ink, although the ink supply to the sub tank is being attempted, the sensor indicates that ink is out.
  • Page 157 BJ-W9000 Part 4: Technical Reference e) Check valve The check valve on the ink tube, connecting the ink bottle and the sub tank, prevents the ink leakage from the tube during ink bottle replacement. f) Ink leakage detector The ink leakage detector is at the bottom of the rear of the unit. It detects leakage in the printer through the conductivity of ink.
  • Page 158 Part 4: Technical Reference BJ-W9000 3.3 Sub Tank Unit 3.3.1 Construction of Sub Tank a) Open sub tank The printer provides six open sub tanks for each of the six color inks. With all sub tanks, the inside pressure is equal to atmosphere pressure. These open sub tanks hold a given amount of ink in order to maintain the fluid level difference in the nozzles of the BJ print head.
  • Page 159 BJ-W9000 Part 4: Technical Reference e) Air valve, A-C valve and C-S valve The tubes for air flow or ink flow are closed by pinching (clipping) to prepare the required ink passage for printing. f) Sensors for Detecting In the sub tank assembly, sensors to detect the status of the various components are installed.
  • Page 160 Part 4: Technical Reference BJ-W9000 3.4 Carriage Unit 3.4.1 Functions of Carriage Unit a) BJ print heads The four BJ print heads are mounted and locked by lever on the carriage. The BJ print heads are connected to the carriage controller with flexible cables.
  • Page 161 BJ-W9000 Part 4: Technical Reference 3.4.2 Construction of Carriage a) Components associated with BJ print heads mount The four BJ print heads can be mounted to the carriage by pressing the BJ print head locking lever. When the heads have been fixed securely, the signal interface of the carriage flexible cable extended from the carriage controller contacts the signal interface of the BJ print heads.
  • Page 162 Part 4: Technical Reference BJ-W9000 c) Components associated with control The carriage controller interfaces with the head controller and the BJ print heads through the flexible cables. The flexible cable between the carriage controller and the head controller is attached to the frame-shaped caterpillar, which moves with the carriage movement.
  • Page 163 BJ-W9000 Part 4: Technical Reference e) Components associated with maintenance for the BJ print heads This printer performs cleaning operations of the BJ print heads by moving the carriage. Cleaning operations include wiping, maintenance jet, and suction. With wiping, the four BJ print heads are wiped while the carriage is moving forward at a...
  • Page 164 Part 4: Technical Reference BJ-W9000 3.5 BJ Print Head 3.5.1 Construction of BJ Print Head A BJ print head has three nozzle arrays. Each nozzle array can be controlled individually, resulting in a three-color ink ejecting action. a) Nozzle arrays Each nozzle array provides 256 nozzles arranged in a two-column, staggered pattern.
  • Page 165 BJ-W9000 Part 4: Technical Reference c) Signal contact points The signal contact (junction) points on the BJ print head connect to the signal contact points of the carriage. Through this interface, the signal and other information are sent from the carriage controller to the nozzle assembly.
  • Page 166 Part 4: Technical Reference BJ-W9000 3.6 Purge Unit 3.6.1 Functions of Purge unit The purge unit through maintenance of the nozzles of the BJ print heads. The purge unit functions includes capping, cleaning, and ink supply. a) Capping The capping feature prevents the nozzles from drying up or dust by applying the cap of the purge unit to the nozzle face of the BJ print head.
  • Page 167 BJ-W9000 Part 4: Technical Reference Condition/state of Heads/nozzle arrays Ink consumption the printer to be cleaned (approx. g) The first printing operation after at All nozzle arrays least 12 hours have elapsed since the last printing. The first printing operation after at All nozzle arrays 0.85...
  • Page 168 Part 4: Technical Reference BJ-W9000 c) Ink supply The ink supply pump of the purge assembly works with the valves to deliver the ink in the ink bottle to the BJ print heads. d) Print position sensor cover open/close The print position sensor cover is opened or closed by the up/down operations of the cover open/close arm as required, with the position control of the carriage.
  • Page 169 BJ-W9000 Part 4: Technical Reference 3.6.2 Construction of Purge Unit a) Caps The nozzle arrays on the BJ print heads are capped during the capping and cleaning operations. The rubber portion of the cap touches the face plate of the nozzle array.
  • Page 170 Part 4: Technical Reference BJ-W9000 b) Wipers The wipers are operated by the wiper motor to perform wiping operations for the nozzle arrays of the BJ print heads. To improve wiping performance, three pairs of wiper blades (consisting of a wide blade and a narrow blade) there are.
  • Page 171 BJ-W9000 Part 4: Technical Reference c) Pumps The printer is equipped with several pumps. They are the tube pumps that let the ink flow by pressing the tube surface with the push rollers to produce negative pressure in the tube. The four rollers sequentially press a tube, allowing for a flexible volume control of the ink that is supplied or sucked.
  • Page 172 Part 4: Technical Reference BJ-W9000 d) Sensors for Detecting In the purge unit, there are sensors to detect the status of various components. For more information, see Part 4: 5. DETECTION FUNCTIONALITY (page 4-62). 4-34...
  • Page 173 BJ-W9000 Part 4: Technical Reference 3.7 Waste ink tank Unit 3.7.1 Construction of waste ink tank a) Waste ink tank The waste-ink tank can contain a maximum of about 2000ml of waste-ink. The waste ink tank locking lever can be lowered only when the waste ink tank has been fully inserted.
  • Page 174 Part 4: Technical Reference BJ-W9000 3.8 Air Flow 3.8.1 Air Flow During the printing operation, some ink mist, generated by the ink ejecting or ink rebounding from the paper surface, may float inside the unit. The ink mist is collected to the ink mist absorber through the air flow streams in the unit.
  • Page 175 BJ-W9000 Part 4: Technical Reference 3.9 Paper Path 3.9.1 Overview of Paper Path The components that constitute the paper path include: cassette A (upper), cassette B (lower), the manual feed unit, conveyer/paper delivery segments, the feed roller motor that drives all components except the pressure rollers and the cutter, and the sensors that detect the paper.
  • Page 176 Part 4: Technical Reference BJ-W9000 a) Cassette A feed/cassette B feed The paper feed command sent from cassette A or B activates, normal rotation of the feed roller motor. The spur unit and the pressure roller unit are released to prevent the paper from coming off the paper path route.
  • Page 177 BJ-W9000 Part 4: Technical Reference c) Paper delivery If CUTTER ON (Auto cut: Yes ) is selected for roll media, the paper is conveyed up to the cutting position and cut with the cutter. Then the paper is carried approx.
  • Page 178 Part 4: Technical Reference BJ-W9000 In the paper delivery mode (recommended roll media): During the delivery operation, when the cassette A (or B) pick up sensor detects the rear end of the paper, the roll paper on the platen is ejected instead of being rewound to the cassette.
  • Page 179 BJ-W9000 Part 4: Technical Reference Cassette A / B paper pick up roller trace preventive sequence Because the cassette A / B paper pick up rollers may produce traces or marks on the roll paper if the paper resides on the cassette for some time, the following preventive sequence is performed.
  • Page 180 Part 4: Technical Reference BJ-W9000 3.10 Construction of Paper Path 3.10.1 Construction of Cassette A and B a) Components associated with roll paper feeding Each cassette, A (upper) and B (lower) can contain one roll paper media using the spindle. The installed roll paper is fed by the roll drive unit which is driven by the feed motor by means of the drive belt.
  • Page 181 BJ-W9000 Part 4: Technical Reference 3.10.2 Construction of Manual Feed Unit a) Components associated with the manual feed unit Cut paper can be loaded on the manual feed unit a sheet at a time. When both the manual set sensor and the manual paper end sensor detect that a cut sheet has been loaded, the feed motor starts to feed it.
  • Page 182 Part 4: Technical Reference BJ-W9000 3.10.3 Construction of Paper Feed Assembly a) Components associated with the paper feed assembly The paper feed assembly consists of: the components to support the paper path including the paper guide and platen; and the components relating to the paper feeding function including the roll paper feed rollers driven by the feed motor, feed rollers, and pressure roller unit.
  • Page 183 BJ-W9000 Part 4: Technical Reference 3.10.4 Paper Delivery Assembly Structure a) Components associated with paper delivery Printed paper is discharged from the printer by the feed motor-driven eject roller and the spur unit. The spurs of the spur unit are arranged in a staggered configuration to prevent paper curvature.
  • Page 184 Part 4: Technical Reference BJ-W9000 4. ELECTRICAL COMPONENTS 4.1 Overview Electrical components in the printer consist of the following: the system controller, the image process controller, the head controller, the mech. controller, the motor controller, and the power supply, all of which are mounted at the rear of the printer; the carriage controller and the BJ print heads, which are located on the carriage unit;...
  • Page 185 BJ-W9000 Part 4: Technical Reference I/F connector Ass'y Host computer Operation Operation panel panel control Interface control Head controller Print data generation function Printing data control every 12 nozzle arrays Printer mechanism control Carriage unit System controller BJ print head control...
  • Page 186 Part 4: Technical Reference BJ-W9000 4.2 System Controller 4.2.1 Components of System Controller System controller GA LED (LED401) J411 J410 J407 Button SW (SW571) J408 J409 Line memory DRAM EPROM SRAM System controller PLD FLASH ROM LED (LED571) LED (LED572-LED578)
  • Page 187 BJ-W9000 Part 4: Technical Reference Timer Generates the clock signals used by the purge motor, the wiper motor, and the valve motor. The generated signals are sent to the system controller GA. Serial I/O The serial I/O supports serial communication between the carriage controller and the motor controllers.
  • Page 188 Part 4: Technical Reference BJ-W9000 c) System controller PLD (IC541) Input/output port control The system controller PLD controls the location where the print data, sent from the SCSI controller, is stored. Line memory control The system controller PLD switches the operation performed by each of the two SRAMs (contains a maximum of 64Kbyte print data), from read to write (one SRAM) and from write to read (the other SRAM) as required.
  • Page 189 BJ-W9000 Part 4: Technical Reference j) RTC (IC403) The RTC (real time clock) uses the backup lithium battery after power-off of the printer to provide the clock information required for the time-based functions such as cleaning. k) Battery (BAT451) The SRAMs and the RTC are powered by this backup battery. Backup battery life is about 6.3 years.
  • Page 190 Part 4: Technical Reference BJ-W9000 4.3 Image Process Controller 4.3.1 Components of Image Process Controller FLASH ROM J1502 J1501 IPC GA2 IPC GA3 IPC GA4 IPC GA1 SRAM FIFO FIFO Figure 4-31 Image Process Controller a) Image process controller GA1, GA2, GA3, and GA4 (IC1531, IC1551, IC1571,...
  • Page 191 BJ-W9000 Part 4: Technical Reference 4.4 Head Controller 4.4.1 Components of Head Controller Band memory Head controller GA3 SRAM J209 J210 J202 SRAM Band memory Band memory SRAM Head controller GA1 Head controller GA2 Figure 4-32 Head Controller a) Head controller GA1, GA2, GA3 (IC203, IC207, and IC211)
  • Page 192 Part 4: Technical Reference BJ-W9000 4.5 Carriage Controller 4.5.1 Components of Carriage Controller LED (LED802) LED (LED803) LED (LED801) Carriage controller GA D/A converter J814 J813 J806 J807 J808 J809 ASIC(IC823) ASIC(IC824) Figure 4-33 Carriage Controller a) CPU (IC814) The CPU with its internal 8bits bus operates in sync with the 16MHz external clock.
  • Page 193 BJ-W9000 Part 4: Technical Reference b) Carriage controller GA (IC816) BJ print head controller The BJ print head controller sends image data (print signals) in the format of serial data to each of the nozzle arrays of the BJ print heads. Also sends the nozzle block selection signal to the BJ print heads.
  • Page 194 Part 4: Technical Reference BJ-W9000 4.6 Mech. controller 4.6.1 Mech. controller Components Driver IC (IC616) Operational amplifier LED (LED601) LED (LED604) LED (LED603) Motor driver (IC606) I/O IC (IC607) LED (LED602) Motor driver (IC605) Driver IC (IC614) Motor driver (IC604) I/O IC (IC611) Figure 4-34 Mech.
  • Page 195 BJ-W9000 Part 4: Technical Reference g) LED (LED601) This LED turns green when +5V for communicating with the sensors is being supplied to the mech. controller. h) LED (LED602) This LED turns red when the overcurrent is supplied to the cutter motor.
  • Page 196 Part 4: Technical Reference BJ-W9000 4.7 Motor Controller 4.7.1 Components of Motor Controller Carriage motor driver LED (LED1205) Feed motor driver LED (LED1204) LED (LED1200) Motor controller GA EEPROM LED (LED1201) J1202 J1203 Relay LED (LED1202) LED (LED1203) Figure 4-35 Motor Controller...
  • Page 197 BJ-W9000 Part 4: Technical Reference b) Motor controller GA (IC1210) Interface controller Controls the interface with the CPU. Encoder counter The encoder value, which the encoder mounted on the carriage unit reads from the linear scale, and the rotary encoder value of the feed roller motor are counted and handled by this encoder counter.
  • Page 198 Part 4: Technical Reference BJ-W9000 4.8 Power Supply 4.8.1 Power Supply Block Diagram AC inlet 100V - 240V Mecha controller Power on/off ACTON VH-ON switch Carriage controller Remote sensing Voltage Regulator Active filter +10.3V (24V/10.3V) generation circuit +24V Voltage (5V)
  • Page 199 BJ-W9000 Part 4: Technical Reference This page intentionally left blank. 4-61...
  • Page 200 Part 4: Technical Reference BJ-W9000 5. DETECTION FUNCTIONALITY 5.1 Detection Functionality By Sensors 5.1.1 Sensors for Covers/Cassettes Right upper cover sensor Top cover sensor Front cover sensor Cassette A sensor Cassette B sensor Cassette A cover sensor Cassette B cover sensor...
  • Page 201 BJ-W9000 Part 4: Technical Reference Top cover sensor The microswitch-based top cover sensor detects the open/closed state of the top cover. When the top cover is closed, the switch is depressed and the cover's closed status is confirmed. Right upper cover sensor The microswitch-based right upper cover sensor detects the open/closed state of the right upper cover.
  • Page 202 Part 4: Technical Reference BJ-W9000 5.1.2 Sensors for Components Relating to Ink Passage A-H Valve sensor Pump home position sensor Pump sensor Suction cap sensor Y,PC,PM Air valve sensor Preventive cap/wiper up/down sensor C,M,K Air valve sensor A-C,C-Svalve sensor Ink bottle set sensor...
  • Page 203 BJ-W9000 Part 4: Technical Reference Blade sensor Cover open/close arm sensor Wiper moter temperature protector Sub tank ink sensor Wiper unit Sub tank unit Waste ink leakage detection sensor Waste ink full detection sensor Waste ink tank unit Figure 4-39 Schematic Diagram of Sensors for Ink Passage 2...
  • Page 204 Part 4: Technical Reference BJ-W9000 Suction cap sensor The photo interrupter-based suction cap sensor detects the status of the suction caps (1st, 4th, 7th, and 10th caps, from left to right) of the purge unit. If the sensor light passes through the cut in the rotary flag, which is interlocked with the suction cap cam shaft, the printer recognizes that all suction caps are open (all suction caps open state).
  • Page 205 BJ-W9000 Part 4: Technical Reference Pump sensor The pump sensor, a photo interrupter-based sensor, detects the operating state of the pumps in the purge unit. If the sensor light passes through the cut in the rotary flag, which is interlocked with the pump selection cam shaft, the printer recognizes that all pumps are in the halt state (not operating).
  • Page 206 Part 4: Technical Reference BJ-W9000 Pump valve sensor The pump valve sensor, a photo interrupter-based sensor, detects the open/closed state of the pump valves. The tubes that are not used for supplying color inks are pressed by the pump valves to block the ink flow.
  • Page 207 BJ-W9000 Part 4: Technical Reference C/M/K air valve sensor The C/M/K air valve sensor, a photo interrupter-based sensor, detects the open/closed state of the air valves for cyan, magenta, and black inks. If the sensor light passes through the cut in the rotary flag, which is interlocked with the C/M/K air cam shaft, the printer recognizes that all the air valves (C, M, and K) are open.
  • Page 208 Part 4: Technical Reference BJ-W9000 Blade sensor The blade sensor, a photo interrupter-based sensor, detects the rotating position of the wiper blade when the wiper motor operates in the normal rotation. In the normal rotation mode of the wiper motor, if the sensor light passes through the cut in the rotary flag, which is interlocked with the wiper blade shaft, the printer recognizes that the wiper blade is at the standby position.
  • Page 209 BJ-W9000 Part 4: Technical Reference Sub tank ink sensor (C, M, Y, K, PC and PM) The electrode-based sub tank ink sensor is built in each sub tank to detect the remaining amount of ink. The sensor has three electrodes, being able to recognize the remaining ink at three levels: full, middle, and empty.
  • Page 210 Part 4: Technical Reference BJ-W9000 5.1.3 Sensors for Components Relating to Carriage Carriage unit Linear encoder Carriage home position sensor Paper gap position BJ print head set sensor detection sensor Print position sensor Internal temperature sensor Nozzle check sensor Figure 4-50 Schematic Diagram of Sensors for Carriage Components...
  • Page 211 BJ-W9000 Part 4: Technical Reference Print position sensor The print position sensor, a photo reflection sensor, reads the reflection density from the print position adjustment pattern as well as the surface of the printing paper. The voltage measured in the sensor varies proportional to the reflection density from the pattern or the paper, through which the print position or the paper width is determined.
  • Page 212 Part 4: Technical Reference BJ-W9000 Nozzle check sensor The nozzle check sensor, a photo transmission sensor, detects whether a specific nozzle of the BJ print head's nozzle array is spraying ink correctly. When the carriage arrives at the location for detection, it stops and the ink is jetted from one nozzle of the nozzle array at a time until all the nozzles are checked for their normal ink ejecting operations.
  • Page 213 BJ-W9000 Part 4: Technical Reference Internal temperature sensor The internal temperature sensor (thermistor), installed on the right side of the carriage, detects the temperature in the vicinity of the carriage. The resistance value measured by the thermistor, which changes as the temperature inside the printer alternates, is converted into a temperature value via the A/D converter.
  • Page 214 Part 4: Technical Reference BJ-W9000 5.1.4 Sensors for Components Relating to Paper Path Pressure roller sensor Spur sensor Cutter sensor (left) Spindle A sensor Paper guide D sensor Spindle B sensor Paper guide C sensor Figure 4-53 Schematic Diagram of Sensors for Components Relating to Paper Path 1...
  • Page 215 BJ-W9000 Part 4: Technical Reference Paper guide A sensor Cutter sensor (right) Eject sensor Manual set sensor Manual paper end sensor Manual feed sensor Skew sensor Cassette A paper pick up sensor Cassette B paper pick up sensor Figure 4-54 Schematic Diagram of Sensors for Components Relating to Paper Path 2...
  • Page 216 Part 4: Technical Reference BJ-W9000 Cassette A (upper) paper pick up sensor The cassette A (upper) paper pick up sensor, a photo interrupter-based sensor, detects the paper feeding operation of cassette A. The sensor light is blocked by the sensor arm when the paper is fed from cassette A, demonstrating the paper is available and being conveyed correctly.
  • Page 217 BJ-W9000 Part 4: Technical Reference Skew sensor The paper skewing photo reflection-based sensors, detect skewing of roll media paper. The two skew sensors are installed in parallel near the location where the right end of the paper traverses. These sensors detect paper skew by receiving the light reflected from the paper surface.
  • Page 218 Part 4: Technical Reference BJ-W9000 Pressure roller sensor The pressure roller photo interrupter-based sensor, detects the open/closed (release/pressing) state of pressure roller unit. When the pressure roller is closed, the sensor light is blocked by the rotary flag interlocked with the pressure roller cam shaft, and the printer recognizes that the pressure roller unit is in the pressing mode.
  • Page 219 BJ-W9000 Part 4: Technical Reference Manual paper end sensor The manual paper end photo reflection-based sensor, detects whether or not the cut sheet is in the manual feed slot, and also detects the end of the cut sheet. If the sensor receives the light reflected from the paper surface, the printer recognizes that print paper is available.
  • Page 220 Part 5 MAINTENANCE 5 -64 7.3 Troubleshooting during Page 5 - 1 1. Maintenance Warning/Error/Firmware Error 5 -83 7.4 Troubleshooting for 5 - 1 1.1 List of Periodic Replacement Conditions not Displayed in Parts the Message Display. 5 - 1 1.2 List of Consumables 5 - 1 1.3 A List of Periodic...
  • Page 221 J-W9000 Part 5: Maintenance 1. MAINTENANCE 1.1 List of Periodic Replacement Parts Level Periodic replacement parts User None Service personnel None 1.2 List of Consumables (See Part2: PRODUCT SPECIFICATIONS (Page 2-1) for more information) Level Consumable User BJ print head Ink bottle (cyan) Ink bottle (magenta) Ink bottle (yellow)
  • Page 222 Part 5: Maintenance BJ-W9000 2. SERVICING TOOLS 2.1 List of Tools Ordinary Tools Note Phillips screwdriver (+) For loosening/tightening screws Hex key wrench For loosening/tightening screws with hexagon sockets Blade screwdriver For adjusting the position of camshaft, removing E-ring Pliers...
  • Page 223 BJ-W9000 Part 5: Maintenance Special tools (parts no.) Note Grease MOLYKOTE PG-641 For application to specified locations (See Page 5-5) (CK-0562-000) System controller version For upgrading the system controller upgrade software (See Page 3-82) (QY9-0112-000) CR/MT controller version For upgrading the carriage controller/ motor controller...
  • Page 224 Part 5: Maintenance BJ-W9000 2.2 Using the Cover Switch Tool One of the two hooks on the cover switch tool is plugged into the cover switch. Upper right cover sensor Top cover sensor Front cover sensor Lower left cover sensor...
  • Page 225 BJ-W9000 Part 5: Maintenance 3. APPLYING THE GREASE Apply the grease at the location shown below. Smear the grease lightly and evenly with a flat brush. Part 5: 5. DISASSEMBLY/REASSEMBLY (Page 5-8) and the Parts Catalog for reassembling and disassembling the printer.
  • Page 226 Part 5: Maintenance BJ-W9000 4. SERVICE PARTS 4.1 Service Parts The service parts indicated below require careful handling. 4.1.1 Keep all packages with the warning not to turn over. Pay careful attention to all individually packaged service part (carriage unit, purge unit, sub-tank unit) boxes marked "This side up"...
  • Page 227 BJ-W9000 Part 5: Maintenance 4.1.2 Sub-Tank Unit Colored water droplets may remain inside the sub-tank unit. To prevent this water from leaking out of the package box, the ends of the ink tubes are gathered and put into small plastic bags with absorbers.
  • Page 228 Part 5: Maintenance BJ-W9000 5. DISASSEMBLY/REASSEMBLY 5.1 Disassembly/Reassembly See Parts Catalog for the process of disassembly and reassembly. The parts layout illustrations have figure numbers according to the disassembly procedure of the product. 5.2 Points to Note on Disassembly and Reassembly Points to note on disassembly and reassembly are illustrated below.
  • Page 229 BJ-W9000 Part 5: Maintenance Purge unit Red screw Figure 5-5 Example of Locations Where Disassembly is Prohibited or Careful Adjustment is required (2)
  • Page 230 Part BJ-W9000 BJ-W9000 5.2.2 Shifting the carriage manually Select "level adjustment" menu from the operation panel's installation mode to move the carriage. If you need to move the carriage when the power is turned off, eg. When disassembling or reassembling, move the carriage by using the handle.
  • Page 231 BJ-W9000 Part 5: Maintenance 5.2.3 Units needing to be drained of ink Drain ink from the tanks to prevent leakage when you disassemble the ink passage illustrated below. See Part5: 5.4 Ink Drain (Page 5-34) for how to drain ink.
  • Page 232 Part 5: Maintenance BJ-W9000 5.2.4 Rear lower Cover When you remove the rear lower cover from the printer, first pull out both left and right back handles. If the handles are pulled out, they will catch the cover when it is removed, which will prevent the cover from dropping on your feet.
  • Page 233 BJ-W9000 BJ-W9000 Part 5.2.6 Right Cover/Left Cover When removing the right or left cover, pull upward to clear the hooks on the upper output cover unit. Upper output cover unit Right cover hook Figure 5-10 Right Cover/ Left Cover (Right cover removal: imaginal view)
  • Page 234 Part BJ-W9000 BJ-W9000 5.2.7 Carriage Unit a) Removing a carriage unit 1) Perform ink drainage. See Part5: 5.4 Ink Drain (Page 5-34). 2) Remove all ink tube joints inside the carriage caterpillar connecting with the sub- tank unit. (The rubber tube joints are components of carriage unit. The plastic tube joints are components of the sub-tank unit.) To prevent ink from leaking during...
  • Page 235 BJ-W9000 Part 5: Maintenance b) Reassembly of carriage unit Connect ink tubes inside the carriage's caterpillar to sub-tank ink tubes according to the ink color indications printed on the tubes. After reassembly, execute "fill ink" from the installation mode. After replacing the carriage unit, clear information 3: the total number of carriage scans in the service mode.
  • Page 236 Part 5: Maintenance BJ-W9000 5.2.8 Sub-tank Unit / Purge Unit a) Removing the sub-tank unit / purge unit Remove the sub-tank unit and the purge unit together, then separate them into two units. 1) Perform ink drainage. See Part5: 5.4. Ink Drain (Page 5-34).
  • Page 237 BJ-W9000 Part 5: Maintenance 5) Remove the sub-tank unit and purge unit from the printer by using the circular opening to slide them out. Then, the sub-tank and purge unit must be placed on their 'backs' (by turning them 90 degrees). The term 'back' refers to the rear surface of the sub tank and purge unit when in the printer.
  • Page 238 Part 5: Maintenance BJ-W9000 b) Reassembling the sub-tank unit / purge unit 1) Set the purge unit on top of the sub-tank unit, then screw them together with the 5 screws and connect the 2 tube joints and 1 connector.
  • Page 239 BJ-W9000 Part 5: Maintenance 3) Joint all ink tubes securely. 4) After reassembly, carry out the "fill ink" procedure from the installation mode with the right cover removed. While the right cover is removed visually check that the ink is flowing into the ink tubes. This will confirm that the ink passage was correctly connected when ink was added after the installation of the sub-tank unit and purge unit.
  • Page 240 Part 5: Maintenance BJ-W9000 5.2.9 Ink Bottle Unit a) Taking out the ink bottle unit Remove or install the ink bottle unit with the ink bottles in place. The ink-bottle- locking lever can not be pressed down without the ink bottle being in position. The ink bottle locking lever cannot be lowered if no ink bottle is installed, and in the raised position it will interfere with printer operation.
  • Page 241 BJ-W9000 Part 5: Maintenance b) Reassembling the ink bottle unit Separate the sticking rubber parts inside the check valve with a valve releasing special tool when reassembling the ink bottle unit. See Part 3: 2.1.8 Releasing the check valve (Page 3-17) for how to use the valve releasing tool.
  • Page 242 Part 5: Maintenance BJ-W9000 5.2.10 Waste Ink Tank Unit Release the waste ink tank locking lever and the ink drain tube first, then attach a binder clip or a similar device to avoid ink leakage when you remove the waste ink tank unit.
  • Page 243 BJ-W9000 Part 5: Maintenance 5.2.11 Wiper Blade Ass'y The wiper blade Ass'y is removed by pressing down the wiper blade locking lever after removing the cover plate. The wiper Ass'y can be individually removed from the printer without removing the purge unit.
  • Page 244 Part 5: Maintenance BJ-W9000 5.2.12 Roll Media Cassette A (upper) / B (lower) a) Removing cassettes A and B 1) When removing cassettes A and B, close the media pressure roller. Handle them carefully so they don't come into contact with the roll media feeding roller or the static electricity removal brush.
  • Page 245 BJ-W9000 Part 5: Maintenance 5.2.13 Pressure Roller Unit When installing the pressure roller unit on to the printer, place the paper for printing so that it covers the feed roller and platen. This protects the feed roller, which adjusts feed precision, preventing the point of the pressure roller unit from entering under the platen.
  • Page 246 Part 5: Maintenance BJ-W9000 5.2.14 Feed Motor When installing the feed motor, be sure that the worm gear and the feed roller gear on the feed motor are securely engaged. The power of the feed motor is transmitted to the drive of the paper path through the gear drain from the feed roller gear.
  • Page 247 BJ-W9000 Part 5: Maintenance 5.2.15 Feed Roller Ass'y / Nozzle Check Sensor Holder Unit The feed roller Ass'y is removed by sliding it to the left after removing the nozzle check sensor holder unit, which is in contact with the feed roller gear. When you put down the removed feed roller Ass'y, place it on clean paper in order to protect the roller surface.
  • Page 248 Part 5: Maintenance BJ-W9000 5.2.16 Cut Sheet Feed Unit When removing the cut sheet feed unit, release paper guide A (lever a) and paper guide C (lever c) first. If paper guides A and C are not released, the cut sheet feed unit cannot be removed.
  • Page 249 BJ-W9000 Part 5: Maintenance 5.2.17 Cutter Unit When installing the cutter unit, fit it under the paper guide. If the cutter unit is assembled while still attached to the paper guide, it may cause a current overload due to the paper guide bumping into the eject roller and stopping the eject roller from turning.
  • Page 250 Part 5: Maintenance BJ-W9000 5.2.18 Paper Guide Release Shaft and Release Lever a Construct the paper guide release shaft and release lever a in order to meet the following conditions: when the release lever a is set to be level, the paper guide release shaft applies pressure to the paper guide A.
  • Page 251 BJ-W9000 Part 5: Maintenance This page intentionally left blank 5-31...
  • Page 252 Part 5: Maintenance BJ-W9000 5.3 Cap/Valve Open/Wiper Unit Up/Down The following describes how to open the caps and the valves manually. If you need to move the carriage or to perform "ink drain" when the power is turned off, the pressure on the caps and lever has to be manually released.
  • Page 253 BJ-W9000 Part 5: Maintenance sensor. Turn the protection cap/ wiper rise and fall camshaft by inserting the slotted screwdriver into the notch on the protection cap/ wiper rise and fall camshaft. (When the protection cap / wiper rise and fall camshaft is turned, the protection cap also rises or falls.)
  • Page 254 Part 5: Maintenance BJ-W9000 5.4 Ink Drain There are two types of "ink drain", one is an automatic ink drain and the other is manual ink drain. The "ink drain" discharges all the ink from inside the ink passages, about 900ml (about 150ml x 6 colors).
  • Page 255 BJ-W9000 Part 5: Maintenance b) Outline of manual ink drain Follow these steps to perform manual ink drain. Step 1 Both the ink that is in the carriage unit, and the ink contained in the ink tubes which connect the carriage unit to the sub-tank unit, should be poured into the sub-tank at the same time.
  • Page 256 Part 5: Maintenance BJ-W9000 c) Steps for manual ink drain (Page 5-38 and 5-39). Step 1 1) Open the right lower cover, and lift the ink bottle locking levers for all 6 colors. 2) Remove the rear lower cover, the right cover, the rear right lower cover, and the rear upper cover.
  • Page 257 BJ-W9000 Part 5: Maintenance Step 3 12) When no more ink is being discharged by following the procedure in step 2, close the C-S valve and then change the ink passage for another color. See (Page 5-32). Again, pull the syringe plunger, and suck up ink, discharging it into the waste tank etc.
  • Page 258 Part 5: Maintenance BJ-W9000 Ink drain tube Open sub-tank Y M C K PM PC Tube (PM) (PC) Pump tube (cyan) Closed sub-tank Air tube (cyan) Figure 5-31 Manual Ink Drain Step 2 - (9) Sub-tank Top View 5-38...
  • Page 259 BJ-W9000 Part 5: Maintenance * Shows the main access points for manual ink drain. Figures in ( ) match the manual ink drain procedure numbers. Syringe and tube BJ print head locking lever (10), (11), (13) A-H Valve cam interlocking shaft...
  • Page 260 Part 5: Maintenance BJ-W9000 6. ADJUSTMENT/ SET-UP 6.1 Adjustments and Settings 6.1.1 Adjusting the Belt Tension Needed when the roll feed roller drive unit, upper roll drive unit, lower roll drive unit are replaced, or the screws for adjusting the belt tension on the upper roll drive unit (red screws) are loosened.
  • Page 261 BJ-W9000 Part 5: Maintenance 6.2 Adjustment and How to Set Up 6.2.1 Adjusting the Belt tension After adjustment screws (red screws) on the belt tension are loosened, tighten them up to correct media feeding by following the steps described below.
  • Page 262 Part 5: Maintenance BJ-W9000 6.2.2 Adjustment of the Wiper Blade Position a) Outline for adjusting the wiper blade position The wiper blade adjustment is performed in the following steps: 1. Preparation, 2. Adjusting the up-and-down direction, 3. Adjusting the back-and-forth direction, and 4.
  • Page 263 BJ-W9000 Part 5: Maintenance Up-and-down locking screw (red) Purge unit right side view Back-and-forth adjustment screw Up-and-down adjustment screw Purge unit front view Figure 5-35 Position of the Adjustment Screws 5-43...
  • Page 264 Part 5: Maintenance BJ-W9000 5) After moving the carriage so that the height adjustment convex in the dummy head reaches the blade position (as viewed from the front of the printer) , elevate the wiper unit by turning the protection cap and wiper rise and fall camshaft about 50 degrees counterclockwise.
  • Page 265 BJ-W9000 Part 5: Maintenance Up-and-Down Adjustment Dummy head Height adjustment convex Blade C Wiper blade Ass'y Back-and-forth adjustment Back-and-Forth Adjustment Narrow blade Dummy head Wide blade Back-and-forth adjustment convex Wiper blade Ass'y Front side view Right side view Figure 5-36 Up-and-Down/ Back-and-Forth Adjustment of the Wiper Blade...
  • Page 266 Part 5: Maintenance BJ-W9000 6.2.3 Nozzle Management (nozzle check) Auto Position Adjustment After having disassembled, reassembled, or replaced the nozzle check sensor, the purge unit, the linear scale, or the carriage unit, select the "nozzle check - position" to clear the existing optimal nozzle check position. See part 3: 5.2 Service Mode (Page 3-55)
  • Page 267 BJ-W9000 Part 5: Maintenance 6.2.4 Checking the Dip SW Set-Up in the System Controller When the system controller is disassembled or re-assembled, be careful not to move the Dip SW set position. If Dip SW set position is shifted or placed in the wrong position (for the service parts), re-set it according to the diagram below.
  • Page 268 Part 5: Maintenance BJ-W9000 7. TROUBLESHOOTING 7.1 Outline of Troubleshooting 7.1.1 Outline There are two types of trouble: trouble which is reported by the messages indicated on the message display, including "operator call," "warning," "error," and "firmware error"; and trouble not indicated on the message display.
  • Page 269 BJ-W9000 Part 5: Maintenance 7.2 Troubleshooting during "Operator Call" 7.2.1 Top cover is open : Close cover <Cause> The top cover sensor detected the top cover open. <Probable faulty component> Top cover, top cover sensor, mech. controller, system controller. <Action>...
  • Page 270 Part 5: Maintenance BJ-W9000 7.2.4 Tray A is open : Close tray <Cause> Either the cassette A cover sensor or the cassette A sensor detected the media tray open. <Probable faulty component> Cassette cover, cassette A cover sensor, upper roll media unit, cassette A sensor, mech.
  • Page 271 BJ-W9000 Part 5: Maintenance 7.2.6 Lever a is unlocked : Lock lever <Cause> The paper guide A sensor detected the paper guide A open. <Probable faulty component> Release lever a, paper guide A sensor, paper guide release shaft, mech. controller, system controller.
  • Page 272 Part 5: Maintenance BJ-W9000 7.2.8 Lever d is unlocked : Lock lever <Cause> The paper guide D sensor detected paper guide D open. <Probable faulty component> Paper guide D, paper guide D sensor (paper guide B), mech. controller, system controller.
  • Page 273 BJ-W9000 Part 5: Maintenance 7.2.9 Tray A jam : Remove paper <Cause> The paper did not pass through the eject sensor within the predefined time period during the rewind operation for the cassette A paper. <Probable faulty component> Eject sensor, spindle, cassette A, feed motor, upper (top) roll media drive unit, roll...
  • Page 274 Part 5: Maintenance BJ-W9000 7.2.10 Tray B jam : Remove paper <Cause> The paper did not pass through the eject sensor within the predefined time period during the rewind operation for the cassette B paper. <Probable faulty component> Eject sensor, spindle, cassette B, feed motor, lower roll media drive unit, upper roll...
  • Page 275 BJ-W9000 Part 5: Maintenance 7.2.11 Cut sheet jam : Remove sheet <Cause> During the setting operation of the cut sheet, the manual feed sensor and the ink jet sensor detected the printing paper. During the feeding operation of the cut sheet, the eject sensor didn't detect the cut sheet within the predefined time period, or detected the cut sheet earlier than the predefined time period.
  • Page 276 Part 5: Maintenance BJ-W9000 7.2.12 Cannot feed from tray A : Reset paper <Cause> During the feed operation from cassette A, the cassette A feed sensor did not detect the paper within the predefined time period. During the feed operation from cassette A, the skew sensor or the print position sensor detected the paper being carried obliquely.
  • Page 277 BJ-W9000 Part 5: Maintenance 7.2.13 Cannot feed from tray B : Reset paper <Cause> During the feed operation from cassette B, the cassette B feed sensor did not detect the paper within the predefined time period. During the feed operation from cassette B, the skew sensor of the print position sensor detected the paper being carried obliquely.
  • Page 278 Part 5: Maintenance BJ-W9000 7.2.14 Tray A jam : Open top cover and check <Cause> During the feed operation from cassette A, the eject sensor did not detect the paper within the predefined time period. During the paper rewinding for the cassette A, the paper did not pass through the cassette A sensor within the predefined time period.
  • Page 279 BJ-W9000 Part 5: Maintenance 7.2.15 Tray B jam : Open top cover and check <Cause> During the feed operation from cassette B, the cassette A feed sensor or the eject sensor did not detect the paper within the predefined time period.
  • Page 280 Part 5: Maintenance BJ-W9000 7.2.16 Tray A is open : Remove paper <Cause> During paper feeding from cassette A, the cassette A cover sensor or the cassette A sensor detected the cassette A open state. <Probable faulty component> Cassette A cover sensor, cassette A sensor, cassette A, mech. controller, system controller.
  • Page 281 BJ-W9000 Part 5: Maintenance 7.2.18 Remove the paper in the : exit <Cause> During the paper delivery operation, the eject sensor detected paper. <Probable faulty component> Eject sensor, feed motor check, delivery roller, spur unit, motor controller, mech. controller, system controller.
  • Page 282 Part 5: Maintenance BJ-W9000 7.2.19 Waste ink tank error : Set waste ink tank <Cause> The lower left cover sensor detected the lower left cover open state. <Probable faulty component> Lower left cover, left cover sensor, mech. controller, system controller.
  • Page 283 BJ-W9000 Part 5: Maintenance 7.2.21 Offline/printing : Out of ink X <Cause> The ink sensor did not detect the ink full state after the ink was supplied. <Probable faulty component> Ink bottle, ink bottle unit, sub-tank unit, purge unit, mech. controller, system controller.
  • Page 284 Part 5: Maintenance BJ-W9000 7.3 Troubleshooting during Warning/Error/Firmware Error 7.3.1 E1301/E1303/E1305 : Ink circulation timeout between close sub-tank - open sub-tank E1311/E1312/E1313/E1314/E1315/E1316 : Ink circulation error between close sub-tank - open sub-tank E1321/E1322/E1323/E1324/E1325/E1326 : Ink circulation error between close sub-tank - open sub-tank <Cause>...
  • Page 285 BJ-W9000 Part 5: Maintenance 7.3.2 E1610/E1615/E1616/E1617/E1618 : Pump sensor error E1620/E1625/E1626/E1627 : Suction cap sensor error E1635/E1636 : Pump home position sensor error E1650/E1651/E1653 : Protection cap/wiper up/down sensor error Eb003 : Suction cap sensor error Eb004 : Protection cap/wiper up/down sensor error...
  • Page 286 Part 5: Maintenance BJ-W9000 7.3.3 E1630/E1631 : Cover open/close arm sensor error E1640/E164f : Wiper blade sensor error Eb106 : Cover open/close arm sensor error Eb107 : Wiper blade sensor error <Cause> The cover open/close arm did not detect the base position (sensor transmission) within the predefined time period.
  • Page 287 BJ-W9000 Part 5: Maintenance 7.3.4 E1660/E1665/E1666/E1667 : A-C/C-S valve sensor error E1670/E1675 : Y/ PC/ PM air valve sensor error E1680/E1685 : C/ M/ K/ air valve sensor error E16a0/E16a5/E16a6/E16a7 : Pump valve sensor error Eb201 : A-C/C-S valve sensor error...
  • Page 288 Part 5: Maintenance BJ-W9000 7.3.5 E1690/E1696/E1697/E1698 : A-H valve sensor error Eb105 : A-H valve sensor error <Cause> The A-H valve sensor did not detect the base position (sensor transmission) within the predefined time period. The A-H valve sensor did not detect the base position (sensor transmission) within the predefined time period when the power was turned on.
  • Page 289 BJ-W9000 Part 5: Maintenance 7.3.7 E1702 : Ink leakage in the waste ink tank unit. <Cause> The waste ink leakage detection sensor detected ink leakage. <Probable faulty component> Waste ink tank unit, mech. controller, system controller. <Action> 1. Visual inspection: Visually check where the leakage has occurred and fix that part.
  • Page 290 Part 5: Maintenance BJ-W9000 7.3.9 W2102 : Print position sensor calibration warning W2105 : Paper width detection timeout W2114 : Print position sensor calibration warning W2115 : Obliqueness detection timeout E6801/W6802 : Print position sensor calibration error/warning W6810 : Paper width warning during automatic print position adjustment...
  • Page 291 BJ-W9000 Part 5: Maintenance 7.3.10 W2301/W2302 : Spur sensor warning Wb102 : Spur sensor warning <Cause> The spur sensor did not detect the base position (sensor transmission) within the predefined time period. <Probable faulty component> Spur sensor, spur clutch, spur unit, feed motor, motor controller, mech. controller, system controller.
  • Page 292 Part 5: Maintenance BJ-W9000 7.3.12 E2500 : Cutter sensor error W2501/W2502 : Cutter movement timeout Wb001 : Cutter sensor warning <Cause> An error occurred in the cutter sensor. The cutter did not stop its forward and backward movements within the predefined time period.
  • Page 293 BJ-W9000 Part 5: Maintenance 7.3.14 E3008 : System controller: battery error <Cause> System controller battery shutoff has been detected. <Probable faulty component> Battery, system controller. <Action> 1. Battery: Measure the voltage of CP452 and CP419 (between GND) on the system controller with the power of the printer turned off.
  • Page 294 Part 5: Maintenance BJ-W9000 7.3.17 W5501 : SCSI communication error <Cause> An abnormal condition has been detected in SCSI communication between the host computer and the printer. <Probable faulty component> Host computer or hardware RIP, SCSI cable, interface connector Ass'y, system controller.
  • Page 295 BJ-W9000 Part 5: Maintenance 7.3.19 E8009 : Head temperature sensor error E800d : Head temperature sensor error <Cause> The unusual rise in temperature in the BJ print head does not return to normal within the predefined time period. The temperature of the BJ print head is not suitable for printing.
  • Page 296 Part 5: Maintenance BJ-W9000 7.3.21 E7260 : Nozzle check sensor unit error E7270 to E727b/W7280/E7281/E7290/ E7291 :Nozzle check error <Cause> The position of the nozzle check sensor unit was faulty. An abnormal condition occurred in the nozzle check sequence. An abnormal vibration in the printer, the BJ print head is abnormal or no ink was delivered to the BJ print head.
  • Page 297 BJ-W9000 Part 5: Maintenance 7.3.22 E8002 : Print position information error <Cause> The print position adjustment value setting was incorrect. <Probable faulty component> Battery shutoff, system controller. <Action> 1. Battery: Measure the voltage between CP452 and CP417 (GND) on the system controller with the power of the printer turned off, and replace the battery if the result is not between about 2.7V~3.2V.
  • Page 298 Part 5: Maintenance BJ-W9000 7.3.24 E8006/E8007 : Band memory error E8400 to E840b : Mask pattern error <Cause> The comparison result between print data written on the band memory and the print data read from band memory was inconsistent, or the data count value was abnormal.
  • Page 299 BJ-W9000 Part 5: Maintenance 7.3.26 E9001 : Operation panel error E9002 : Operation panel error <Cause> The initialization of the operation panel failed when the power was turned on. Communication error occurred between the system controller and the operation panel.
  • Page 300 Part 5: Maintenance BJ-W9000 7.3.28 Wc000 : Carriage motor current overload error <Cause> Current overload in the carriage motor. <Probable faulty component> Foreign matter on the carriage path, carriage shaft/rail, carriage unit, carriage motor, motor controller, system controller. <Action> 1. Check the carriage path: Visually check the carriage path for abnormal conditions, such as paper jamming the path.
  • Page 301 BJ-W9000 Part 5: Maintenance 7.3.29 Wc001 : Feed motor current overload error <Cause> Current overload in the feed motor. <Probable faulty component> Print paper, foreign matter in the paper passage, paper passage working parts, feed motor, motor controller, system controller.
  • Page 302 Part 5: Maintenance BJ-W9000 7.3.31 Bxxxx : Firmware error <Cause> An abnormal condition was detected in the firmware. <Probable faulty component> Firmware, system controller, carriage controller, motor controller. <Action> 1. Turn the power off, wait for 5 seconds, then restore power.
  • Page 303 BJ-W9000 Part 5: Maintenance 7.4 Troubleshooting for Conditions not Displayed in the Message Display. 7.4.1 Cannot turn on the printer. <Possible symptoms> • Nothing was displayed on the Message display even when the power was turned • The fan at the bottom of the rear of the main unit did not work.
  • Page 304 Part 5: Maintenance BJ-W9000 7.4.2 Abnormal conditions in printing (ink filled) <Possible symptoms> Step 1: • Cannot recognize the SCSI. • Check patterns can be printed, but the printing from the host computer is incorrect. Step 2: • Cannot print at all.
  • Page 305 BJ-W9000 Part 5: Maintenance 7.4.3 Abnormal condition in printing (ink not filled) <Possible symptoms> • Cannot print at all. • Printing not processed with particular ink. • No ink is present in the ink tube which connects to the carriage caterpillar.
  • Page 306 Part 5: Maintenance BJ-W9000 <Action for Step 2> 1. Visual inspection: Visually check for abnormal conditions, such as a bent ink tube. 2. Ink circulation: Execute "Fill Ink" in the service mode. 3. Replace the sub tank unit. 4. Replace the A-H valve unit.
  • Page 307 BJ-W9000 Part 5: Maintenance 7.4.4 Other abnormal conditions in printing <Possible symptoms> Ink stains (blots) on printed images can be detected. Ink with the same color as the ink blots was not filled in the ink tubes in the carriage caterpillar part and the BJ print head locking lever.
  • Page 308 Part 5: Maintenance BJ-W9000 8. CONNECTOR POSITIONS AND PIN ARRANGEMENT 8.1 System Controller 4 1 4 B1 B40 J411 J410 J407 J408 J409 J401 J412 Figure 5-38 System Controller J401 Pin No. Signal IN/OUT Function –– SCSI control signal (Attention) ––...
  • Page 309 BJ-W9000 Part 5: Maintenance J403 Pin No. Signal IN/OUT Function –– Cyan data bus (bit 0) Cyan data bus (bit 2) –– XCREQ Cyan data request signal –– Power (5V) CCD0 Photocyan data bus (bit 0) CCD2 Photocyan data bus (bit 2) ––...

  • Page 310: Signal In/Out Function Gnd -- Gnd

    Part 5: Maintenance BJ-W9000 J403 Pin No. Signal IN/OUT Function –– XCCACK Reply signal for photocyan data request –– XCCHSYNC Line synchronization signal for photocyan Magenta data bus (bit 1) Magenta data bus (bit 3) –– XMACK Reply signal for Magenta data request ––...
  • Page 311 BJ-W9000 Part 5: Maintenance J404 Pin No. Signal IN/OUT Function MDARA4 IN/OUT CPU data bus (bit 4) MDATA6 IN/OUT CPU data bus (bit 6) –– XIRQ-H2S Interrupt request signal (from head controller to system controller) Power (5V) –– XRD-H CPU read signal (head controller)

  • Page 312: B24

    Part 5: Maintenance BJ-W9000 J404 Pin No. Signal IN/OUT Function XRESET External reset signal Power (5V) –– XWRL-H CPU Write signal (head controller) Power (5V) –– CR-ENCA Carriage motor encoder A phase signal CR-ENCB Carriage motor encoder B phase signal ––...

  • Page 313: B22

    BJ-W9000 Part 5: Maintenance J405 Pin No. Signal IN/OUT Function XIRQ-M2S Interrupt request signal (from motor controller to system controller) –– Power (5V) Power (5V) –– –– –– DOOR Cover open/close signal –– Power (5V) Power (5V) –– LF-ENCA Paper feed motor encoder A phase signal...
  • Page 314 Part 5: Maintenance BJ-W9000 J406 Pin No. Signal IN/OUT Function Power (5V) PWMA0 Pulse motor drive signal 0 –– PWMA1 Pulse motor drive signal 1 –– PWMA2 Pulse motor drive signal 2 –– PWMA3 Pulse motor drive signal 3 ––...
  • Page 315 BJ-W9000 Part 5: Maintenance J408 Pin No. Signal IN/OUT Function –– Cyan data bus (bit 0) Cyan data bus (bit 2) –– XCREQ Cyan data request signal –– Power (5V) CCD0 Photocyan data bus (bit 0) CCD2 Photocyan data bus (bit 2) ––...

  • Page 316: B20 Gnd -- Gnd

    Part 5: Maintenance BJ-W9000 J408 Pin No. Signal IN/OUT Function –– XCCACK Reply signal for photocyan data request –– XCCSYNC Line synchronization signal for photocyan Magenta data bus (bit 1) Magenta data bus (bit 3) –– XMACK Reply signal for Magenta data request ––...

  • Page 317: B19 Gnd -- Gnd

    BJ-W9000 Part 5: Maintenance J409 Pin No. Signal IN/OUT Function –– CPU read signal XCS-I CPU Chip select signal (IPC) –– Image data bus (bit 0) Image data bus (bit 2) –– Image data bus (bit 4) Image data bus (bit 6) ––...
  • Page 318 Part 5: Maintenance BJ-W9000 J409 Pin No. Signal IN/OUT Function Image data bus (bit 9) PD11 Image data bus (bit 11) –– PD13 Image data bus (bit 13) PD15 Image data bus (bit 15) –– –– –– –– Power (5V) Power (5V) ––...
  • Page 319 BJ-W9000 Part 5: Maintenance J412 Pin No. Signal IN/OUT Function –– –– –– –– –– –– –– –– –– –– –– –– –– –– –– SDB0 IN/OUT SCSI data signal (bit 0) SDB1 IN/OUT SCSI data signal (bit 1) SDB2...
  • Page 320 Part 5: Maintenance BJ-W9000 8.2 Image Process Controller J1502 J1501 Figure 5-39 Image Process Controller J1501 Pin No. Signal IN/OUT Function –– Cyan data bus (bit 0) Cyan data bus (bit 2) –– XCREQ Cyan data request signal –– Power (5V)
  • Page 321 BJ-W9000 Part 5: Maintenance J1501 Pin No. Signal IN/OUT Function Yellow data bus (bit 2) –– XYREQ Yellow data request signal –– Power (5V) Black data bus (bit 0) Black data bus (bit 2) –– XBREQ Black data request signal ––...
  • Page 322 Part 5: Maintenance BJ-W9000 J1501 Pin No. Signal IN/OUT Function XBACK Reply signal for black data request –– XBHSYNC Line synchronization signal for black data –– Power (5V) –– J1502 Pin No. Signal IN/OUT Function –– CPU address bus (bit 0) CPU address bus (bit 2) ––...
  • Page 323 BJ-W9000 Part 5: Maintenance J1502 Pin No. Signal IN/OUT Function –– CPU address bus (bit 1) CPU address bus (bit 3) –– CPU address bus (bit 5) CPU address bus (bit 7) –– IN/OUT CPU data bus (bit 1) IN/OUT CPU data bus (bit 2) ––...
  • Page 324 Part 5: Maintenance BJ-W9000 8.3 Head Controller J209 J210 J202 Figure 5-40 Head Controller J201 Pin No. Signal IN/OUT Function –– Cyan data bus (bit 0) Cyan data bus (bit 2) –– XCREQ Cyan data request signal –– Power (5V)
  • Page 325 BJ-W9000 Part 5: Maintenance J201 Pin No. Signal IN/OUT Function Power (5V) Yellow data bus (bit 0) Yellow data bus (bit 2) –– XYREQ Yellow data request signal –– Power (5V) Black data bus (bit 0) Black data bus (bit 2) ––...
  • Page 326 Part 5: Maintenance BJ-W9000 J201 Pin No. Signal IN/OUT Function Black data bus (bit 3) –– XBACK Reply signal for black data request –– XBHSYNC Line synchronization signal for black data –– Power (5V) –– J202 Pin No. Signal IN/OUT Function ––...
  • Page 327 BJ-W9000 Part 5: Maintenance J203 Pin No. Signal IN/OUT Function –– Power supply for the head drive (10.3V) –– Power supply for the head drive (10.3V) –– J204 Pin No. Signal IN/OUT Function Power supply for the head drive (10.3V) ––...
  • Page 328 Part 5: Maintenance BJ-W9000 J205 Pin No. Signal IN/OUT Function –– MADDR0 CPU address bus (bit 0) MADDR2 CPU address bus (bit 2) –– MADDR4 CPU address bus (bit 4) MADDR6 CPU address bus (bit 6) –– MADDR8 CPU address bus (bit 8)
  • Page 329 BJ-W9000 Part 5: Maintenance J205 Pin No. Signal IN/OUT Function MADDR3 CPU address bus (bit 3) –– MADDR5 CPU address bus (bit 5) MADDR7 CPU address bus (bit 7) –– MADDR9 CPU address bus (bit 9) MADDR11 CPU address bus (bit 11) ––...
  • Page 330 Part 5: Maintenance BJ-W9000 J206 Pin No. Signal IN/OUT Function –– –– XPOS-M2C Backup for check –– reserve6 –– Reserve 6 –– reserve5 –– Reserve 5 –– H5V-ON Head 5V control signal –– H5V-ON Head 5V control signal –– LF-ENCV Paper feed motor encoder signal ––...
  • Page 331 BJ-W9000 Part 5: Maintenance J206 Pin No. Signal IN/OUT Function XSET-LS Carriage encoder synchronization signal –– DCLK Image data transfer clock (from head controller to carriage controller) –– XCOL-STR Carriage 1200dpi synchronization signal –– J207 Pin No. Signal IN/OUT Function ––...
  • Page 332 Part 5: Maintenance BJ-W9000 J207 Pin No. Signal IN/OUT Function PXD-E7 Image data (C head, B nozzle line, even nozzles) –– PXD-E6 Image data (C head, A nozzle line, even nozzles) –– PXD-E5 Image data (B head, C nozzle line, even nozzles) ––...
  • Page 333 BJ-W9000 Part 5: Maintenance J208 Pin No. Signal IN/OUT Function Power supply for the head drive (10.3V) –– Power supply for the head drive (10.3V) –– Power supply for the head drive (10.3V) –– Power supply for the head drive (10.3V) ––...
  • Page 334 Part 5: Maintenance BJ-W9000 8.4 Carriage Controller J814 J813 J806 J807 J808 J809 Figure 5-41 Carriage Controller J801 Pin No. Signal IN/OUT Function –– Power supply for the head drive (10.3V) –– Power supply for the head drive (10.3V) ––...
  • Page 335 BJ-W9000 Part 5: Maintenance J802 Pin No. Signal IN/OUT Function –– PXD-E0 Image data (A head, A nozzle line, even nozzles) –– PXD-E1 Image data (A head, B nozzle line, even nozzles) –– PXD-E2 Image data (A head, C nozzle line, even nozzles) ––...
  • Page 336 Part 5: Maintenance BJ-W9000 J803 Pin No. Signal IN/OUT Function –– Power supply for the head drive (10.3V) –– Power supply for the head drive (10.3V) –– Power supply for the head drive (10.3V) –– Power supply for the head drive (10.3V) ––...
  • Page 337 BJ-W9000 Part 5: Maintenance J804 Pin No. Signal IN/OUT Function –– XCOL-STR Carriage 1200dpi synchronization signal –– DCLK Image data transfer clock (from head controller to carriage controller) –– XSET-LS Carriage encoder synchronization signal synchronization –– CR-ENCA Carriage encoder A phase signal ––...
  • Page 338 Part 5: Maintenance BJ-W9000 J804 Pin No. Signal IN/OUT Function –– reserve5 –– Reserve 5 –– reserve6 –– Reserve 6 –– XPOS-M2C Backup for check –– –– J805 Pin No. Signal IN/OUT Function –– Power supply for the head drive (10.3V) ––...
  • Page 339 BJ-W9000 Part 5: Maintenance J806 Pin No. Signal IN/OUT Function Power supply for the head drive (10.3V) Power supply for the head drive (10.3V) Power supply for the head drive (10.3V) Power supply for the head drive (10.3V) Power supply for the head drive (10.3V) Power supply for the head drive (10.3V)
  • Page 340 Part 5: Maintenance BJ-W9000 J806 Pin No. Signal IN/OUT Function SHE-1C Sub heat enable signal (A head, C nozzle line) D1-CO Nozzle data signal (A head, C nozzle line, odd nozzles) BE1H-3 Block-enable signal (A head, bit 3) BE1H-2 Block-enable signal (A head, bit 2)
  • Page 341 BJ-W9000 Part 5: Maintenance J807 Pin No. Signal IN/OUT Function RANK-UM1 Head rank signal (B head, B nozzle line) Power supply for head logic (5V) Power supply for head logic (5V) DSUM-1A Diode sensor signal (B head, B nozzle, A side)
  • Page 342 Part 5: Maintenance BJ-W9000 J808 Pin No. Signal IN/OUT Function –– –– –– –– –– SRCLK-3H Clock signal for nozzle data (C head) D3-BO Nozzle data signal (C head, B nozzle line, odd nozzles) SHE-3B Sub heat enable signal (C head, B nozzle line)
  • Page 343 BJ-W9000 Part 5: Maintenance J809 Pin No. Signal IN/OUT Function DSCY-2A Diode sensor signal (D head, A nozzle, A side) HE-4B Heat-enable signal (D head, B nozzle line) D4-BE Nozzle data signal (D head, B nozzle line, even nozzles) DSUC-2B Diode sensor signal (D head, B nozzle, B side) ––...
  • Page 344 Part 5: Maintenance BJ-W9000 J811 Pin No. Signal IN/OUT Function –– CR-ENCA Carriage encoder A phase signal CR-ENCB Carriage encoder B phase signal Power (5V) –– CNT-SENS Ink connect detection signal Power (5V) –– CR-HIGHT0 Carriage height detection signal 0 Power (5V) ––...
  • Page 345 BJ-W9000 Part 5: Maintenance 8.5 Mech. Controller 24 1 40 1 16 15 Figure 5-42 Mech. Controller J601 Pin No. Signal IN/OUT Function –– CPU address bus (bit 3) CPU address bus (bit 2) CPU address bus (bit 1) CPU address bus (bit 0) ––...
  • Page 346 Part 5: Maintenance BJ-W9000 J601 Pin No. Signal IN/OUT Function H5V-ON Head 5V control signal Power (5V) Power (5V) Power (5V) Power (5V) –– –– IN/OUT CPU data bus (bit 7) IN/OUT CPU data bus (bit 6) IN/OUT CPU data bus (bit 5)
  • Page 347 BJ-W9000 Part 5: Maintenance J602 Pin No. Signal IN/OUT Function VALMOT-A Valve motor drive output VALMOT-B Valve motor drive output VALMOT-XA Valve motor drive output VALMOT-XB Valve motor drive output –– PMPVAL-SENS Sensor input signal SENS-5V 5V output for sensor ––...
  • Page 348 Part 5: Maintenance BJ-W9000 J603 Pin No. Signal IN/OUT Function –– ARVAL-SENS1 Sensor input signal SENS-5V 5V output for sensor –– ARVAL-SENS0 Sensor input signal SENS-5V 5V output for sensor –– HAVAL-SENS1 Sensor input signal SENS-5V 5V output for sensor...
  • Page 349 BJ-W9000 Part 5: Maintenance J604 Pin No. Signal IN/OUT Function PRSS-CL Drive output for clutch ACT-24V 24V output for clutch CAP-CL Drive output for clutch ACT-24V 24V output for clutch WIP-CL Drive output for clutch –– J605 Pin No. Signal...
  • Page 350 Part 5: Maintenance BJ-W9000 J606 Pin No. Signal IN/OUT Function –– GUIDC-SENS Sensor input signal SENS-5V 5V output for sensor –– LROLLPS-SENS Sensor input signal SENS-5V 5V output for sensor –– ROLLSLIP-SENS Sensor input signal SENS-5V 5V output for sensor ––...
  • Page 351 BJ-W9000 Part 5: Maintenance J608 Pin No. Signal IN/OUT Function ACT-24V 24V output for fan PCB-FAN2 Fan drive output ACT-24V 24V output for fan PCB-FAN1 Fan drive output ACT-24V 24V output for fan POWER-FAN Fan drive output (Reserve) ACT-24V 24V output for fan...
  • Page 352 Part 5: Maintenance BJ-W9000 J609 Pin No. Signal IN/OUT Function –– ACT-24V 24V output for clutch UROLLPS-CL Drive output for clutch ACT-24V 24V output for clutch UWIND-CL Drive output for clutch –– USPOOL-SENS Sensor input signal SENS-5V 5V output for sensor...
  • Page 353 BJ-W9000 Part 5: Maintenance J611 Pin No. Signal IN/OUT Function FCOV-COM –– Front cover switch signal FCOV –– Front cover switch signal FCOV-24V –– Front cover switch signal RUCOV-COM –– Right upper cover switch signal RUCOV –– Right upper cover switch signal RUCOV-24V ––...
  • Page 354 Part 5: Maintenance BJ-W9000 8.6 Motor Controller J1202 J1203 Figure 5-43 Motor Controller J1200 Pin No. Signal IN/OUT Function –– SDT-M2S Serial communication data signal (from motor controller to system controller ) SDT-S2M Serial communication data signal (from system controller to motor controller) ––...
  • Page 355 BJ-W9000 Part 5: Maintenance J1200 Pin No. Signal IN/OUT Function –– XIRQ-M2S Interrupt request signal (from motor controller to system controller) –– Power (5V) Power (5V) –– –– –– DOOR Cover open/close signal –– Power (5V) Power (5V) –– LF-ENCA...
  • Page 356 Part 5: Maintenance BJ-W9000 J1201 <<Reserve terminals for check>> Pin No. Signal IN/OUT Function –– Power (5V) Nsw_RESET JIG circuit board reset SW IN/OUT Data bus (bit 0) IN/OUT Data bus (bit 2) –– IN/OUT Data bus (bit 4) IN/OUT Data bus (bit 6) ––...
  • Page 357 BJ-W9000 Part 5: Maintenance J1203 <<Reserve terminals for download>> Pin No. Signal IN/OUT Function –– PRO_TxD Serial communication for program download - transmitted data PRO_RxD Serial communication for program download - received data n RES_E Reset signal IN/OUT Power (5V)
  • Page 358 Part 5: Maintenance BJ-W9000 9. CIRCUIT DIAGRAM Refer to the Parts Catalog for the part layouts on each board. 5-138...
  • Page 359 BJ-W9000 Part 5: Maintenance This page intentionally left blank. 5-139...
  • Page 360 Part 5: Maintenance BJ-W9000 9.1 General Circuit Diagram General circuit diagram(1/8) Connector ass'y (Option) Head controller System controller Mecha controller Motor controller 5-140...
  • Page 361 Part 5: Maintenance BJ-W9000 General circuit diagram(2/8) System controller J403 J404 J405 J406 J405A J405B J403A J403B J404A J404B J412 J406A J406B J401 J412A J412B J411 J401 J412A J412B J411 J201A J201B J205A J205B J1200A J1200B J201 J205 J601A J601B...
  • Page 362 Part 5: Maintenance BJ-W9000 General circuit diagram(3/8) Carriage controller J811 J810 9 1 01 1 1 2 1 3 1 4 1 5 J810 J811 9 10 11 12 13 14 15 J831 J832 J834 J833 J835 J836 PS201 PS203...
  • Page 363 Part 5: Maintenance BJ-W9000 General circuit diagram(4/8) Mecha. controller J602A J602 J602B J603 2 3 4 7 8 9 10 11 12 13 14 16 17 18 2 3 4 7 8 9 10 11 12 13 14 16 17 18...
  • Page 364 Part 5: Maintenance BJ-W9000 General circuit diagram(5/8) Mecha. controller J604 J604A J604 J605A J605 J605B 2 3 4 7 8 9 10 11 12 13 14 16 17 18 19 2 3 4 7 8 9 10 11 12 13 14...
  • Page 365 Part 5: Maintenance BJ-W9000 General circuit diagram(6/8) Mecha. controller J606 J607 2 3 4 7 8 9 10 11 12 13 2 3 4 7 8 9 10 11 12 13 J606 J607 2 3 4 7 8 9 10 11 12 13...
  • Page 366 Part 5: Maintenance BJ-W9000 General circuit diagram(7/8) Mecha. controller J608 J608A J608B (40) (21) J608 V x 16 J2076 J2069 J2070 J2078 J2081 J2077 Nozzle Feed check motor sensor PS21 PS29 FM408 FM409 FM401 FM402 FM411 FM412 FM413 Spur sensor...
  • Page 367 Part 5: Maintenance BJ-W9000 General circuit diagram(8/8) Mecha. controller J609 J609B J611 J609A J610 (16) (30) J609 J610 J611 J2082 J2084 J2085 J2083 J2101 J2102 J2103 J2104 J2105 J2096 J2091 J2093 J2088 MAKER MAKER PS14 PS13 PS15 MS351-1 MS352-1 MS406-1...
  • Page 368 Part 5: Maintenance BJ-W9000 9.2 System Controller System Controller (1/7) C580 FB574 FBMH2016HM251N 0.1u IC574A SW401 (P.6) SCK0-CFG SSGM18 74HC08 IC454D RA409 IC574B (P.6) TXD0-CFG 74HC00 74HC08 IC574C (P.1) XRESET (P.4) SDT-S2 C IC574D R594 R595 R596 74HC08 (P.4) (P.7)
  • Page 369 Part 5: Maintenance BJ-W9000 System Controller(2/7) (P.7) FB431 (P.1) CP431 C431 CPUA[21..0] CPUD0 CPUD8 0.1u FBMH2016HM251N CPUD1 CPUD9 (P.7) DIR0 CPUD2 CPUD10 (P.1) CPUD[15..0] RA435 RA431 CPUD3 CPUD11 (P.3,4,5,7 ) D[15..0] CPUD0 FB439 C439 CPUD4 CPUD12 FB435 C435 CPUD1 0.1u...
  • Page 370 Part 5: Maintenance BJ-W9000 System Controller(3/7) (P.2) IC451 IC453 (P.2) (P.1) (P.1) D[15..0] A[21..0] CPUA[21..0] CPUD[15..0] RA454 DQ15/A_1 CPUD15 CPUA12 I/O15 DQ14 CPUD14 CPUA11 I/O14 DQ13 CPUD13 CPUA10 I/O13 DQ12 CPUD12 CPUA9 I/O12 DQ11 CPUD11 CPUA8 I/O11 DQ10 CPUD10 CPUA7...
  • Page 371 Part 5: Maintenance BJ-W9000 System Controller(4/7) IPC i/f2 Head-Con-i/f1 Head-Con-i/f2 C481 FB481 J409 J403 0.1u J404 FBMH2016HM251N (P.6) (P.2) (P.2) /SET-PATH 4 IA[7..0] IA[7..0] (P.4) (P.4) (P.2) (P.2) HA[13..0] HA[13..0] (P.4,6 ) (P.4) (P.4) (P.4 ) C485 FB485 PCD[3..0] PCD3 (P.4 )
  • Page 372 Part 5: Maintenance BJ-W9000 System Controller(5/7) FB521 FBMH2016HM251N FB523 FBMH2016HM251N FB522 FBMH2016HM251N 3.3V FB524 FBMH2016HM251N 3.3V C521 C522 3.3V C523 C524 RA521 0.1u 0.1u 0.1u 0.1u J401 DBP1 DBP0 (P.6) /SCSI-WR DBWR/ REQ/ (P.6) /SCSI-DACK DACK/ R521 (P.6) /SCSI-DREQ DREQ...
  • Page 373 Part 5: Maintenance BJ-W9000 System Controller(6/7) PIXD[15..0] CPUD[15..0] A[21..0] RA541 RA575 RA576 RA577 RA548 (P.4 ) PYD3 PYD[3..0] PYD2 (P.1) TXD0-CFG PYD1 (P.1) SCK0-CFG CP541 PYD0 (P.1) (P.4 ) /STATU S PMD3 PMD[3..0] (P.1) CONF-DONE PMD2 (P.1) /INIT -DONE PMD1 (P.1)
  • Page 374 Part 5: Maintenance BJ-W9000 System Controller(7/7) IC572A RA573 (P.2,3,4, 5) D[15..0] (P.7) XTAL1 /LED0 NF572 EMIFIL (P.7) LED571 SML-210VT /OUT /LED1 R584 R587 (P.6) (P.7) LED572 SML-210VT CLK40A PLD-CK40M /LED2 NF573 EMIFIL (P.7) LED573 SML-210VT CLK40B /LED3 R585 R588 (P.5) (P.7)
  • Page 375 Part 5: Maintenance BJ-W9000 9.3 Image Process Controller I P controller(1/8) V C C C D [ 3 . . 0 ] J 1 5 0 1 C D 0 P4(IC1571-2..7 ) C D 0 C D 1 C D 1...
  • Page 376 Part 5: Maintenance BJ-W9000 V C C I P controller(2/8) F B 1 5 3 1 C 1 5 3 1 C 1 5 3 2 C 1 5 3 3 C 1 5 3 4 C 1 5 3 5...
  • Page 377 Part 5: Maintenance BJ-W9000 V C C I P controller(3/8) F B 1 5 5 1 C 1 5 5 1 C 1 5 5 2 C 1 5 5 3 C 1 5 5 4 C 1 5 5 5...
  • Page 378 Part 5: Maintenance BJ-W9000 V C C I P controller(4/8) F B 1 5 7 1 C 1 5 7 1 C 1 5 7 2 C 1 5 7 3 C 1 5 7 4 C 1 5 7 5...
  • Page 379 Part 5: Maintenance BJ-W9000 I P controller(5/8) V C C F B 1 5 9 1 C 1 5 9 1 C 1 5 9 2 C 1 5 9 3 C 1 5 9 4 C 1 5 9 5...
  • Page 380 Part 5: Maintenance BJ-W9000 I P controller(6/8) P4(IC1571-78..88) P2(IC1531-91..101) P2(IC1531-130..139) R[7..0] Y_CLC_D[7..0] Y_HSC_A[16..0] Y_HSC_D[7..0] IC1611 IC1612 Y _ C L C _ D 0 P2(IC1531-107..129) Y _ H S C _ A 0 Y _ H S C _ D 0...
  • Page 381 Part 5: Maintenance BJ-W9000 I P controller(7/8) P2(IC1531-225) P2(IC1531-197..200) P2(IC1531-219..224) P2(IC1531-164..174) Y_ER1_A[13..0] Y_ER1_D[3..0] Y_ER2_A[13..0] Y_ER2_D[3..0] Y_RND_A[14..0] Y_RND_D[7..0] IC1631 IC1632 IC1633 P2(IC1531-179..195) Y _ E R 1 _ A 0 Y _ E R 1 _ D 0 P2(IC1531-203..218) Y _ E R 2 _ A 0 Y _ E R 2 _ D 0 P2(IC1531-141..163)
  • Page 382 Part 5: Maintenance BJ-W9000 I P controller(8/8) P2(IC1531-251..260) P2(IC1531-232..250) Y_MP1_D[7..0] Y_MP1_A[14..0] Y_FF1_DI[7..0] IC1651 IC1652 P2(IC1531-277..284) Y _ M P 1 _ A 0 Y _ M P 1 _ D 0 Y _ M P 1 _ D 0 Y _ F F 1 _ D I 0...
  • Page 383 Part 5: Maintenance BJ-W9000 9.4 Head Controller Head controller(1/4) D R M D T I _ A [ 1 5 . . 0 ] D R M D T I _ A 0 D R M D T O _ A 0...
  • Page 384 Part 5: Maintenance BJ-W9000 Head controller(2/4) D R M D T I _ B [ 1 5 . . 0 ] R A 212 D R M D T I _ B 0 D R M D T O _ B 0...
  • Page 385 Part 5: Maintenance BJ-W9000 Head controller(3/4) D R M D T I _ C [ 1 5 . . 0 ] R A 223 D R M D T I _ C 0 D R M D T O _ C 0...
  • Page 386 Part 5: Maintenance BJ-W9000 Head controller(4/4) D 5 V D 5 V J201 D 5 V R213 4 7 K R214 R215 C D 0 R217 IC213 C D 2 4 7 K R216 D 3 VA X C R E Q...
  • Page 387 Part 5: Maintenance BJ-W9000 9.5 Carriage Controller Carriage controller(1/11) SDT-RS2C XRST SCK-C2ETC SDT-C2BF XCS-232C XCS-LICC2 XCS-D/A XCS-LICC1 D[7:0] A[15:0] RA811 47,0.063 W RA809 RA842 47,0.063 W 47K,0.063 W RA858 C874 47K,0.063 W 47U,10V 47u,10V C875 IC838 0.1U,25V XFRES PIA4 XRESET...
  • Page 388 Part 5: Maintenance BJ-W9000 Carriage controller(2/11) +3.3R +3.3R R1137 X801 FB805 FB832 0,1A/NOTMNT FBMH2016HM251N FBMH2016HM251N K50-3C1-E32.0000M Q827 R1133 IC844 2SJ355 4.7K,1/16W/NOTMNT NF833 NF832 FK2125T256AL FK2125T256AL R1131 C815 R1130 2.2,1/16W 0.1U,25V 4.7K,1/16W R960 R1044 R965 R1138 IC846 R1139 47,1/16W 47,1/16W 47,1/16W 4.7K,1/16W...
  • Page 389 Part 5: Maintenance BJ-W9000 Carriage controller(3/11) R1067 D808 47,1/16W RB521S-30 FU801 Q823 ICP-S0.5 2SJ377 +3.3R D803 IC821 RB521S-30 R929 BA033FP C826 1,1/4W 1U,50V C897 C889 C890 C827 R802 R930 1U,50V 47U,10V 0.1U,25V 1U,50V 47K,1/16W 47u,10V 4.7K,1/16W R980 RGV5 2K,1/16W Q824 2SC4081 10.3V...
  • Page 390 Part 5: Maintenance BJ-W9000 Carriage controller(4/11) IC837 R981 RA837 2K,1/16W 3.3K,0.063 W SH-TRG SCK-C2ETC SDT-C2ETC XCS-LICC2 XCS-LICC1 TH-IN RANK-1 DS-OUT1A DS-OUT1B C898 C899 10.3V 10U,10V 0.1U,25V RA853 SH_TRG 100,0.063 W IDIN RANK-BK1 RNK1 THIN RANK-UC1 RNK2 GND/DIK IC823 R1107 RANK-CY1...
  • Page 391 Part 5: Maintenance BJ-W9000 Carriage controller(5/11) 10.3V CR-DENS D810 R975 RB521S-30 330K,1/16W C839 C838 C825 10U,16V 0.1U,25V 1000P,50V R1021 4.7K,1/16W R977 IC808 4.7K,1/16W R979 IC845 1K,1/16W IC809 C970 UPC393G2 0.1U,25V XREG IC807 NJM2904M R1022 R976 R978 R1002 330K,1/16W 2K,1/16W 10K,1/16W 4.7K,1/16W...
  • Page 392 Part 5: Maintenance BJ-W9000 Carriage controller(6/11) FB806 FBMH2016HM251N/NOTMNT A[9:0] IC815 CY7C185-35SC/NOTMNT R1056 47K,1/16W/NOTMNT R1140 47K,1/16W/NOTMNT BANK-10 BANK-[13:10] BANK-11 J813 R1121 BANK-12 47,1/16W J813 I/O7 SDT-RS2C J813 I/O0 I/O6 SDT-C2RS RA802 I/O1 J813 I/O5 47,0.063 W/NOTMNT R1122 I/O2 I/O4 47,1/16W I/O3 RA801 47,0.063 W/NOTMNT...
  • Page 393 Part 5: Maintenance BJ-W9000 Carriage controller(7/11) CP809 10.3V CP806 NF829 NFM61R30T472 J801 J803 J805 J32P J801 J803 VH-GND VH-GND J32P J32P J805 J32P J801 J803 J32P J32P J805 R1018 J32P J801 J803 1K,1/16W VH-GND J32P J32P J805 VH-GND J801 J803...
  • Page 394 Part 5: Maintenance BJ-W9000 Carriage controller(8/11) RA857 RA836 RA835 IF5V-1 47K,0.063 W 47K,0.063 W 47K,0.063 W J802 J804 J802 J50P J804 J50P FBA817 BK32164M601 J50P J802 J50P J804 PXD-O11 XPOS-M2C PXD-O11 RA848 FBA823 J804 J802 J50P J50P FBA817 BK32164M601 47,0.063 W...
  • Page 395 Part 5: Maintenance BJ-W9000 Carriage controller(9/11) HBE2H-0 HBE1H-0 J806 J807 J806 R859 J807 J50P J50P J806 180,1/16W J807 J50P R858 J50P J806 J807 J50P 180,1/16W J50P R833 R857 180,1/16W J806 J807 J50P J50P 180,1/16W R834 R856 J806 J807 J50P 180,1/16W...
  • Page 396 Part 5: Maintenance BJ-W9000 Carriage controller(10/11) J808 J809 J808 J50P J809 J50P J808 J50P J809 J50P J808 J50P J809 J50P J808 J50P J809 J50P J808 J50P J809 J50P FBA808 J808 BK32164M601 J50P J809 J50P FBA808 BK32164M601 J808 J50P FBA808 J809...
  • Page 397 Part 5: Maintenance BJ-W9000 Carriage controller(11/11) IC819 IC808 IC822 IC837 IC826 IC841 IC838 IC843 IC845 C879 C851 C903 C859 C919 C863 C862 C886 C811 0.1U,25V 0.1U,25V 0.1U,25V 0.1U,25V 0.1U,25V 0.1U,25V 0.1U,25V 0.1U,25V 0.1U,25V IC843 IC808 REG-SEL1 REG-SEL0 FB824 FB810 FB812...
  • Page 398 Part 5: Maintenance BJ-W9000 9.6 Mecha Controller Mecha Controller(1/11) PA8-[7:0] OUT PORT To (3/11),(9/11),(11/11) PA7-[7:0] 47K,0.063 W From (8/11),(9/11) IN PORT RA605 RA606 47K,0.063 W D[7:0] XRST XCS0 C652 C653 10U,10V 0.1U,25V PA7-3 PA7-2 PA7-1 A0/HWRB A[3:0] PA7-0 PA6-7 PA6-[7:0]...
  • Page 399 Part 5: Maintenance BJ-W9000 Mecha Controller(2/11) IN+OUT PORT PB8-[7:0] [7..4] IN NO USE [3..0] OUT PB7-[7:0] to (7/11),(9/11),(10/11) OUT PORT D[7:0] XRST XCS1 C655 C654 10U,10V 0.1U,25V PB7-3 PB7-2 PB7-1 A[3:0] A0/HWRB PB7-0 PB6-7 PB6-[7:0] from (7/11),(10/11) IN PORT PB6-6...
  • Page 400 Part 5: Maintenance BJ-W9000 Mecha Controller(3/11) FU606 ICP-S2.3 J601 J601 DOOR PA8-[7:0] J601 WJ60 J601 WJ60 J601 J601 WJ60 WJ60 WJ60 J601 J601 WJ60 WJ60 J601 J601 WJ60 R660 R662 J601 WJ60 J601 220,1/16W 47,1/16W WJ60 PA8-4 LF-ENCB LF-ENCB H5V-ON...
  • Page 401 Part 5: Maintenance BJ-W9000 Mecha Controller(4/11) FU616 +24V ICP-S1.0 J603 IC616 J603 PA8-[7:0] TA8428K YELLOW R725 +24V FU609 PA8-6 ICP-S1.0 OUT1 1K,1/16W J603 R726 OUT2 YELLOW PA8-7 1K,1/16W J603 J602 BLUE D607 RB400D J602 J603 RA650 ARVAL-CL0 PA4-[7:0] 2.2K,0.063 W...
  • Page 402 Part 5: Maintenance BJ-W9000 Mecha Controller(5/11) RA617 220,0.063 W RA617 220,0.063 W HIINK-FULL RA617 220,0.063 W MAINK-FULL FROM (6/11) RA617 220,0.063 W IC612 YEINK-FULL 4051 R692 YEINK-EMP 100K,1/16W C691 C667 C696 1U,50V INHIBIT 4700P,50V 1U,50V C704 R702 R691 100K,1/16W 100K,1/16W...
  • Page 403 Part 5: Maintenance BJ-W9000 Mecha Controller(6/11) R642 47K,1/16W RA632 PA0-[7:0] 1K,0.063 W J604 PA0-6 FU613 +24V ICP-S1.0 PG-MOT IC604 C647 C717 MTD2003 J604 47U,35V 0.047U,50V D618 PA2-[7:0] RB400D J604 C625 RA656 WIP-CL 1000P,50V 2.2K,0.063 W PA2-3 Q622 J604 2SK3065 PGMOT-XB...
  • Page 404 Part 5: Maintenance BJ-W9000 Mecha Controller(7/11) J605 J605 SENS-5V PB6-[7:0] RA622 RA623 47K,0.063 W 47K,0.063 W RA635 PB3-[7:0] J605 1K,0.063 W J605 PB6-2 FBACK-SENS J605 PB3-7 NO USE J605 PB3-6 NO USE PB3-5 NO USE PB3-4 NO USE J605 J605...
  • Page 405 Part 5: Maintenance BJ-W9000 Mecha Controller(8/11) RA628 RA624 47K,0.063 W 47K,0.063 W PB4-[7:0] PB4-7 NO USE PB4-6 NO USE PB4-3 NO USE PB4-2 NO USE PB4-1 NO USE J606 PB4-[7:0] PB4-0 NO USE R620 J606 1K,1/16W RA626 ROLLPSK-SENS1 PB4-4 4.7K,0.063 W...
  • Page 406 Part 5: Maintenance BJ-W9000 Mecha Controller(9/11) +24V FU602 PB7-[7:0] ICP-S1.0/NOTMNT J608 J608 D601 FU608 RB400D/NOTMNT +24V J608 RESERVE-FAN2 ICP-S1.0 J608 D612 RB400D J608 RA642 J608 VERFEED-CL 2.2K,0.063 W PB7-6 Q609 2SK3065 J608 RA639 PA8-[7:0] RA642 J608 RESERVE-FAN1 2.2K,0.063 W 4.7K,0.063 W...
  • Page 407 Part 5: Maintenance BJ-W9000 Mecha Controller(10/11) J609 +24V SENS-5V PB0-[7:0] J609 RA655 J609 1K,0.063 W PB0-6 FU612 LSPOOL-SENS ICP-S1.0 J609 J609 J609 PB1-[7:0] J609 D614 J609 RB400D LWIND-CL PA1-[7:0] J609 RA654 2.2K,0.063 W PA1-7 NO USE PB1-4 Q612 PA1-6 NO USE...
  • Page 408 Part 5: Maintenance BJ-W9000 Mecha Controller(11/11) PA5-[7:0] +24V J611 PA5-2 J611 PA6-[7:0] PA6-[7:0] R652 J611 1K,1/4W IC601 PA6-1 PA6-0 RUCOV UCOV IC603 PA6-7 1 S02 J611 SW-COM PA6-1 RUCOV R712 4.7K,1/16W J611 XRST R648 J611 1K,1/4W PA6-2 FCOV J611 SW-COM...
  • Page 409 Part 5: Maintenance BJ-W9000 9.7 Motor Controller Motor Controller(1/6) R1211 1K (P.2) HV_ON R1200 (P.3) nCS_GA (P.6) nCS_JIG R1429 R1430 D1200 RB521S-30 (P.2) XBSY-M (P.2,4) XRESET (P.2) XIRQ-M2S RB521S-30 D1201 (P.1) LED1204 LED1205 nS_RESET (P.2) SML-210VT SML-210VT XLOWPWR (P.2) XREQ-M2S...
  • Page 410 Part 5: Maintenance BJ-W9000 Motor Controller(2/6) SYSCON J1200 (P.1) R1308 220 SDT-S2 M R1309 220 R1310 220 IC1208 (P.1) R1311 47 R1312 220 (P.1) SDT-M2S XCS-M (P.1) R1313 47 R1314 220 XBSY-M R1315 47 R1316 220 (P.3) LF-ENCV R1317 47 R1318 220 (P.1)
  • Page 411 Part 5: Maintenance BJ-W9000 Motor Controller(3/6) (P.1,6) D[15..0] IC1210A (P.4) PWM0A PWM0A (P.4) PWM0B PWM0B PWM1A PWM1B PWM2A PWM2B (P.4) PHACK PHACK (P.4) PHAEN PHAEN (P.4) PHBCK PHBCK (P.4) PHBEN PHBEN (P.4) PHCCK PHCCK (P.4) PHCEN PHCEN (P.4) PWM0ON PWM0ON...
  • Page 412 Part 5: Maintenance BJ-W9000 Motor Controller(4/6) IC1213 R1361 1K (P.3) PWM0B OUT1 J1206 C1234 C1235 R1362 1K BOOT1 R1363 10/2W (P.3) 0.015u PWM0A LF_MOT 0.022u R1364 1K OUT2 (P.3) PWM0ON ENABLE C1236 BOOT2 0.015u CR_MOT Q1201 D1213 D1214 R1365 4.7K...
  • Page 413 Part 5: Maintenance BJ-W9000 Motor Controller(5/6) R1394 J1202 R1395 47 R1396 47 175487-4 R1397 3.3K IC1218A R1398 10K R1399 30K UPC393G2 R1400 R1401 20K IC1216C R1402 74HC14 R1403 3.3K R1404 IC1218B R1405 R1406 39K R1407 3.3K IC1219A Q1208 74HC125 2SA950Y...
  • Page 414 Part 5: Maintenance BJ-W9000 Motor Controller(6/6) BD[15..0] D[15..0] IC1220 BD15 BD14 BD13 J1201 BD12 BD11 BD10 (P.1,3) nRESET IC1211B (P.1) nCS_JIG (P.1) (P.6) nLED_WR C1253 0.1u 74HC32 IC1211C 74LS245 (P.1) IC1221 74HC32 BD10 BD11 IC1211D BD12 BD13 IC1216D (P.6) (P.6) nDIP_RD (P.1)
  • Page 415 Part 5: Maintenance BJ-W9000 9.8 Cut Sheet Set Ass’y Cut sheet set sensor Ass'y(1/1) R 6 7 R 6 6 P S 4 P S 5 R 6 4 R 6 5 4.7K 4.7K R 6 0 R 6 1...
  • Page 416 Part 5: Maintenance BJ-W9000 9.9 Nozzle Check Sensor Ass’y Nozzle check sensor Ass'y(1/1) 4 . 7 K R B 5 0 0 V- 4 0 R 1 4 4 7 K HOLDn L E D 1 CMP OUT LED ONn...
  • Page 417 Part 5: Maintenance BJ-W9000 9.10 Print Position Sensor Ass’y Print position sensor Ass'y(1/1) L E D 2 N S T M 5 1 5S AMP CT R 3 0 R 3 4 C 1 5 1 0 p P S 1...
  • Page 418 Part 5: Maintenance BJ-W9000 9.11 Skew Sensor Ass’y Skew sensor Ass'y (1/1) R 4 6 R 4 7 P S 2 P S 3 R 4 4 R 4 5 4.7K 4.7K R 4 0 R 4 1 Q 2 0...
  • Page 419 Part 5: Maintenance BJ-W9000 9.12 Option Connector Ass’y Option Connector Ass'y (1/1) J 1 4 J 1 3 2 4 V G N D G N D 5-199...
  • Page 420 SERVICE MANUAL...
  • Page 421 I. ABOUT THIS MANUAL This manual is divided into five parts containing the information required for servicing the BJC-6000 printer. Part 1: Safety and Precautions This part contains information on how to service the unit safety. It is very important, and must be read. Part 2: Product Specifications This part outlines the product and its specifications.
  • Page 422 II. TABLE OF CONTENTS Part 1: SAFETY AND PRECAUTIONS 1 - 1 1. SAFETY PRECAUTIONS 1 - 1 1.1 Moving Parts of the Take-up Unit 1 - 1 1.2 Electrical live port in the Take-up Unit 1 - 2 2. PRECAUTIONS WHEN TRANSPORTING/ SHIPPING THE WINDING UNIT 1 - 3 3.
  • Page 423 III. ILLUSTRATION INDEX Part 1: SAFETY AND PRECAUTIONS Page 1 - 1 Figure 1- 1 Moving parts of the winding unit 1 - 2 Figure 1- 2 The fixing screws to secure the arm of the paper sensor Part 2: PRODUCT SPECIFICATIONS 2 - 1 Figure 2- 1 Part 3: INSTALLATION...

  • Page 424: Part 1: Safety And Precautions

    Part 1 SAFETY AND PRECAUTIONS Page 1 - 1 1. SAFETY PRECAUTIONS 1 - 1 1.1 Moving Parts of the Take-up Unit 1 - 1 1.2 Electrical live part in the Take-up Unit 1 - 2 2. PRECAUTIONS WHEN TRANSPORTING/ SHIPPING THE WINDING UNIT 1 - 3 3.

  • Page 425: Safety Precautions

    TU-01 Part 1: Safety and Precautions 1. SAFETY PRECAUTIONS 1.1 Moving Parts of the Take-up Unit Be careful not to get your hair, clothes, or accessories caught in the moving parts of the take-up unit. The moving parts include the cardboard tube holder assembly, driven by the motor for paper winding, and the arm of the paper sensor.

  • Page 426: Precautions When Transporting

    Part 1: Safety and Precautions TU-01 2. PRECAUTIONS WHEN TRANSPORTING/SHIPPING THE TAKE-UP UNIT When transporting the take-up unit, fix the arm of the paper sensor with the screws and then pack the unit. Fixing screw Figure 1-2 The fixing screws to secure the arm of the paper sensor...

  • Page 427: Precautions When Servicing The Take-Up Unit

    TU-01 Part 1: Safety and Precautions 3. PRECAUTIONS WHEN SERVICING THE TAKE-UP UNIT 3.1 Precautions When Disassembling/Re-assembling the take-up Unit The Parts Catalog describes the procedures for the disassembly/re-assembly of the take-up unit. See this Catalog when re-assembling/disassembling the unit. Also see Part 5: 1.1 Disassembly/Assembly for precautions to take when disassembling/re- assembling the unit.

  • Page 428: Part 2: Product Specifications

    Part 2 PRODUCT SPECIFICATIONS Page 2 - 1 1. OVERVIEW AND FEATURES OF PRODUCT 2 - 1 1.1 External View/Configuration 2 - 1 1.2 Operation/Switches 2 - 2 2. SPECIFICATIONS...

  • Page 429: Overview And Features Of Product

    Part 2: Product Specifications 1. OVERVIEW AND FEATURES OF PRODUCT This product is an optional unit for the exclusive use of the BJ-W9000. The BJ-W9000 is capable of printing on roll paper up to 43 inches wide. The printed paper can be taken up by this winding device, which is installed on the printer.

  • Page 430: Specifications

    10.7rpm 9. Wind-up torque 0.392N•0m (4.0 Kgf•0cm) 10. Running noise 50 dB (A) or less (including the running sound from the BJ-W9000 printer) 11. Operating environment Temperature: 5-35°C Humidity: 10-90% R.H. 12. Power supply DC24V+5%/–6%, DC5V+5%/–7% (supplied from the BJ-W9000 printer) 13.

  • Page 431: Part 3: Installation

    Part 3 INSTALLATION Page 3 - 1 1. PRECAUTIONARY ITEMS IN INSTALLATION WORK 3 - 2 2. UNPACKING AND CHECKING THE PACKED ITEMS 3 - 3 3. TAKE-UP UNIT INSTALLATION...

  • Page 432: Precautionary Items In Installation Work

    TU-01 Part 3: Operations 1. PRECAUTIONARY ITEMS IN INSTALLATION WORK 1. Before installation, make sure that the power switch of printer is set to “OFF”. Also ensure that the power plug of the printer has been pulled out from the power inlet. 2.

  • Page 433: Unpacking And Checking The Packed Items

    Part 3: Operations TU-01 2. UNPACKING AND CHECKING THE PACKED ITEMS Unpack and check there is no item missing from the box and that there is no scratch or damage to any. Figure 3-1 (1) Take-up Unit Body (2) Holder Plate (Left) (3) Holder Plate (Right) (4) Paper Guide (5) Roll (1 unit)

  • Page 434: Take-Up Unit Installation

    TU-01 Part 3: Operations 3. TAKE-UP UNIT INSTALLATION 1. Remove the two media stoppers from the stacker. Stacker Media stopper Figure 3-2 The media stoppers interfere with the take-up unit. Therefore, remove CAUTION them when the take-up unit is installed. Stacker Figure 3-3 2.
  • Page 435 Part 3: Operations TU-01 3. Peel off all the protective tapes on the take-up unit. Remove the screw. Screw Figure 3-4 4. Fasten the three screws M4X6 temporarily on the printer stand as shown in the figure (both left and right). Screw Screw (Right Side)
  • Page 436 TU-01 Part 3: Operations 5. Hang the holder plates (left) and (right) onto the screws as temporarily fastened in step 4 and attach them to the stand. Then fasten the screws to fix the holder plates (both left and right). Holder plate (right) Holder plate (left) (Right Side)
  • Page 437 Part 3: Operations TU-01 7. While lifting the take-up unit a little, push the take-up unit to the rear until it stops. At that time, make sure that the hook of the holder plate engages the take-up unit. Hook of the holder plate (right) Hook of the holder Figure 3-8 8.
  • Page 438 TU-01 Part 3: Operations 9. Fix the take-up unit, using the two screws M4 x 6. Screws Figure 3-10 10. Loosen the two screws on the paper guide. Screw Figure 3-11 11. Attach the paper guide to the holder plates as follows: Insert the right pin of the paper guide into the hole of the holder plate (right).
  • Page 439 Part 3: Operations TU-01 12. Fasten the two screws to fix the paper guide as pressing the side plate (left) of the paper guide to the left. Screw Side plate (left) of paper guide Figure 3-13 13. Lead the cable from this side of the printer to the rear side. Cable Figure 3-14 14.
  • Page 440 Part 4 OPERATION OVER VIEW Page 4 - 1 1. OPERATION OVERVIEW...

  • Page 441: Part 4: Operation Overview

    TU-01 Part 4: Operation Overview 1. OPERATION OVERVIEW In AUTO mode (the AUTO/MANUAL mode switch is in the AUTO position), the take-up unit automatically winds up the printed paper. When the lever (actuator) for the paper sensor is pressed down by the printed paper, the motor begins to rotate and the paper winding starts.
  • Page 442 Part 4: Operation Overview TU-01 The signal detected by the photo interrupter is sent to the motor control circuit, which manages the ON/OFF operation of the motor. The motor drives the cardboard tube holder via the gear. Contains the motor control circuit and the motor.

  • Page 443: Part 5: Maintenance

    Part 5 MAINTENANCE Page 5 - 1 1. MAINTENANCE 5 - 1 1.1 Precautions during Disassembling or Re-assembling 5 - 1 1.2 Special Servicing Tools 5 - 1 1.3 Applying Grease 5 - 3 2. TROUBLESHOOTING...

  • Page 444: Maintenance

    TU-01 Part 5: Maintenance 1. MAINTENANCE Basically this product requires no adjustment, periodical parts replacement, or periodical maintenance work nor does it require special tools (except power extention cable) for repair/replacement. Furthermore it doesn't have assemblies or components for which dismantling is prohibited. However, observe the following precautions when disassembling or re-assembling the device: 1.1 Precautions during Disassembling or Re-assembling The following sections describe the precautions when disassembling or re-assembling...
  • Page 445 Part 5: Maintenance TU-01 - Re-assemble The ring, through which the power is conveyed from the motor to the cardboard tube, should be carefully positioned when re-assembling. If this ring is misaligned, the cardboard tube holder cannot be mounted. Mount and position the ring in the following manner before installing the cardboard tube holder.

  • Page 446: Special Servicing Tools

    TU-01 Part 5: Maintenance 1.2 Special Servicing Tools Name Note Power extension cable When troubleshooting the take-up unit that has been removed from the printer, use this cable to supply power directly to the take-up unit to check its operations. Use this extension power cable to connect the printer’s power outlet and the take-up unit’s power cable.
  • Page 447 Part 5: Maintenance TU-01 2) Motor driving side of the cardboard tube holder unit Paper guide flange Washer Inner surface of paper guide flange and washer marked portion) Figure 5-5...

  • Page 448: Troubleshooting

    TU-01 Part 5: Maintenance 2. TROUBLESHOOTING This product has no detection capability, and so doesn't provide any error-related functions such as displaying error codes/error messages, and reporting errors to the printer. The following sections use flowcharts to describe the analysis and troubleshooting tasks when problems occur during the paper winding operations.
  • Page 449 Part 5: Maintenance TU-01 <Cause> The paper sensor is not detecting the print paper. 2. AUTO mode is <Probable faulty component> unavailable. The paper sensor, the PCB, and/or the AUTO/MANUAL mode change switch. <Symptom> Although the FEED/FORWARD switch is functioning correctly, the automatic paper winding in AUTO mode can not be functioned.
  • Page 450 TU-01 Part 5: Maintenance <Cause> The power is not supplied to the motor. 3. All functions will <Probable faulty component> not work. The PCB, the motor, the power supply cable unit, and/or the paper holder unit. <Symptom> Both AUTO and MANUAL modes are unavailable. The FEED/FORWARD switch does not work.
  • Page 451 Use a mutimeter to check the power (5V and 24V) supplied Check the power supply. from the BJ-W9000 (see the circuit diagram for the test points). The power supply cable is failed. Replace the cable. Check to make sure that the 24V is supplied to the motor Check the voltage on the motor.

  • Page 452: Part 6: Appendix

    Part 6 APPENDIX Page A - 1 1. CIRCUIT DIAGRAM A - 2 2. LOCATION OF ELECTRICAL COMPONENT ON THE PCB...
  • Page 453 Part 6: APPENDIX TU-01 1. CURCUIT DIAGRAM +5VCC +5VCC +5VCC +5VCC HJM2903 PAPER SENSOR 101J Q2-3 103J 203J RN1402 105J +24VCC +5VCC L100K MOTOR L100K +5VCC AUTO/MANUAL SWITCH 2SK1273 103J MANUAL LV32A AUTO 122J FEED/FORWARD SWITCH RN1402 +24VCC +5VCC +5VCC +5VCC POWER ICP-F15...

  • Page 454: Location Of Electrical Component On The Pcb

    TU-01 Part 6: APPENDIX 2. LOCATION OF ELECTRICAL COMPONENT ON THE PCB...
  • Page 455 This document is printed on 100% recycled paper. PRINTED IN JAPAN (IMPRIME AU JAPON) CANON INC.

Table of Contents
