5.2.4

Select welding current

The user has two options for setting the required welding current:
• Using the sheet metal thickness
• Directly as welding current
The welding current is displayed in the left-hand display. The "Material thickness"
parameter can be selected in the right-hand display.
Control element Action
VOLT
JOB
PROG
5.2.5

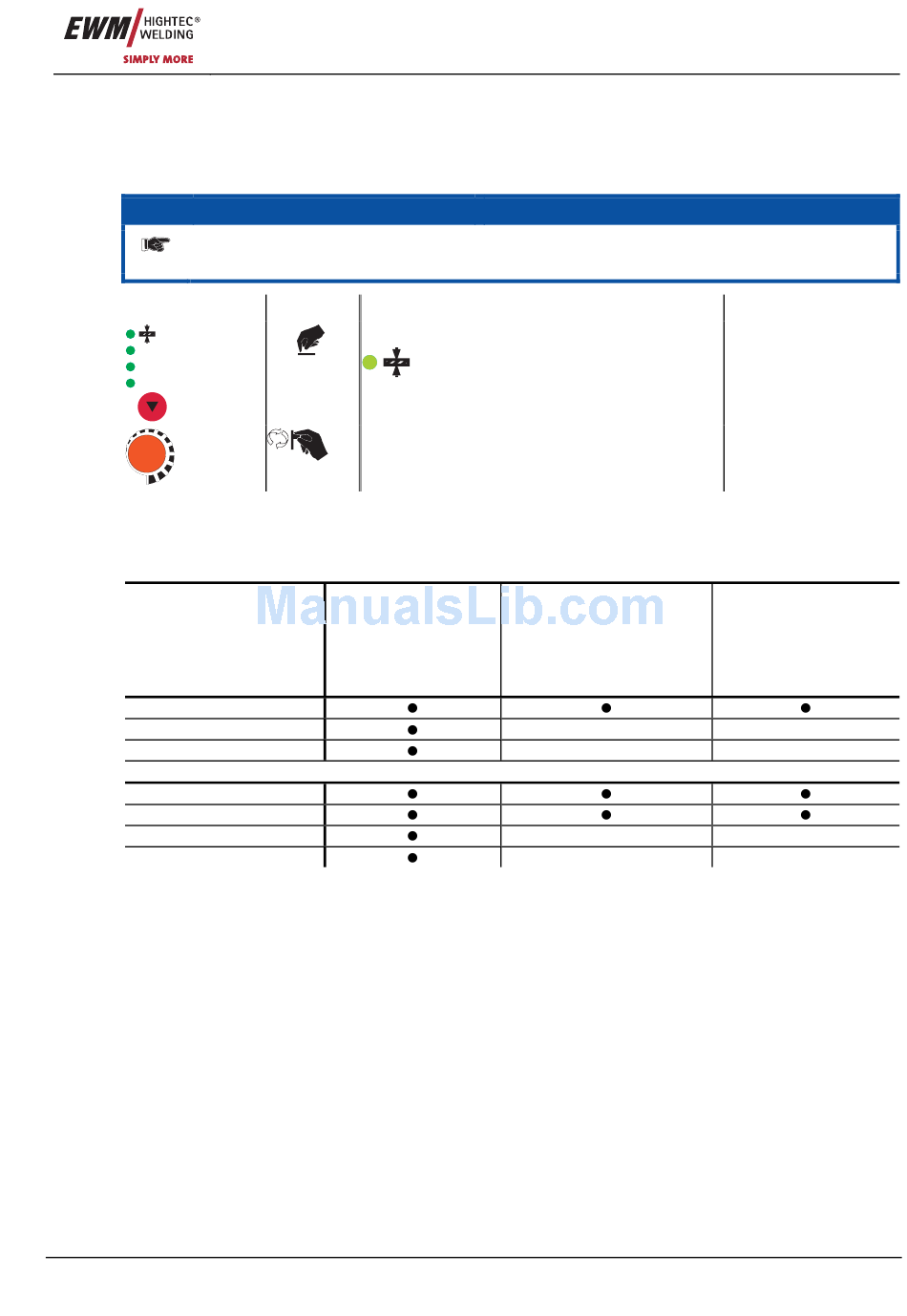

Welding data display

The following welding parameters can be displayed before (nominal values), during (actual values) or
after welding (hold values):
Parameter
Welding current
Parameter times
Parameter currents
Material thickness
Welding voltage
JOB number
Program number
When the settings are changed (e.g. welding current) after welding when the hold values are displayed,
the display will be switched to the relevant nominal values.
If the "Program number" signal light is on in addition to the "Material thickness" signal light, the user is in
program mode (programs 1-15, see chap. "Welding programs").
If the "JOB number" signal light is on in addition to the "Material thickness" light, the user is in a JOB in
the free memory (JOBs 128 to 256, see chapter "Creating a new JOB in the free memory").
Item No.: 099-000155-EWM01
Result
Press button until signal light
X x
Material Thickness comes on.
Set welding current or sheet metal thickness. Welding current and
Before welding
(nominal values)
Functional characteristics
NOTE
"Left-hand display"
During welding
(actual values)
-
-
"Right-hand display"
-
-
TIG Synergic operating principle
Display (right)
Material thickness in
mm is displayed.
sheet metal thickness
are displayed
After welding
(hold values)
-
-
-
-
27
