5.7.3

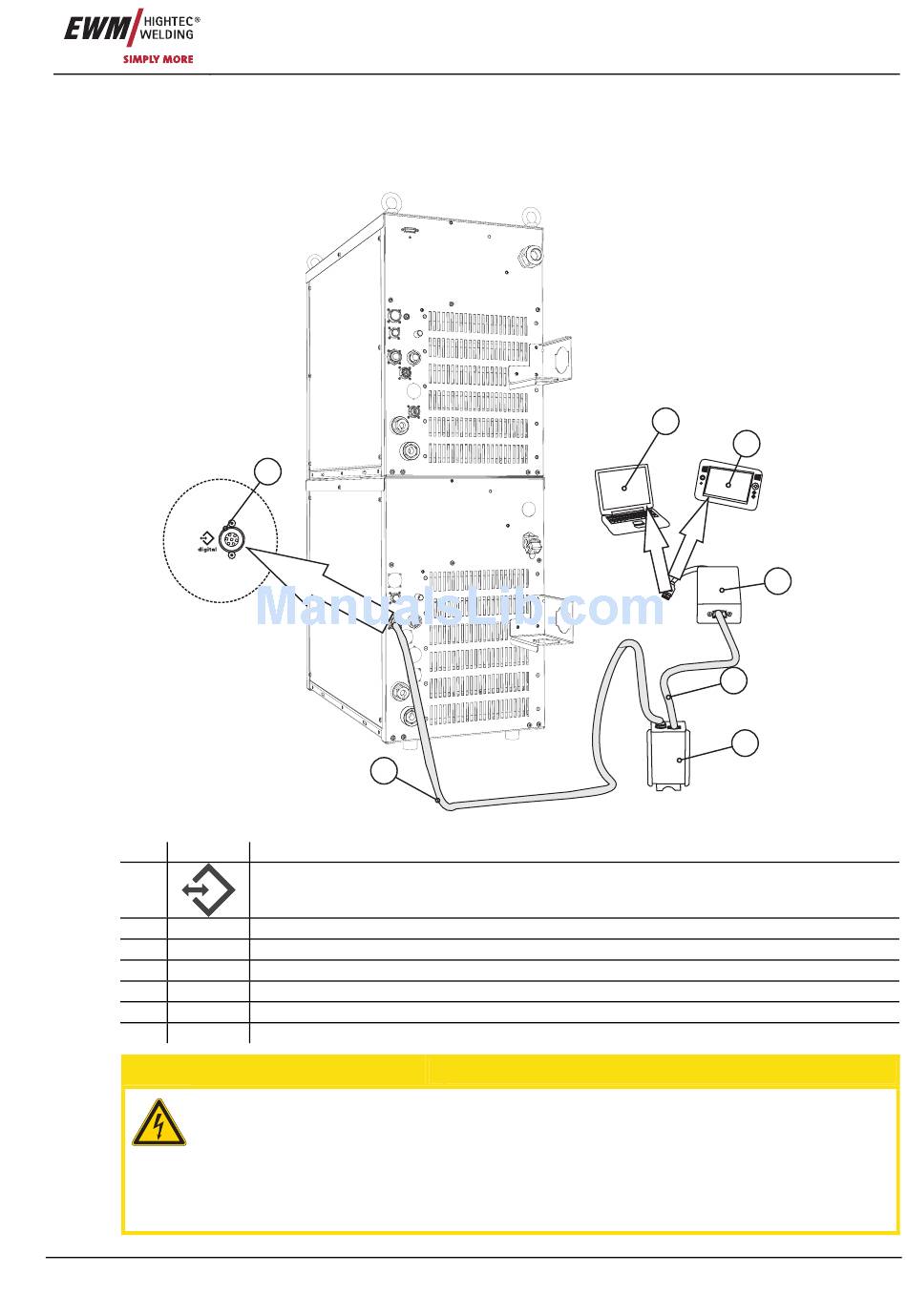

Connecting the Q-DOC 9000 welding data documentation software

(Accessories: Set consisting of software, interface, connection leads)
The ideal tool for welding data documentation of, for example:
welding voltage and current, wire speed and motor current.
Item Symbol Description
1
2
3
4
5
6
7
Equipment damage or faults may occur if the PC is connected incorrectly!
Not using the SECINT X10USB interface results in equipment damage or faults in signal
transmission. The PC may be destroyed due to high frequency ignition pulses.
• Interface SECINT X10USB must be connected between the PC and the welding machine!
• The connection must only be made using the cables supplied (do not use any additional
extension cables)!
Item No.: 099-000155-EWM01
1
7
0
7-pole connection socket (digital)
For connecting digital accessory components
Windows PC
RC300 tablet PC
SECINT X10 USB
Connection cable, 9-pole, serial
PCINT X10
Connection cable, 7-pole
Functional characteristics
Figure 5-12
CAUTION
Interfaces
2
3
4
5
6
