Connecting the welding torch and accessory components

6.7 Connecting the welding torch and accessory components
Item Symbol Description
1
2
3
4
• Insert the end of the tube package through the strain relief of the tube package and lock by turning to
the right. Where necessary, use a third party strain relief in accordance with the manufacturer's
instructions.
• Insert the welding current plug of the WF unit in the welding current connection socket "-" and lock by
turning to the right.
• Insert the control lead plug into the 7-pole connection socket (digital) and lock.
• Insert the analogue control signal cable plug into the 19-pole connection socket (analogue) and lock
by turning to the right.
• Control lead of digital Accessories plug into the 7-pole connection socket (digital) and lock.
Risk of injury due to inadequate wire feeding!
In the event of inadequate wire guidance, the welding wire can be ejected in an
uncontrolled way and cause serious injury.
• No wire feed with inadequate wire guidance!
• Check the wire guidance at regular intervals!
54
3
1
0
Connection socket, welding current -
Welding torch connection
7-pole connection socket
For connecting Control lead, Welding torch
19-pole connection socket (analogue)
Mechanised welding torch connection
7-pole connection socket (digital)
For connecting digital accessory components
2
4

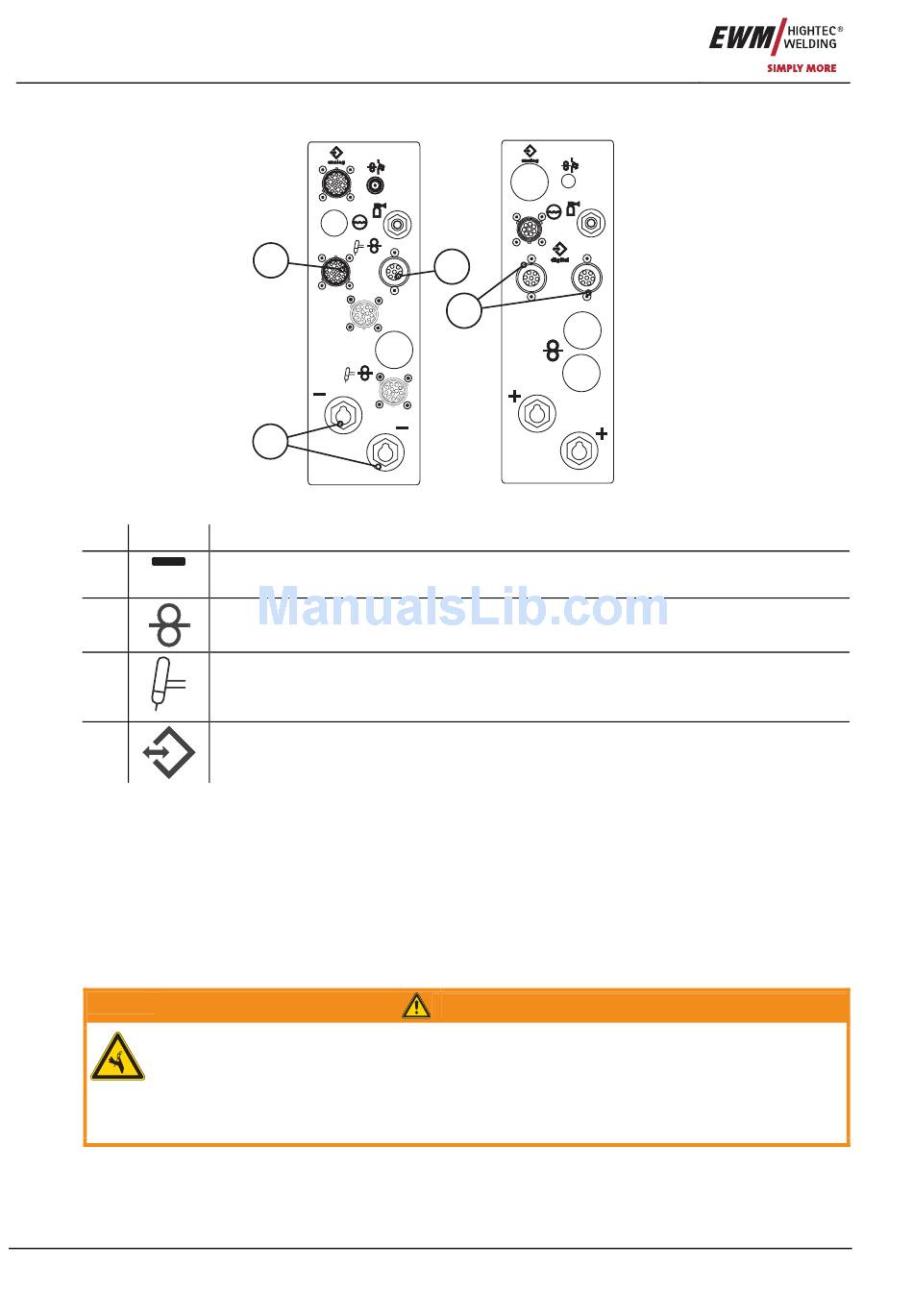

Figure 6-2
