Functional characteristics
Menus and sub-menus on the machine control
5.8.3.1

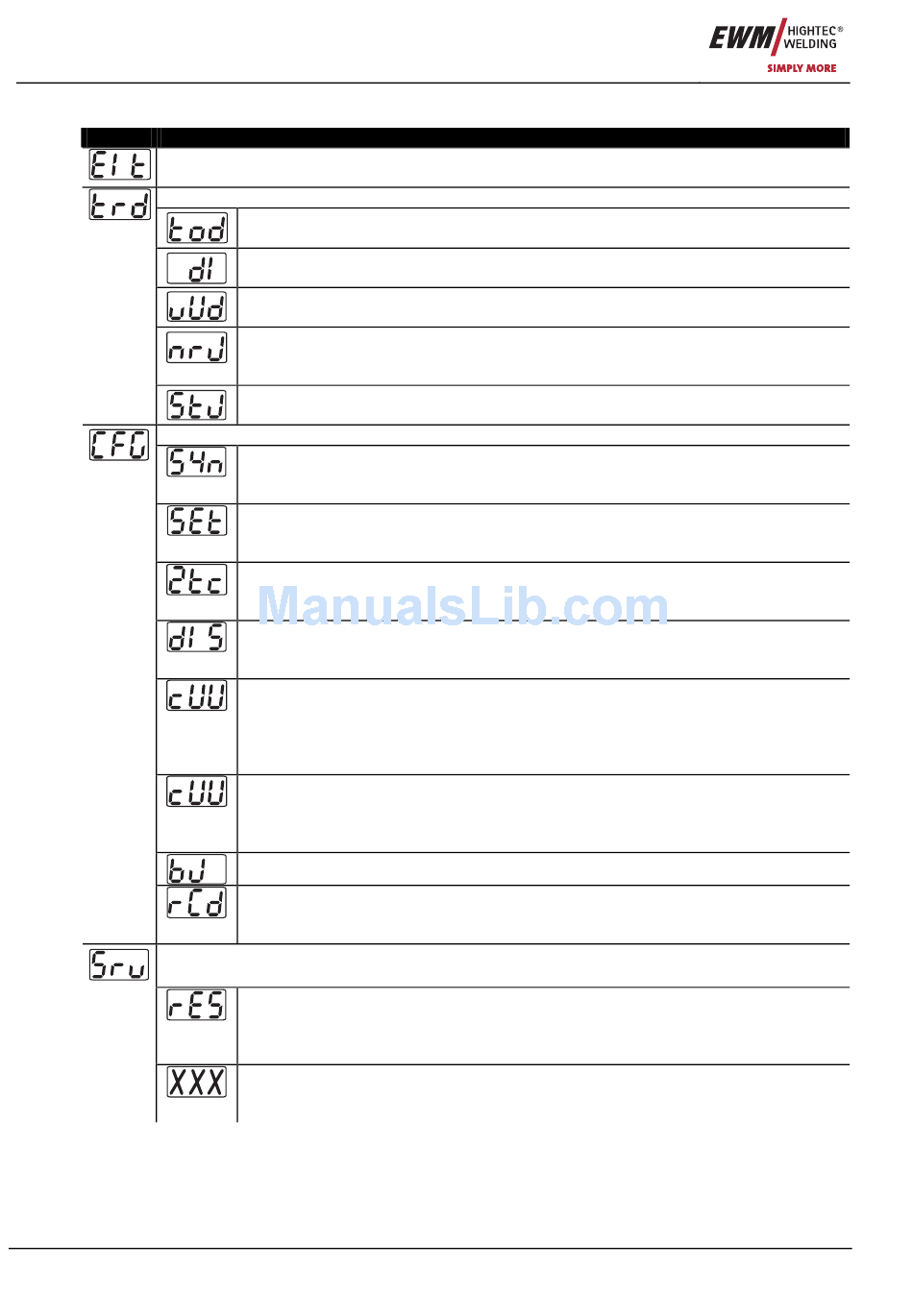

Display, explanation of symbols

Display Menu/setting/selection
Exit
Exit the machine configuration menu
Torch configuration
Machine configuration
Service
Modifications to the service menu may only be carried out by authorised maintenance staff!
50
Torch mode
Setting: 1 to 16 (factory setting 1)
1. Increment (Delta I)
Setting: 1 to 20 (factory setting 1)
Up/down speed
Setting: 1 to 100 (factory setting 10)
Number of jobs
Set maximum selectable jobs (setting: 1 to 128, factory setting 10).
Additional parameter after activating BLOCK-JOB function.
Start job
Set first job that can be called up (setting: 129 to 256, factory setting 129).
Operation method
• on = synergic method (factory setting)
• off = conventional method
Welding current display (ignition, secondary, end and hotstart currents)
• Pro = percentage display
• Abs = absolute display
Special operating mode (non-latched, C-version)
• on
• off (factory setting)
Primary display for setpoint values (right-hand display)
• vol = priority display of the welding voltage
• bld = priority display of the panel thickness
Cold wire mode
• I>0 = cold wire mode for automated applications
(wire is conveyed when current is flowing)
• 2t to 4t = non-latched to latched mode (TIG cold wire)
• off = cold wire mode switched off
Select wire electrode diameter for cold wire operation (not required for
"MANUAL" operating mode)
• JOB = wire electrode diameter is taken from the pre-selected job
• dxx = wire thickness 0.6 to 1.6 mm
RINT X11, job control for automation solutions
Power indication display (MMA)
• on = actual value display
• off = setpoint value display (factory setting)
Reset (reset to factory settings)
• off = off (factory setting)
• CFG = reset the values in the machine configuration menu
• CPL = complete reset of all values and settings
Service menu
Modifications to the service menu may only be carried out by authorised
maintenance staff!
Item No.: 099-000155-EWM01
