Functional characteristics

TIG welding

5.2.5.1

Welding parameter setting

During the welding parameter setting process, the parameter value being set is displayed on the left-hand
display. The right-hand display shows the "Factory setting" or a variation of it upwards or downwards.

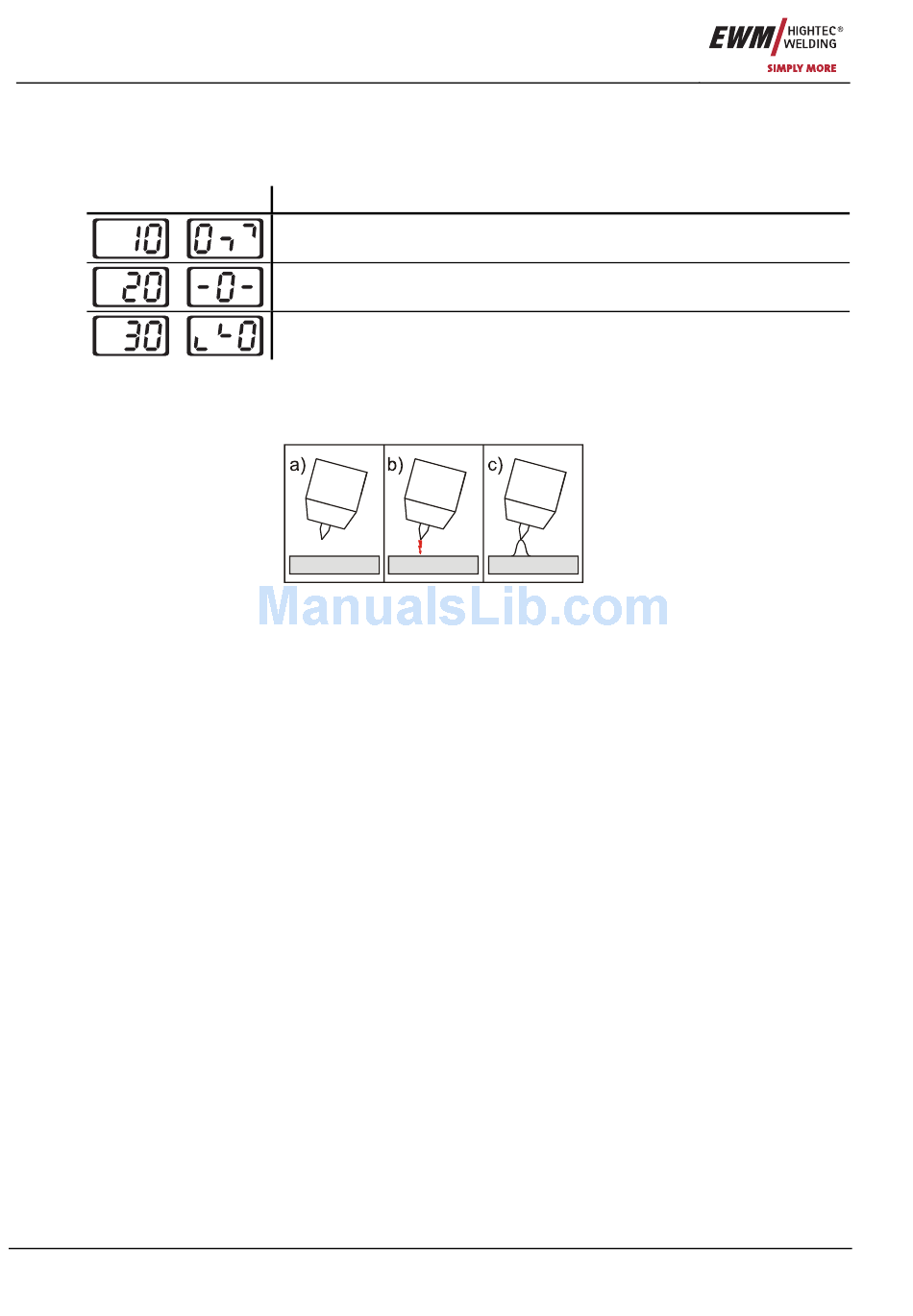

Displays, e.g. when setting the ignition current, and their meanings:
Display
5.3 TIG welding
5.3.1

Arc ignition

5.3.1.1

HF ignition

The arc is started without contact from high-voltage ignition pulses.
a) Position the welding torch in welding position over the workpiece (distance between the electrode tip
and workpiece should be approx. 2-3 mm).
b) Robot start signal (high voltage ignition pulses ignite the arc).
c) Ignition current flows. The welding process is continued according to the operating mode selected.
End the welding process: Robot stop signal or other signals depending on the operating mode
selected.
28
Meaning of the symbols shown in the right-hand display
Increase parameter value
Factory setting
Reduce parameter value
Figure 5-6
To restore the factory settings.
Parameter value is on the optimum setting
To restore the factory settings.
Item No.: 099-000155-EWM01
