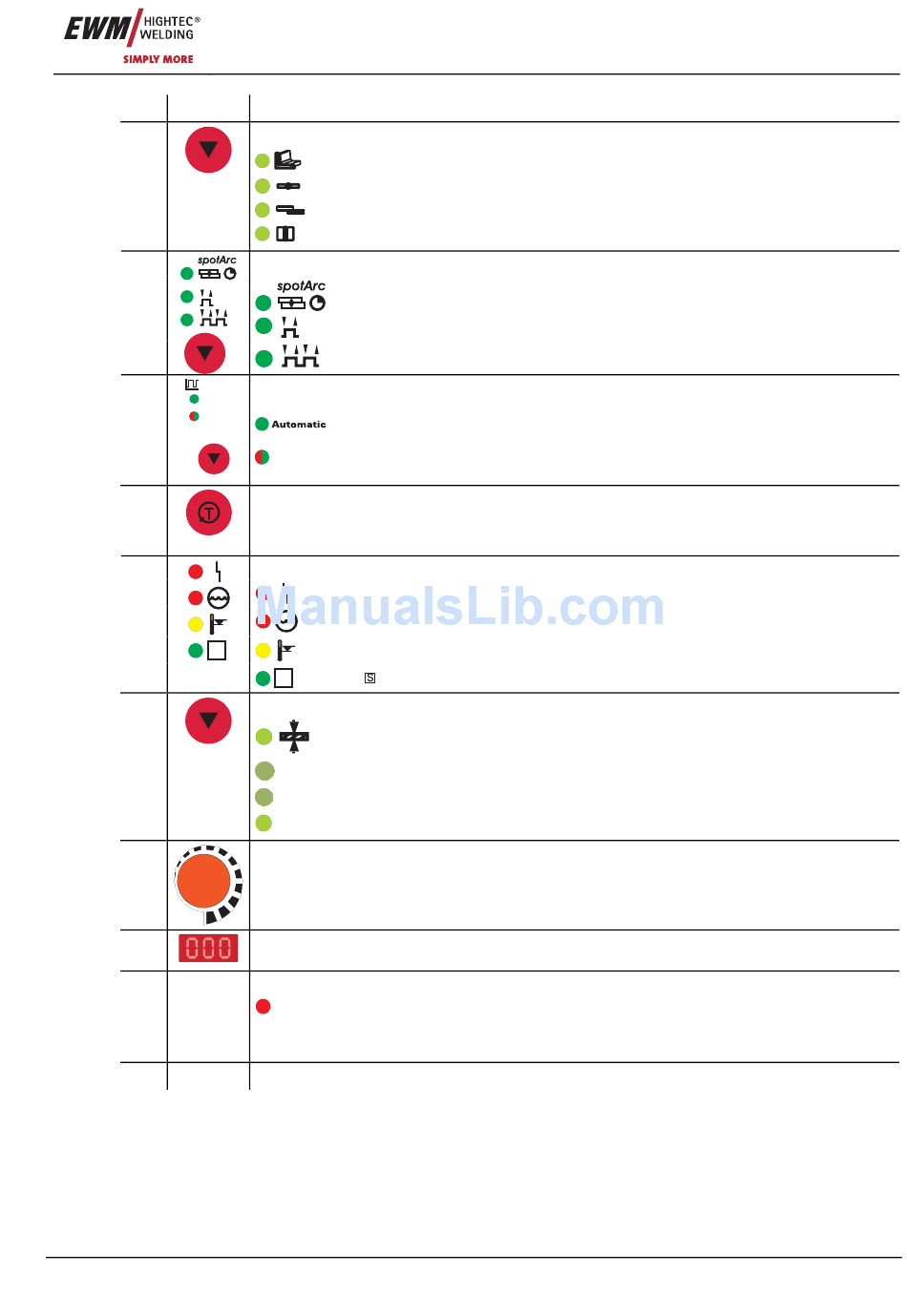

Item Symbol Description
4
5
Puls
6
Automatic
sec
kHz
7
8
S
9
10
11
12
13
Item No.: 099-000155-EWM01
0
Select seam type button
Fillet weld
Butt joint
Fillet weld - lap joint
Vertical-down
Operating mode button
spotArc (spot time setting range 0.01 sec. to 20.0 sec.)
Non-latched
Latched
TIG pulses key button / Select activArc key button
TIG automated pulses (frequency and balance)
sec
TIG pulses with times, lights up in green / Fast TIG DC pulses with
kHz
frequency and balance, lights up in red
Gas test button
Shielding gas setting/tube package 'Rinse'
Error/status indicators
Collective interference signal light (see Operating problems chapter)
Water deficiency signal light (welding torch cooling)
Excess temperature signal light
S safety sign signal light
Display switching button
Material thickness display
VOLT
Welding voltage display
JOB
JOB number display
PROG
Program number display
Welding parameter setting rotary transducer
Setting of all parameters such as welding current, sheet metal thickness, gas pre-flow
time, etc.
Three-figure LED display
Welding parameter display (see also chap. "Welding data display").
Status display
HOLD
After each completed welding task, the last values used in the welding
process for the welding current and welding voltage are shown on the
displays, and the signal light will be on
Function sequence (see next chapter)
Functional characteristics
Machine control – Operating elements
