6.7.1

Connecting the cooling module to the power source

Observe the fitting and connection instructions given in the relevant operating
instructions for the cooling unit.
Item Symbol Description
1
2
• Insert and lock the 8-pole control lead plug on the cooling unit into the 8-pole connection socket on the
welding machine.
• Insert and lock the 5-pole supply plug on the cooling unit into the 5-pole connection socket on the
welding machine.
Item No.: 099-000155-EWM01
1
0
8-pole connection socket
Cooling unit control lead
Connection socket, 5-pole
Cooling unit voltage supply
Connecting the welding torch and accessory components
NOTE

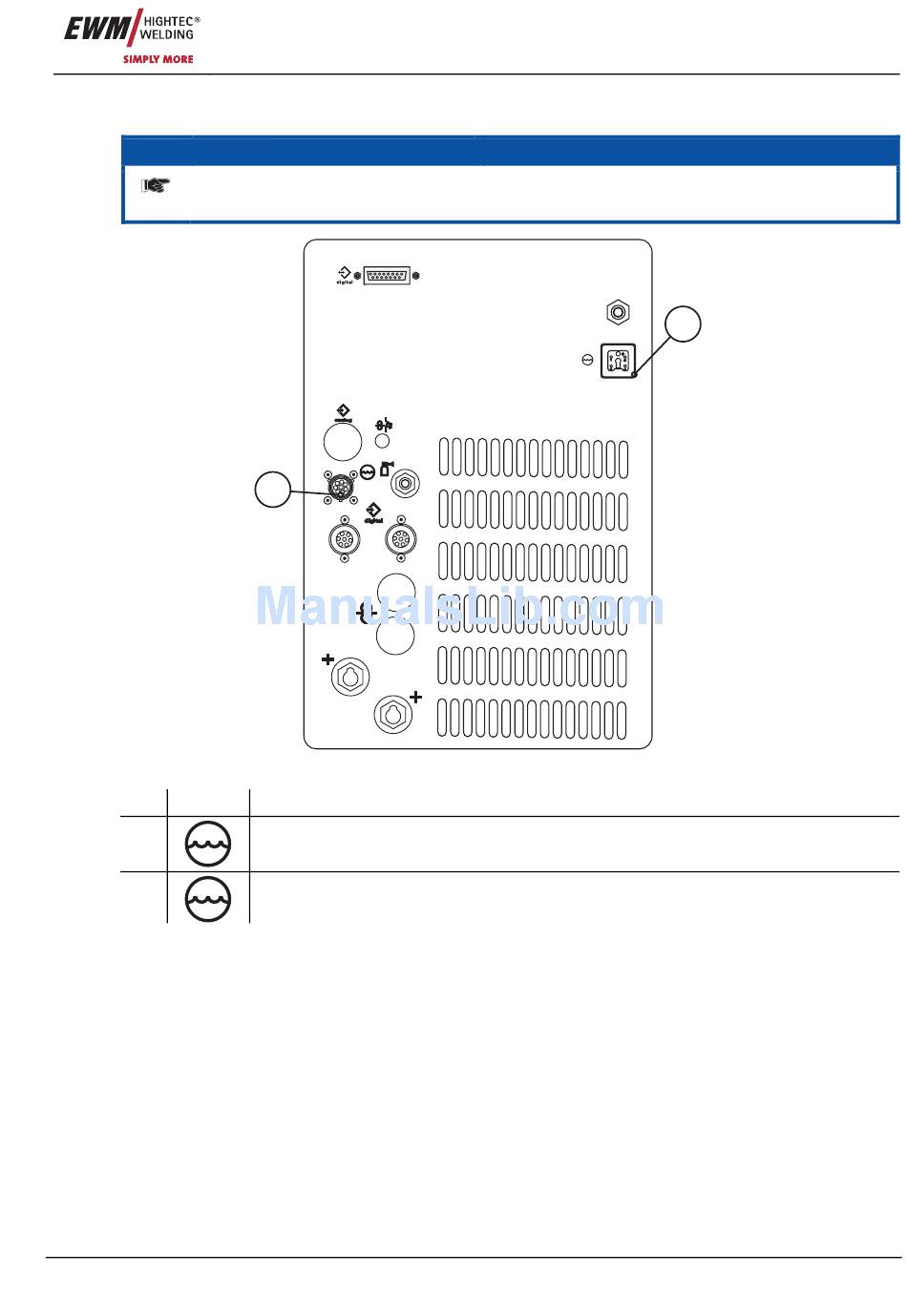

Figure 6-3
Commissioning
