2.2.6 Connecting the Strobe

then Connect Network Cable in to Paging Amplifier.
Network Cable
Plugged in to
Network Port
Operations Guide
VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299

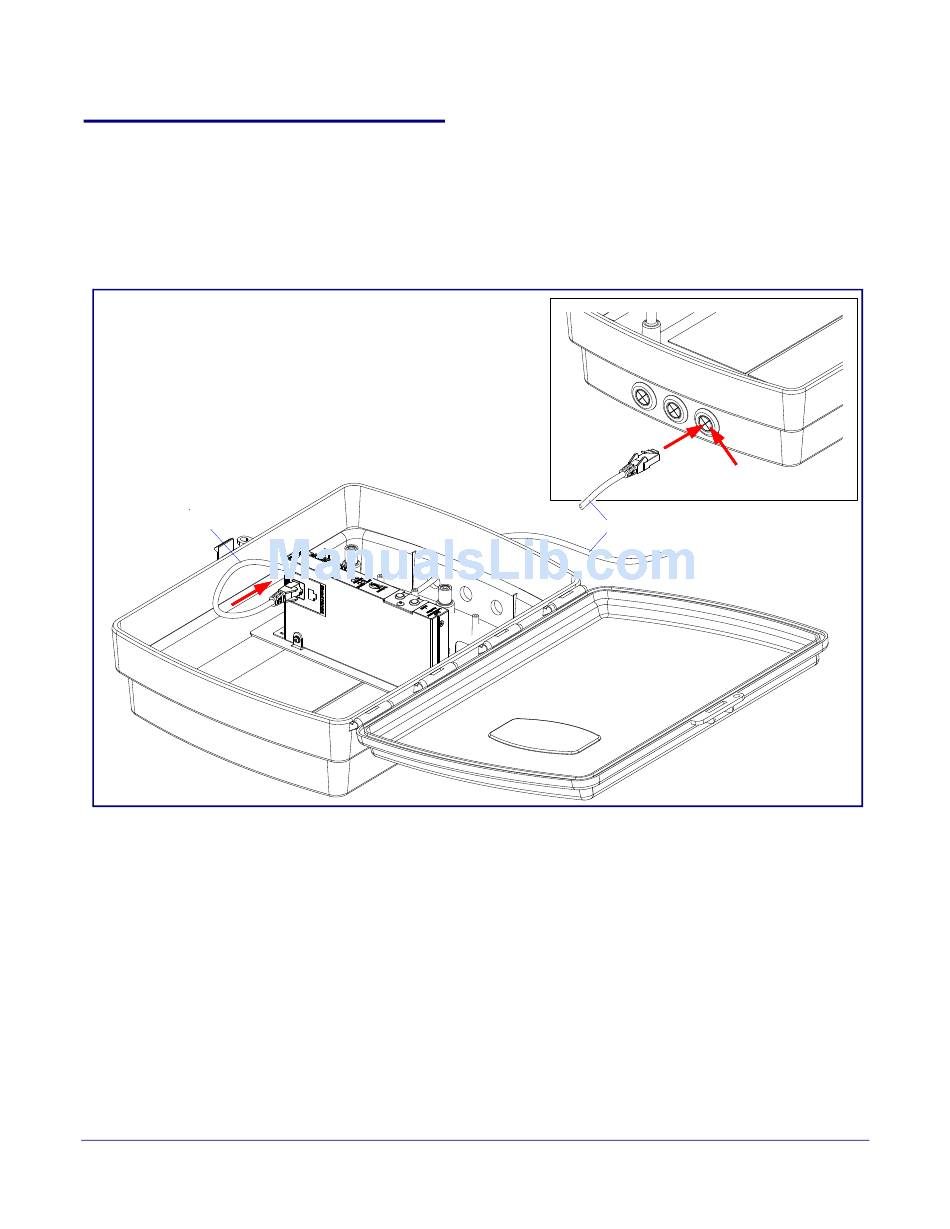

1. Insert the network cable through any available rubber grommet at the bottom of the enclosure.
See Figure 2-14.
2. Connect the Network Cable to the Paging Amplifier. See
Figure 2-14. Connecting the Strobe
931236C
SIP Loudspeaker Amplifier (PoE) Setup
Connecting the Strobe
Figure 2-14.
Rubber Grommets
Network Cable
Note:
Network Cable is Not Included.
