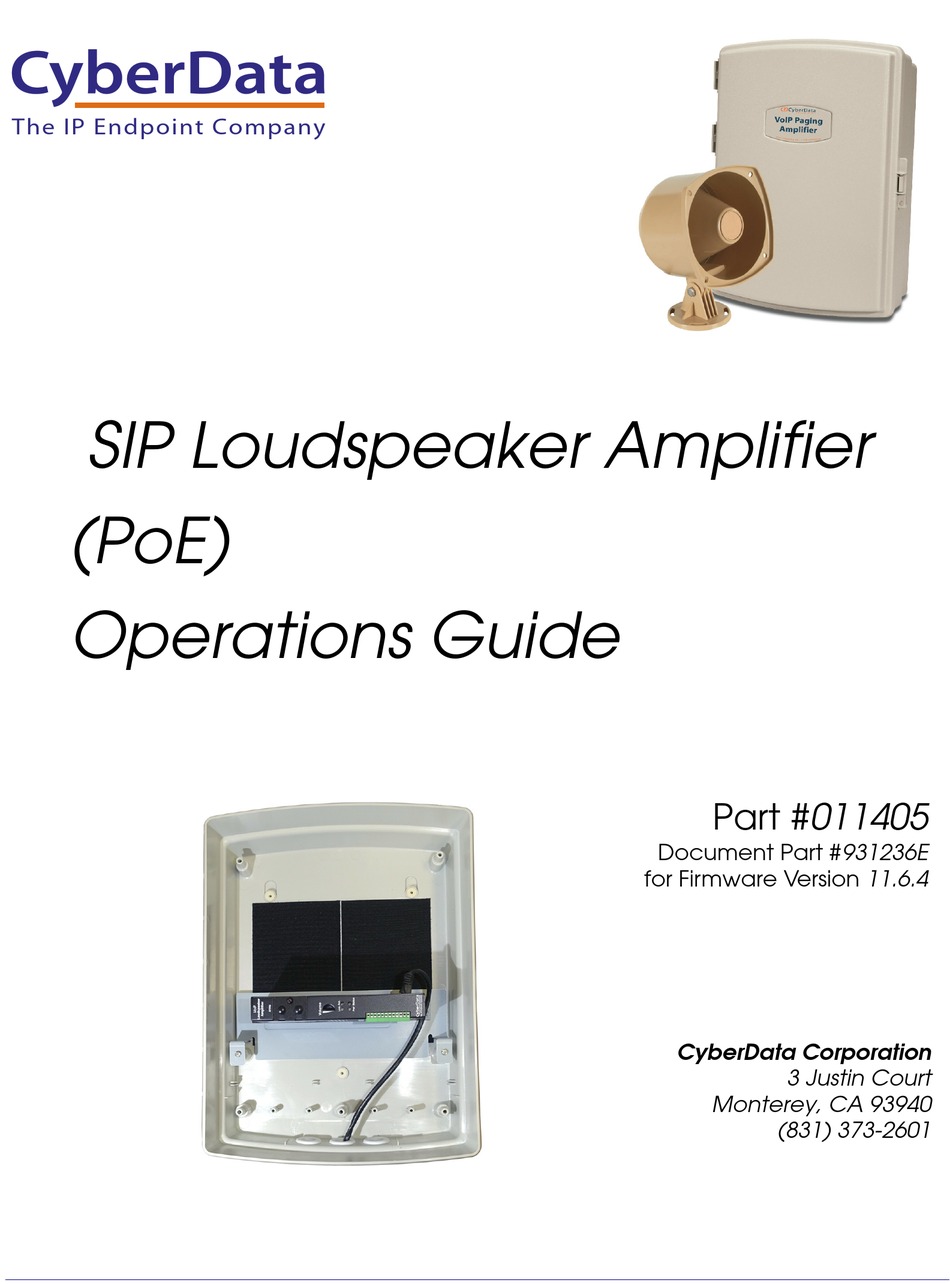

The IP Endpoint Company
SIP Loudspeaker Amplifier
(PoE)
Operations Guide
Part #011405
Document Part #931236E
for Firmware Version 11.6.4
CyberData Corporation
3 Justin Court
Monterey, CA 93940
(831) 373-2601
