Connecting the Strobe
3. Remove the mounting screw to remove the cover plate. See Figure 2-15.
4. Remove the hole plug and grommet. See Figure 2-15.
5. Slide the cover plate through the slot on the cable grommet. See Figure 2-15.
6. Install the mounting screw to secure the cover plate. See Figure 2-15.

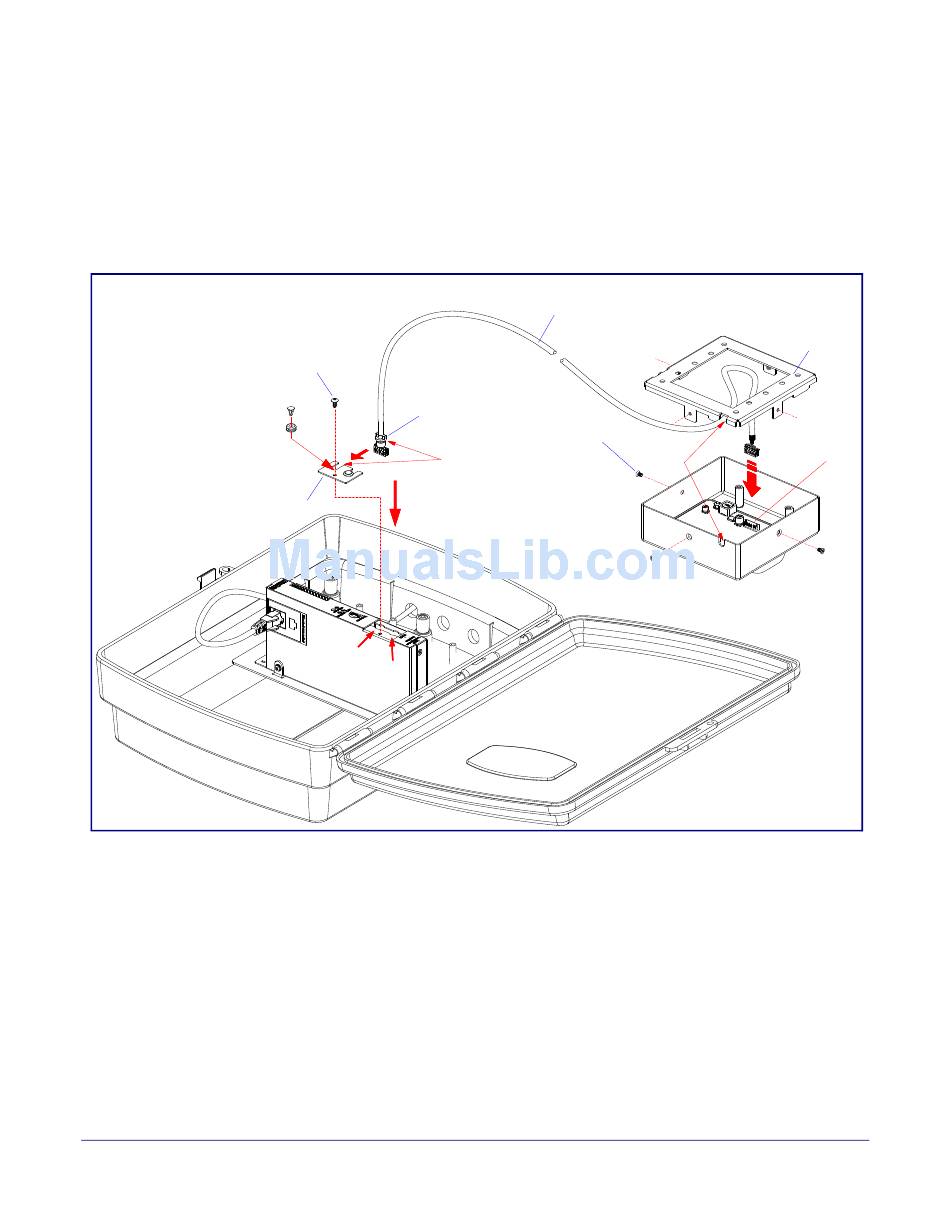

Figure 2-15. Connecting the Strobe
Strobe Cable Kit
(Part of RGB Strobe)
Back Plate
Mounting Screw
Cable
Grommet
Hole Plug &
Grommet Mounting
Screw
J1
Slot
Slot
to STROBE
Cover Plate
RGB Strobe
011288 Auxiliary RGB Strobe Kit
STROBE
MIC IN
