2.2.5 Connecting the 011288 Auxiliary RGB (Multi-Color) Strobe Kit

1. Remove the mounting screw to remove the cover plate. See
2. Remove the hole plug and grommet. See
3. Slide the cover plate through the slot on the cable grommet. See
4. Install the mounting screw to secure the cover plate. See

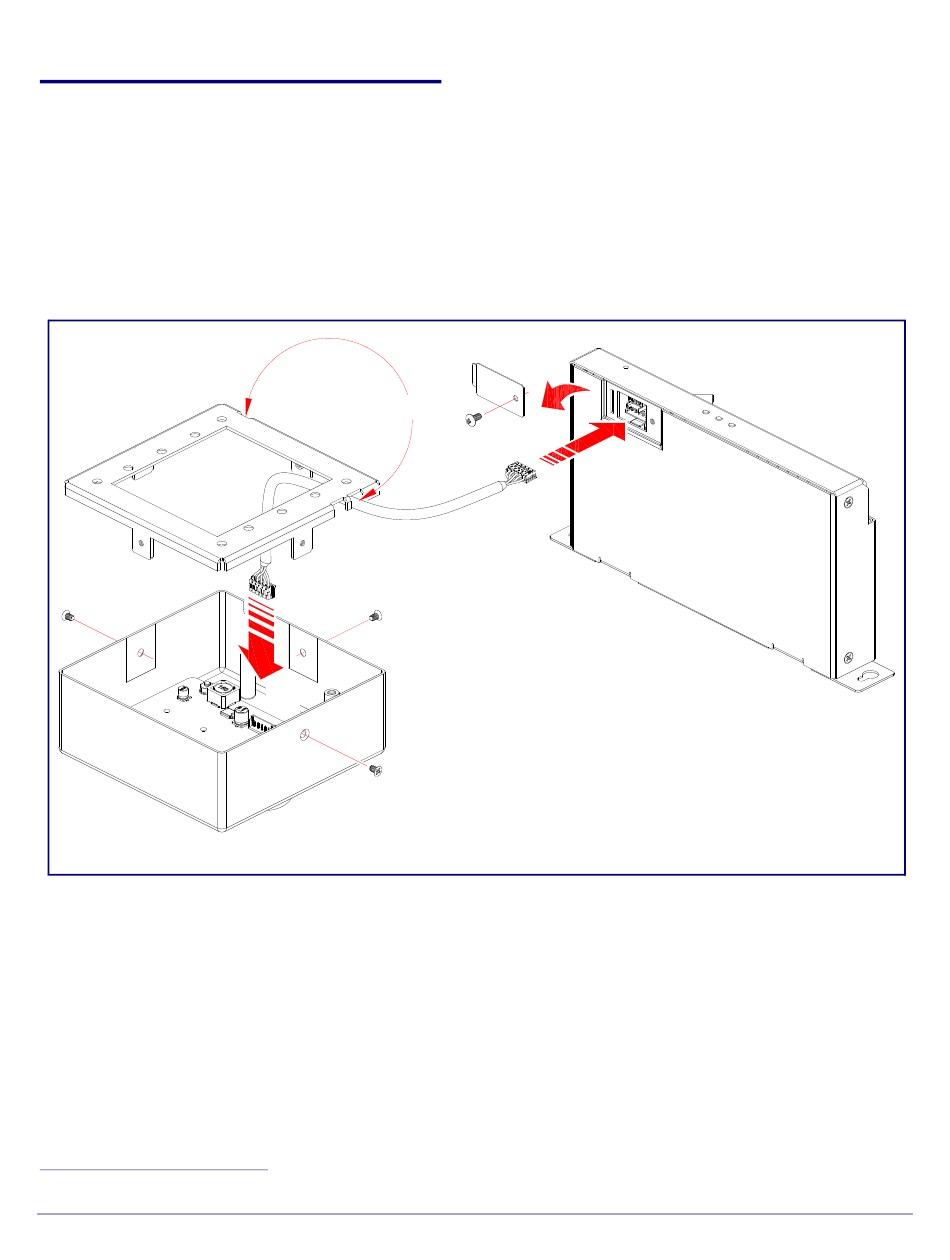

Figure 2-14. Connecting the 011288 Auxiliary RGB (Multi-Color) Strobe Kit
Backplate
*Note: The optional 011490 Outdoor Auxiliary RGB (Multi-Color) Strobe Kit can also be connected. See
1.The optional 011490 Outdoor Auxiliary RGB (Multi-Color) Strobe Kit can also be connected. See
Operations Guide
Remove Coverplate
Use Either Slot
Strobe Cable Kit
(Part of the RGB Strobe)
J1
011288 Auxiliary RGB (Multi-Color) Strobe Kit*
Auxiliary RGB Strobe Kit
Mounting Screw
931971A
Figure 2-14.
and Screw
to JX
011324 Paging Amplifier
011288
