External Power Source; Poe; Reset Button - Teldat WWAN Enabler Installation Manual

Teldat S.A.
Warning
The equipment must be used with the power supply provided by the manufacturer.
Workplace Conditions. Main Characteristics
• Avoid humid and/or dusty locations.
• Direct exposure to sunlight and to other heat sources should be avoided. The device should not be placed
amongst papers, magazines or other elements that could hinder natural air circulation.
• The device should not be placed near strong electromagnetic fields such as speakers, engines, etc.
• Knocks and/or strong vibrations should be avoided during transport, operation and storage.

3.3.1 External Power Source

To avoid electric shocks, residual current circulation, and other unwanted effects that also affect communications, the
following is recommended:
Warning
All interconnected communication devices should be plugged into THE SAME GROUNDED POWER
OUTLET, which should at the same time be of good quality (lower than 10 ohms).
We recommend connecting all data devices to the same power source regardless of whether the work-
place has an uninterrupted power supply system (UPS), a regulated supply or is independent of other
power supplies (such as lighting, etc.). This will help to prevent malfunctions and premature aging of
the drivers and other components.

3.3.2 PoE

The WWAN Enabler device can be powered through an Ethernet cable, provided the latter complies with the POE
802.3at standard (PoE+). The LAN1/PoE port is enabled for this.

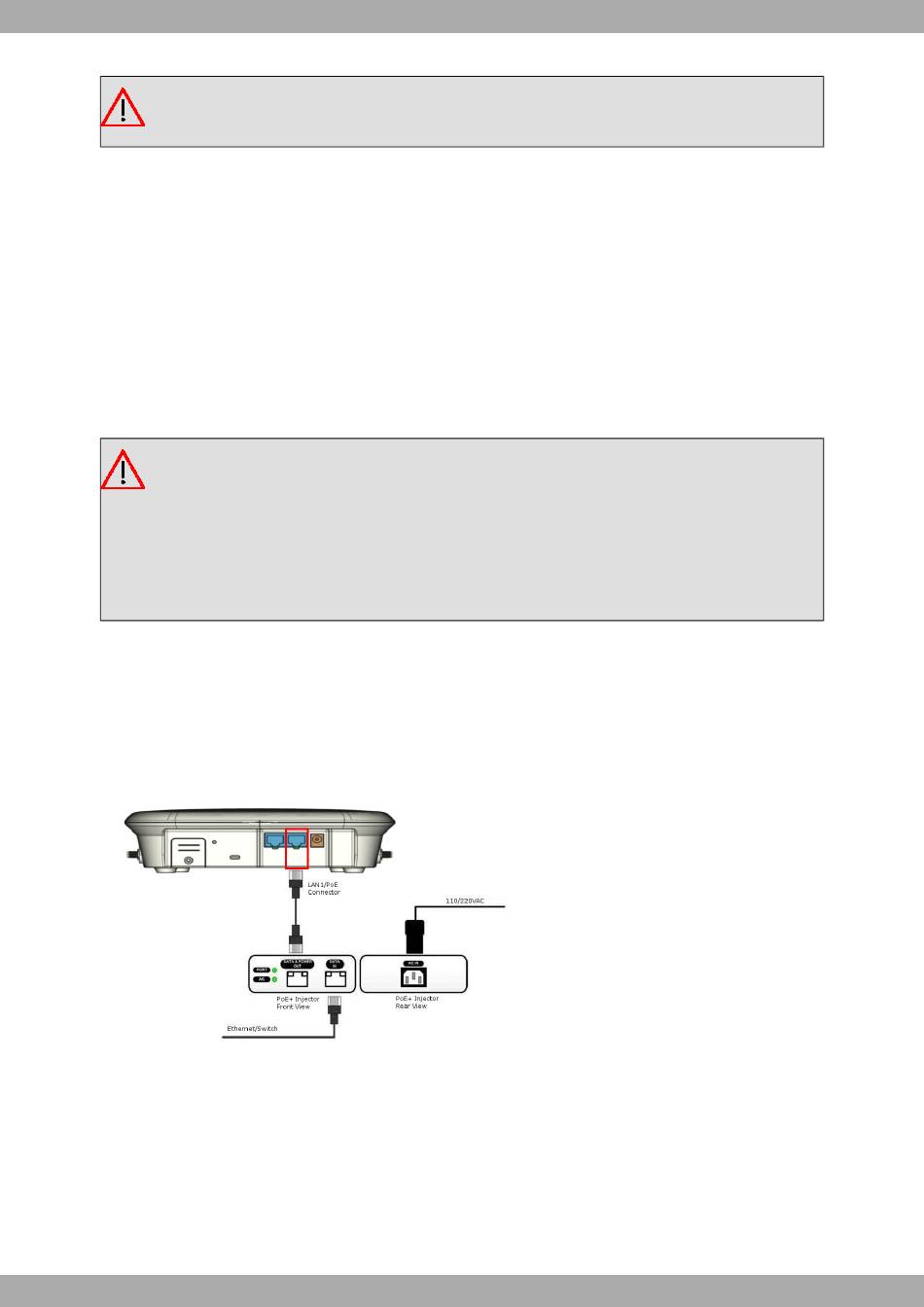

The image below shows how to connect the PoE injector to the device.
Connecting the PoE adapter to the device
Fig. 11:
Teldat S.A. offers an optional Phyhong POEA30U-1AT-2I-R PoE+ injector as an accessory. Please contact your
dealer for more information.

3.4 RESET Button

The different features of the RESET button are described below.
WWAN Enabler
3 Components and Power Supply
13
