In addition to the LEDs previously described, the front panel also has LEDs linked to the Switch Ethernet interfaces.
Ethernet interface LEDs
Fig. 2:
The table below provides information on the LEDs associated to the Switch Ethernet interface:
Switch Ethernet interface LEDs table
LED
Orange
Green

3.1.2 Rear Panel

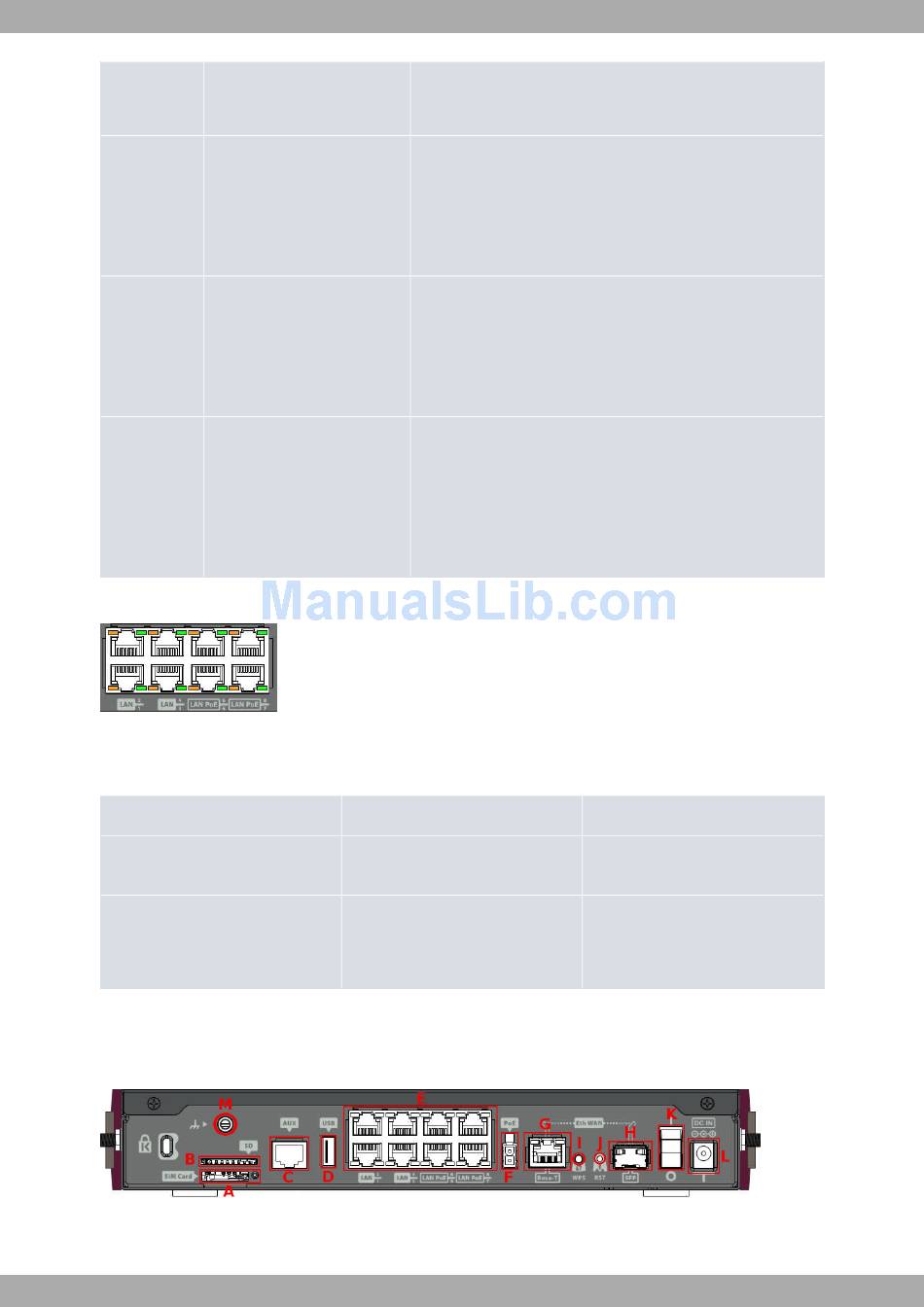

The following figure shows the rear panel. Here you will find the majority of the Teldat iM8 router connectors.
Rear panel
Fig. 3:
The following table provides information on each connector, as well as a description:
6
SIM
HDD / SDD Status
Apps Information
Expansion Slot Information
Description
PoE activity.
Ethernet (link) connection estab-
lished.
Green -> External SIM active.
Amber -> Internal SIM active.
Off -> Hard disk or SD card is not connected or is inactive.
Green -> Detected hard disk or SD card.
Amber -> Testing hard disk or SD card.
Red -> Error.
Off -> no applications detected.
Green -> applications detected.
Amber -> testing application.
Red -> application error.
Off -> There is no card in the expansion slot.
Red -> interface down.
Amber -> auto test.
Green -> interface up (blinking, in some cards, when there is con-
nection data activity).
State
Please see manual Teldat Dm776-I
Power Over Ethernet .
Off -> Link has not been detected.
Green -> Link detected. Blinking: con-
nection data activity.
