Teldat S.A.

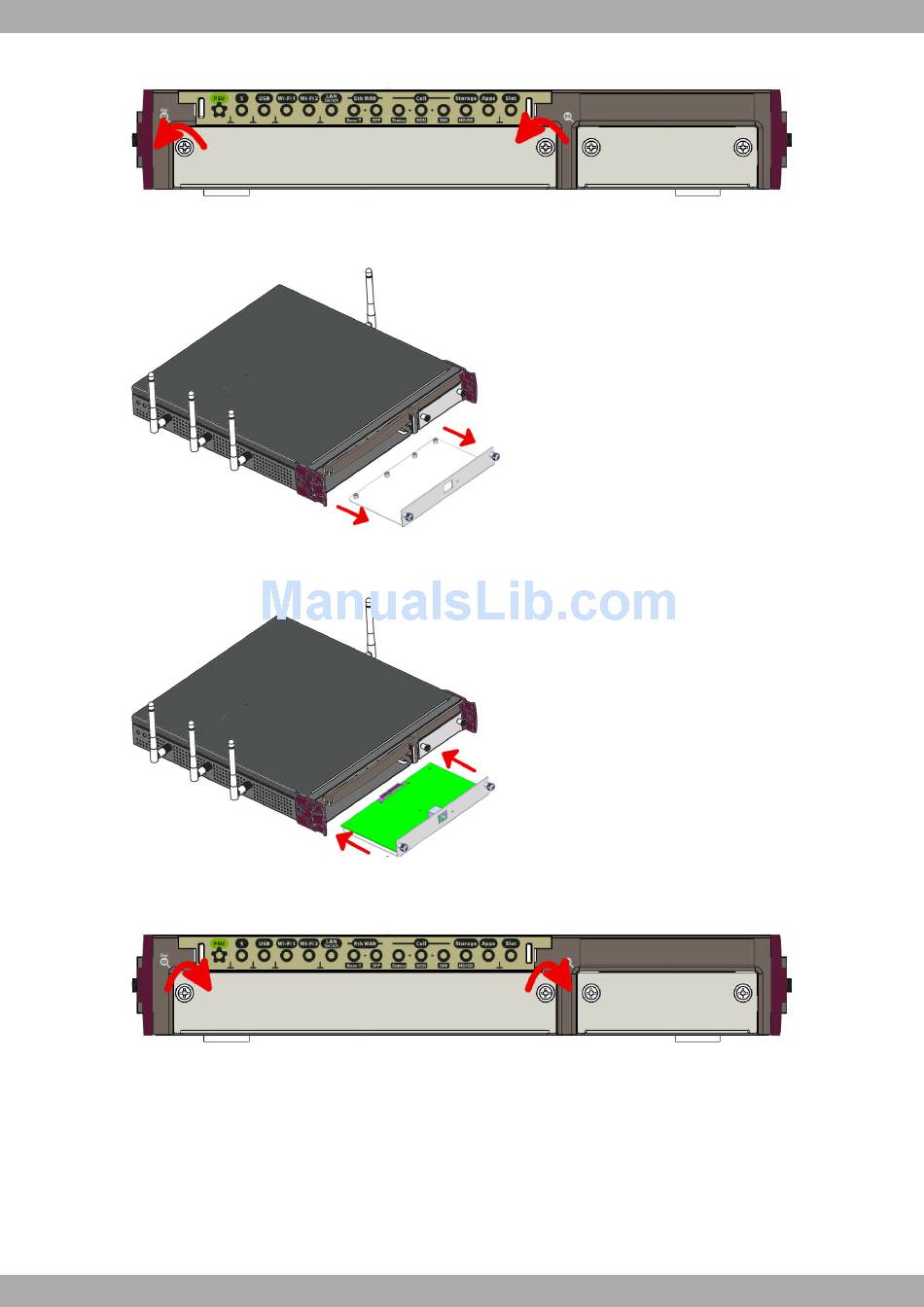

Unscrewing the front panel screws
Fig. 7:
(4) Once unscrewed, pull the tray out of the front panel slot.
Extracting the tray from the front panel
Fig. 8:
(5) Finally, put the tray that holds the card back into the device.
Inserting the expansion card
Fig. 9:
(6) Screw the tray to the device.
Screw the tray to the front panel
Fig. 10:
(7) Connect the equipment as indicated in section 3.5.1.1 "Connecting". Connect a terminal to the console and veri-
fy that the expansion card has been detected.

3.3 Installation in a rack

The Teldat iM8 device can be installed in a 19" rack. The necessary strips and screws are not provided by default
and have to be acquired separately.
(1) First, remove the side tabs to free the screws holes:
Teldat Router iM8
3 Components and Power Supply
9
