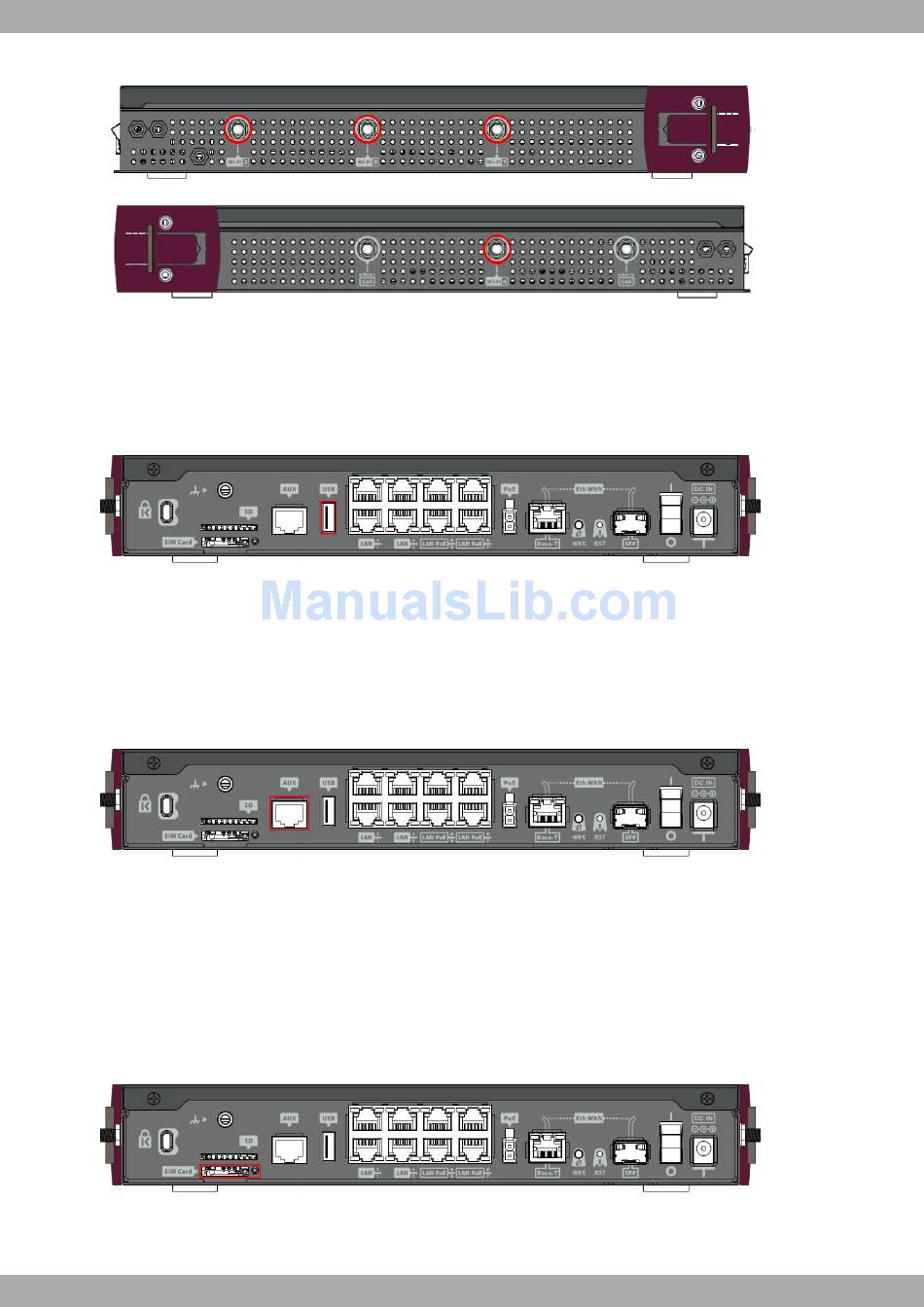

Fig. 25:

3.7.5 Connecting a 3G USB device (USB connector)

The Teldat iM8 router has a USB HOST 2.0 Type A connector interface. It allows 3G USB modems to be connected.
The interface can be activated by purchasing the corresponding software license.
3G USB Connector
Fig. 26:

3.7.6 Connecting for Configuration

The Teldat iM8 has a RJ45 female connector on the front panel (labeled "Aux") that provides access to the device's
local console
For further information, please see
Aux. Connector
Fig. 27:

3.8 Installing the SIM card

The Teldat iM8 is equipped with a Wireless WAN interface that may need a SIM card to operate. Certain services
(CDMA) provided by some carriers in several countries do not require SIM cards.
The Teldat iM8 is equipped with two SIM trays.
One is located on the rear panel of the router, as shown in the following figure.
External module SIM tray
Fig. 28:
To insert the SIM card in the external SIM tray, first place the device so you can see the rear panel and then carry
Teldat Router iM8
Connecting to the device on page 29.
3 Components and Power Supply
19
