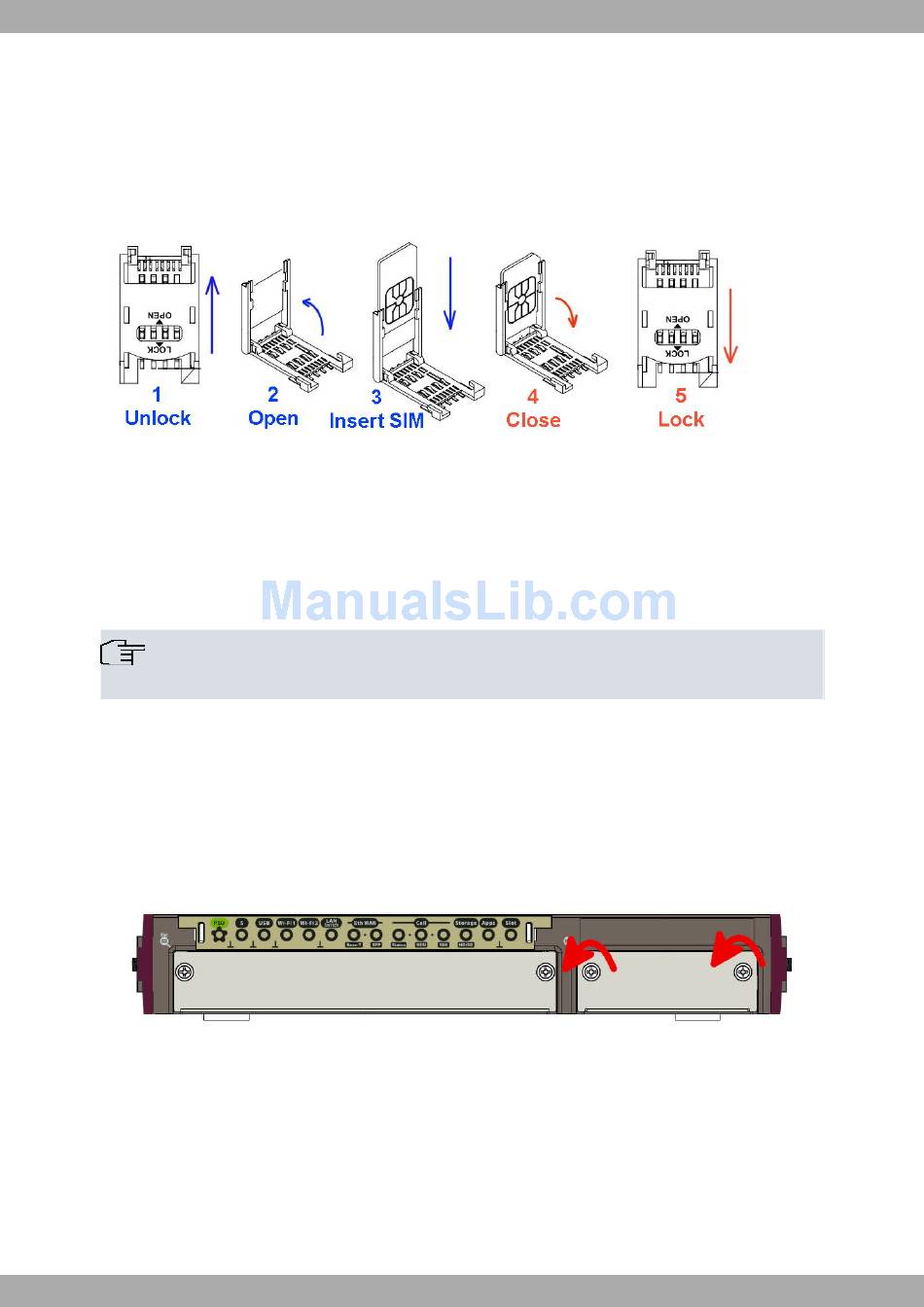

To insert a SIM, locate the slot and remove the flap. The SIM tray is now visible. Now carry out the following steps:
(1) Push the fastening in the direction indicated by the arrow with the word OPEN.
(2) Open the upper part of the tray.
(3) Fully insert the SIM card using the slot guides.
(4) Return the tray to its original position.
(5) While pressing the tray, push the fastening towards the word LOCK until it is firmly in place.
Inserting the SIM in the internal tray
Fig. 31:

3.9 Optional Storage

The applications running in the second core of the device processor can increase the features of the Teldat iM8
router.
To access said features, the device must have an internally-installed hard disk or an SD flash memory expansion.
Note
Please see the Teldat website http://www.teldat.com for a list of supported hard disks.

3.9.1 Procedure to install a hard disk

To correctly insert a hard disk, please carry out the following steps:
(1) Switch off the device and remove the data cables as described under
(2) Remove the device from the workplace and place it in a stable and safe location, where it can be easily ac-
cessed and handled.
(3) Unscrew the screws on the front panel to extract the tray and access the hard disk.
Unscrewing the screws from the front panel tray
Fig. 32:
(4) Once unscrewed, pull out the tray from the front panel slot.
Teldat Router iM8
3 Components and Power Supply
Disconnecting on page 13.
