Teldat iM8 Installation Manual page 16

3 Components and Power Supply

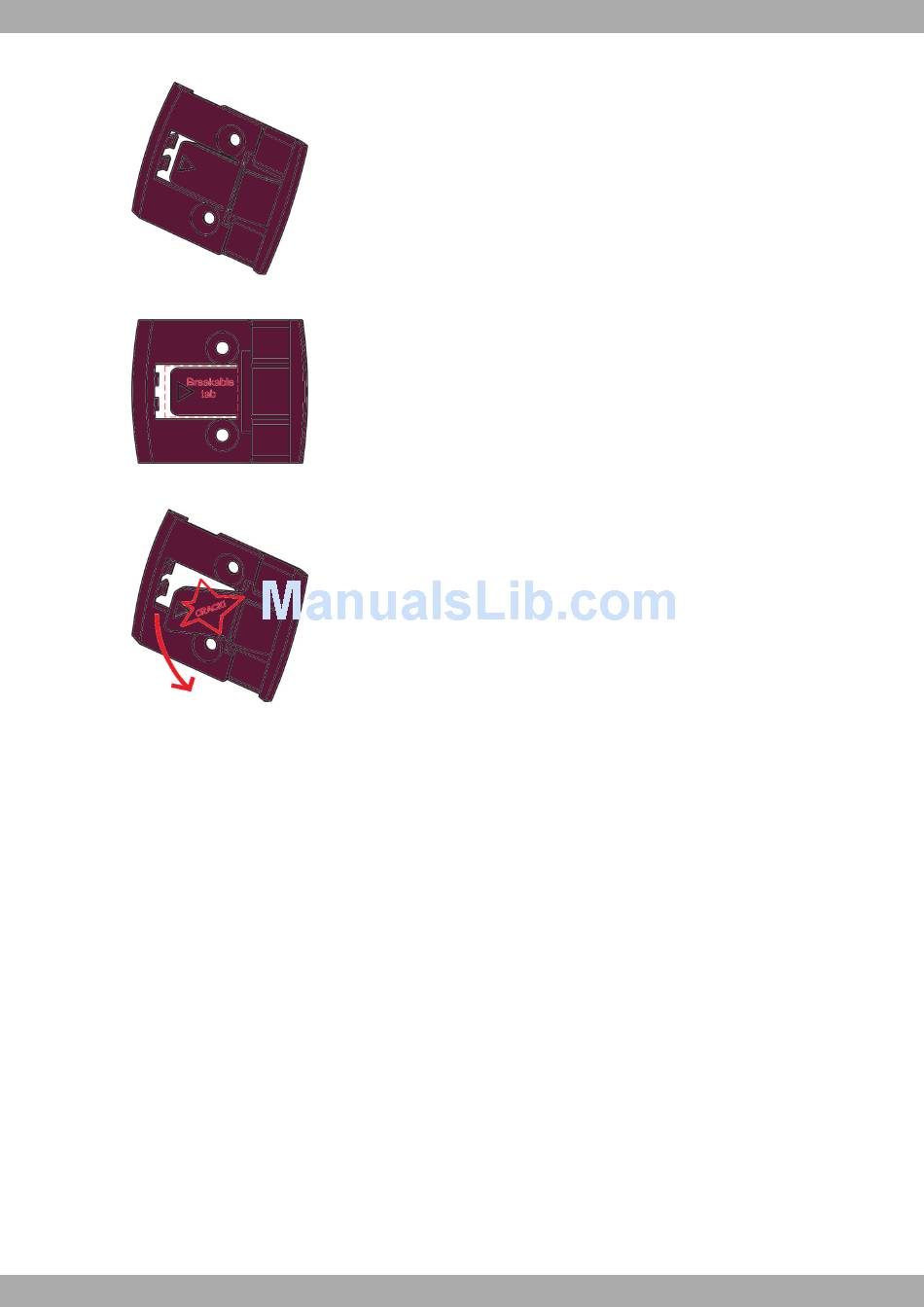

The central tab that has to be removed
Fig. 11:
Removable tab part
Fig. 12:
Breaking off the tab
Fig. 13:
(2) Both strips are attached to the device by means of 5 screws, as shown in the following figure:
10
Teldat S.A.
Teldat Router iM8
