3.5.1.1 Connecting
• Ensure that the on/off power supply switch is in the OFF position (0).
• Make sure the power supply is NOT connected to the electricity or the device.
• Connect all data cables.
• Connect the external adapter power cable to the device.
• Connect the adapter power cable to the main supply (wall socket).
• Set the device's on/off power supply switch in the ON position (1).
3.5.1.2 Disconnecting
• Set the on/off power supply switch in the OFF position (0).
• Disconnect the adapter power cable to the main supply (wall socket).
• Remove the power supply cable from the device.
• Disconnect the data cables.

3.5.2 PoE Source

The Teldat iM8 can be powered through an Ethernet cable that complies with the PoE 802.3af standard (15.4 W per
port). Another external adapter and internal card are needed for this functionality.
The following figure shows where to connect the PoE source to the device:

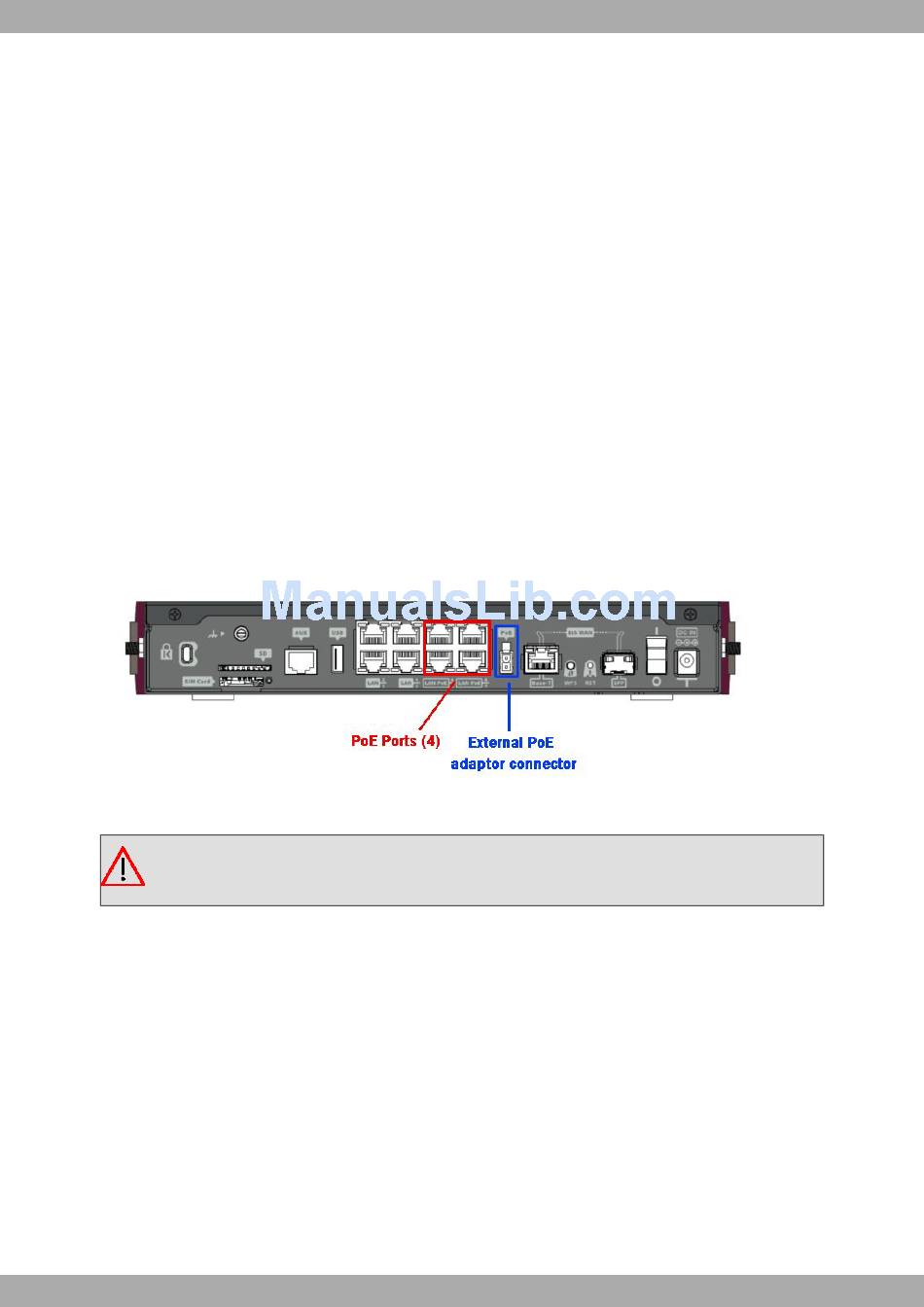

PoE source connection and PoE ports
Fig. 16:
Warning
The equipment must be used with the power supply provided by the manufacturer.
3.5.2.1 Installing the MiniPoE card
To correctly insert the card, please follow these steps:
(1) Switch off the device and remove the data cables, as described in
(2) Remove the device from the workplace and place it in a stable, safe location where it can be easily accessed
and handled.
(3) Remove the two screws from the rear panel in order to be able to dismantle the cover that gives access to the
MiniPoE card.
Teldat Router iM8
3 Components and Power Supply
Disconnecting on page 13.
