Levelflex FMP55 FOUNDATION Fieldbus
Accessory Description
Mounting bracket for the
electronics housing
 26
A
B

Endress+Hauser

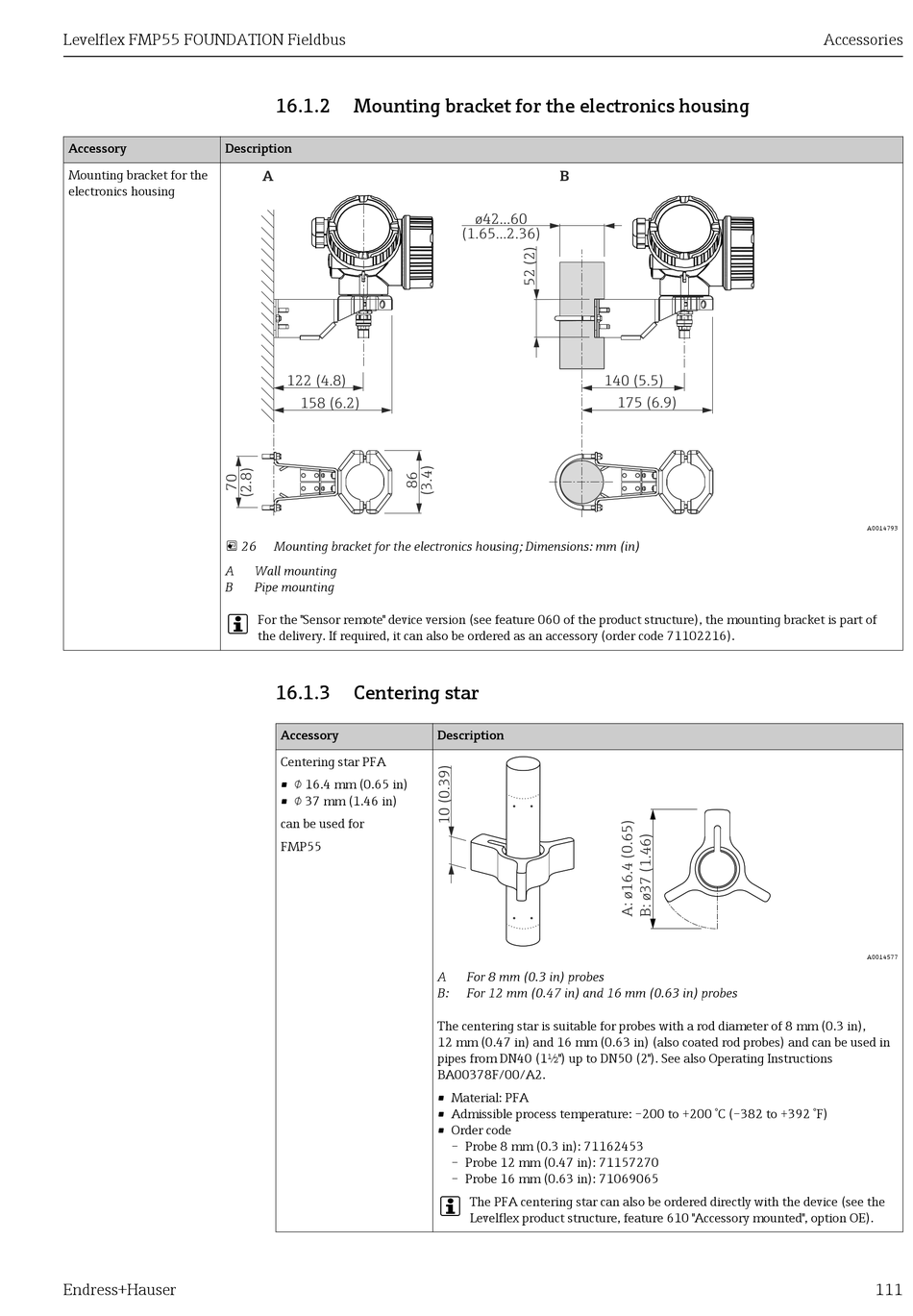

16.1.2 Mounting bracket for the electronics housing
A
122 (4.8)
158 (6.2)
Mounting bracket for the electronics housing; Dimensions: mm (in)
Wall mounting
Pipe mounting
For the "Sensor remote" device version (see feature 060 of the product structure), the mounting bracket is part of
the delivery. If required, it can also be ordered as an accessory (order code 71102216).
16.1.3

Centering star

Accessory
Centering star PFA
•  16.4 mm (0.65 in)
•  37 mm (1.46 in)
can be used for
FMP55
B
ø42...60
(1.65...2.36)
140 (5.5)
Description
A For 8 mm (0.3 in) probes
B: For 12 mm (0.47 in) and 16 mm (0.63 in) probes
The centering star is suitable for probes with a rod diameter of 8 mm (0.3 in),
12 mm (0.47 in) and 16 mm (0.63 in) (also coated rod probes) and can be used in
pipes from DN40 (1½") up to DN50 (2"). See also Operating Instructions
BA00378F/00/A2.
• Material: PFA
• Admissible process temperature: –200 to +200 °C (–382 to +392 °F)
• Order code
– Probe 8 mm (0.3 in): 71162453
– Probe 12 mm (0.47 in): 71157270
– Probe 16 mm (0.63 in): 71069065

The PFA centering star can also be ordered directly with the device (see the
Levelflex product structure, feature 610 "Accessory mounted", option OE).
175 (6.9)
Accessories
A0014793
A0014577
111
