Operating menu
Additional information
Terminal voltage 1
Navigation
Description
Block tag
Navigation
Description
Factory setting
194

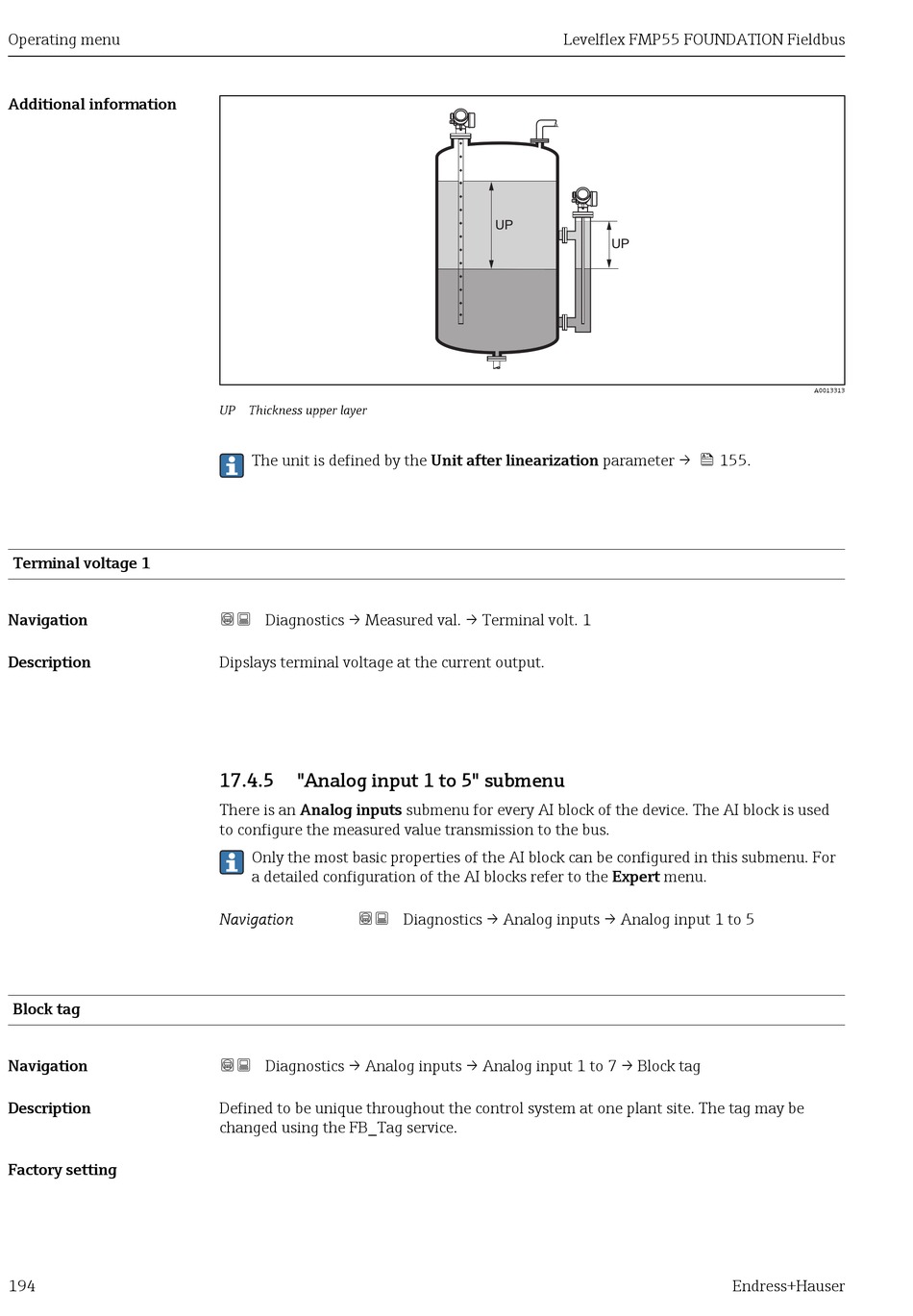

UP Thickness upper layer
The unit is defined by the Unit after linearization parameter →  155.
 Diagnostics → Measured val. → Terminal volt. 1
Dipslays terminal voltage at the current output.
17.4.5

"Analog input 1 to 5" submenu

There is an Analog inputs submenu for every AI block of the device. The AI block is used
to configure the measured value transmission to the bus.
Only the most basic properties of the AI block can be configured in this submenu. For
a detailed configuration of the AI blocks refer to the Expert menu.
Navigation  Diagnostics → Analog inputs → Analog input 1 to 5
 Diagnostics → Analog inputs → Analog input 1 to 7 → Block tag
Defined to be unique throughout the control system at one plant site. The tag may be
changed using the FB_Tag service.
Levelflex FMP55 FOUNDATION Fieldbus
UP
UP
A0013313
Endress+Hauser
