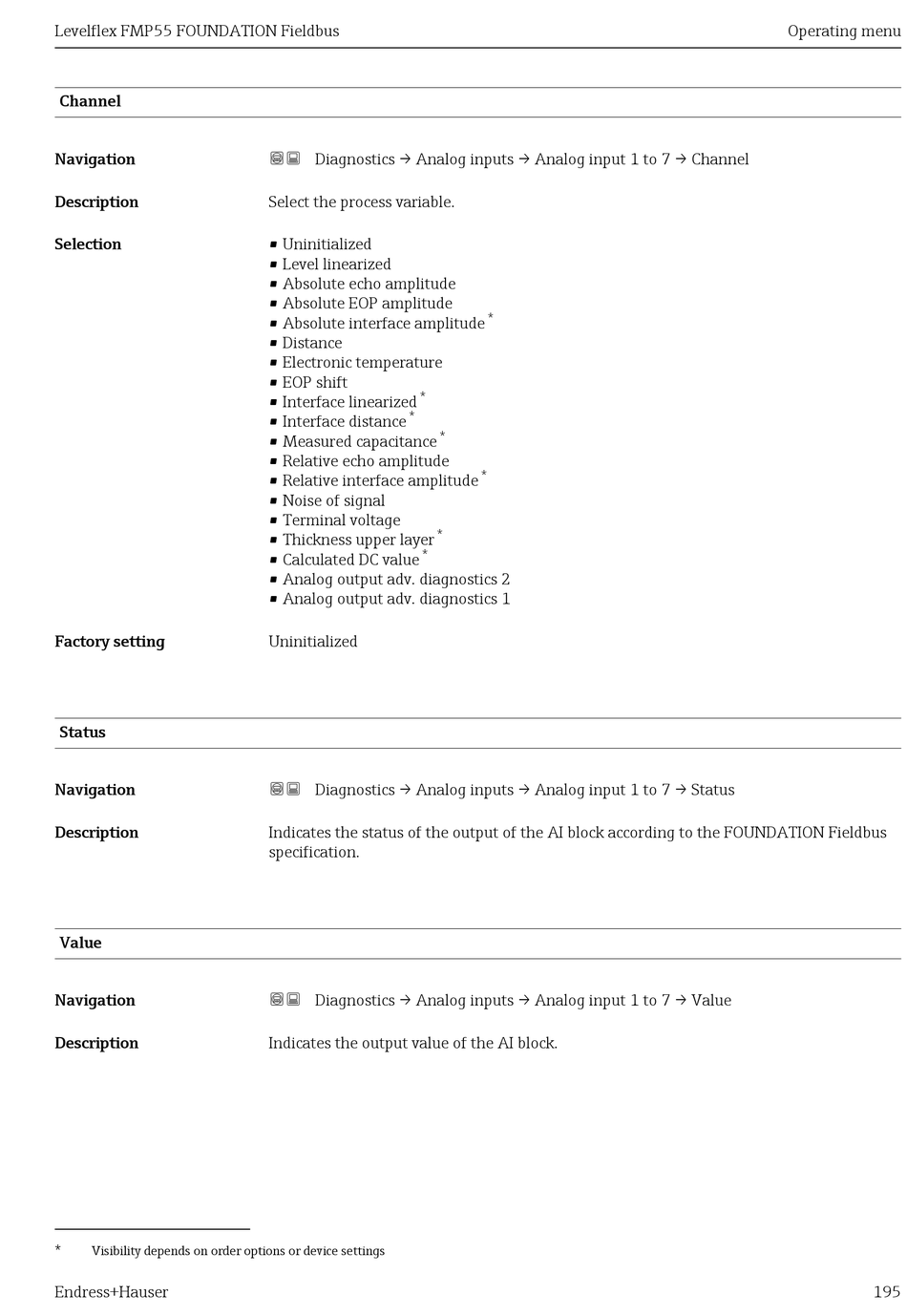

Endress+Hauser Levelflex FMP55 Operating Instructions Manual page 195

Levelflex FMP55 FOUNDATION Fieldbus
Channel
Navigation
Description
Selection
Factory setting
Status
Navigation
Description
Value
Navigation
Description
* Visibility depends on order options or device settings
Endress+Hauser
 Diagnostics → Analog inputs → Analog input 1 to 7 → Channel
Select the process variable.
• Uninitialized
• Level linearized
• Absolute echo amplitude
• Absolute EOP amplitude
• Absolute interface amplitude
• Distance
• Electronic temperature
• EOP shift
*
• Interface linearized
*
• Interface distance
• Measured capacitance
• Relative echo amplitude
• Relative interface amplitude
• Noise of signal
• Terminal voltage
*
• Thickness upper layer
*
• Calculated DC value
• Analog output adv. diagnostics 2
• Analog output adv. diagnostics 1
Uninitialized
 Diagnostics → Analog inputs → Analog input 1 to 7 → Status
Indicates the status of the output of the AI block according to the FOUNDATION Fieldbus
specification.
 Diagnostics → Analog inputs → Analog input 1 to 7 → Value
Indicates the output value of the AI block.
*
*
*
Operating menu
