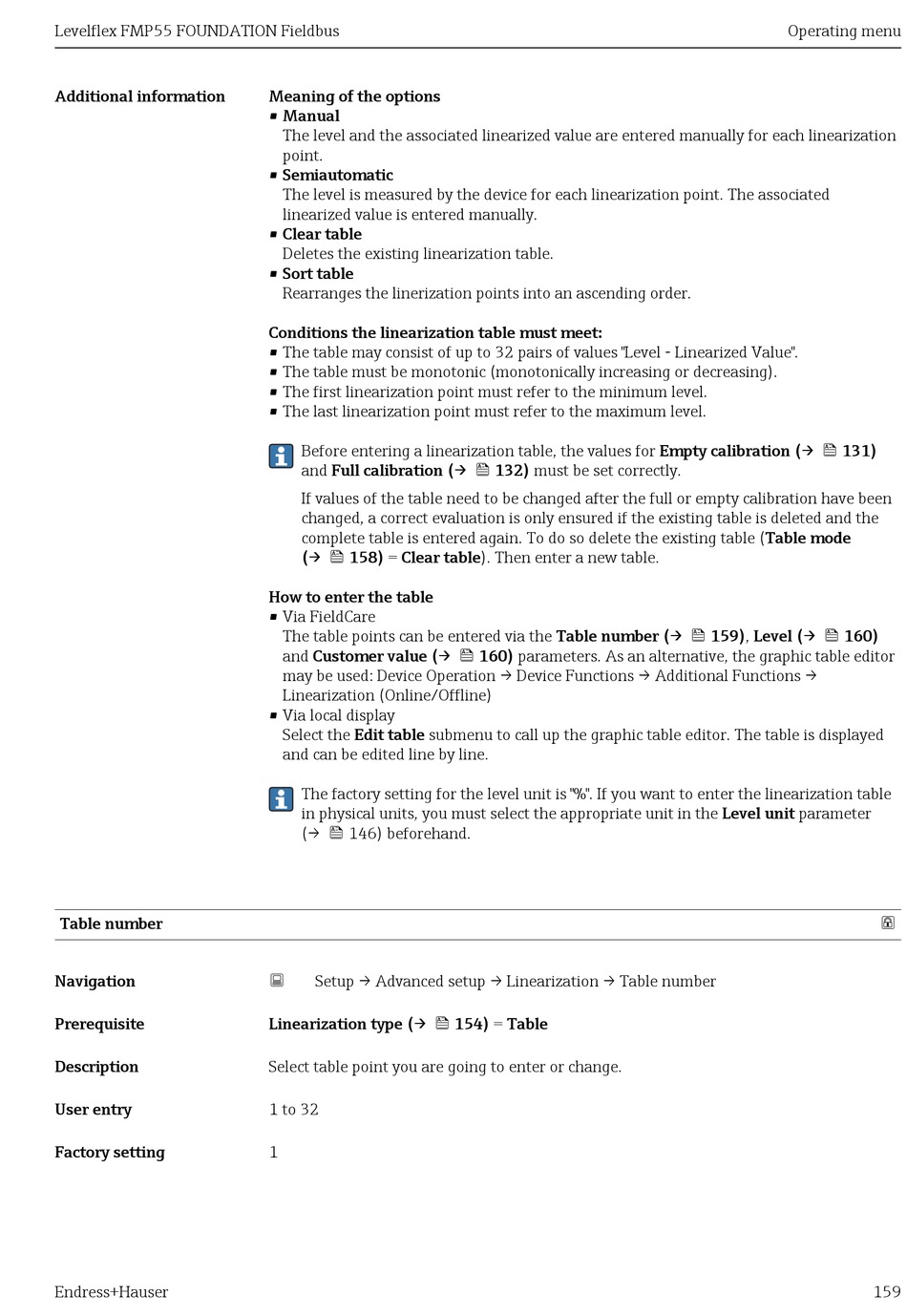

Endress+Hauser Levelflex FMP55 Operating Instructions Manual page 159

Levelflex FMP55 FOUNDATION Fieldbus
Additional information
Table number
Navigation
Prerequisite
Description
User entry
Factory setting
Endress+Hauser
Meaning of the options
• Manual
The level and the associated linearized value are entered manually for each linearization
point.
• Semiautomatic
The level is measured by the device for each linearization point. The associated
linearized value is entered manually.
• Clear table
Deletes the existing linearization table.
• Sort table
Rearranges the linerization points into an ascending order.
Conditions the linearization table must meet:
• The table may consist of up to 32 pairs of values "Level - Linearized Value".
• The table must be monotonic (monotonically increasing or decreasing).
• The first linearization point must refer to the minimum level.
• The last linearization point must refer to the maximum level.
Before entering a linearization table, the values for Empty calibration (→  131)
and Full calibration (→  132) must be set correctly.
If values of the table need to be changed after the full or empty calibration have been
changed, a correct evaluation is only ensured if the existing table is deleted and the
complete table is entered again. To do so delete the existing table (Table mode
(→  158) = Clear table). Then enter a new table.
How to enter the table
• Via FieldCare
The table points can be entered via the Table number (→  159), Level (→  160)
and Customer value (→  160) parameters. As an alternative, the graphic table editor
may be used: Device Operation → Device Functions → Additional Functions →
Linearization (Online/Offline)
• Via local display
Select the Edit table submenu to call up the graphic table editor. The table is displayed
and can be edited line by line.
The factory setting for the level unit is "%". If you want to enter the linearization table
in physical units, you must select the appropriate unit in the Level unit parameter
(→  146) beforehand.
 Setup → Advanced setup → Linearization → Table number
Linearization type (→  154) = Table
Select table point you are going to enter or change.
1 to 32
1
Operating menu

159
