Operation options
54
8.3

Display and operating module

8.3.1

Display appearance

1
1.1
1.2
5
User
ABC_
LMNO
XYZ

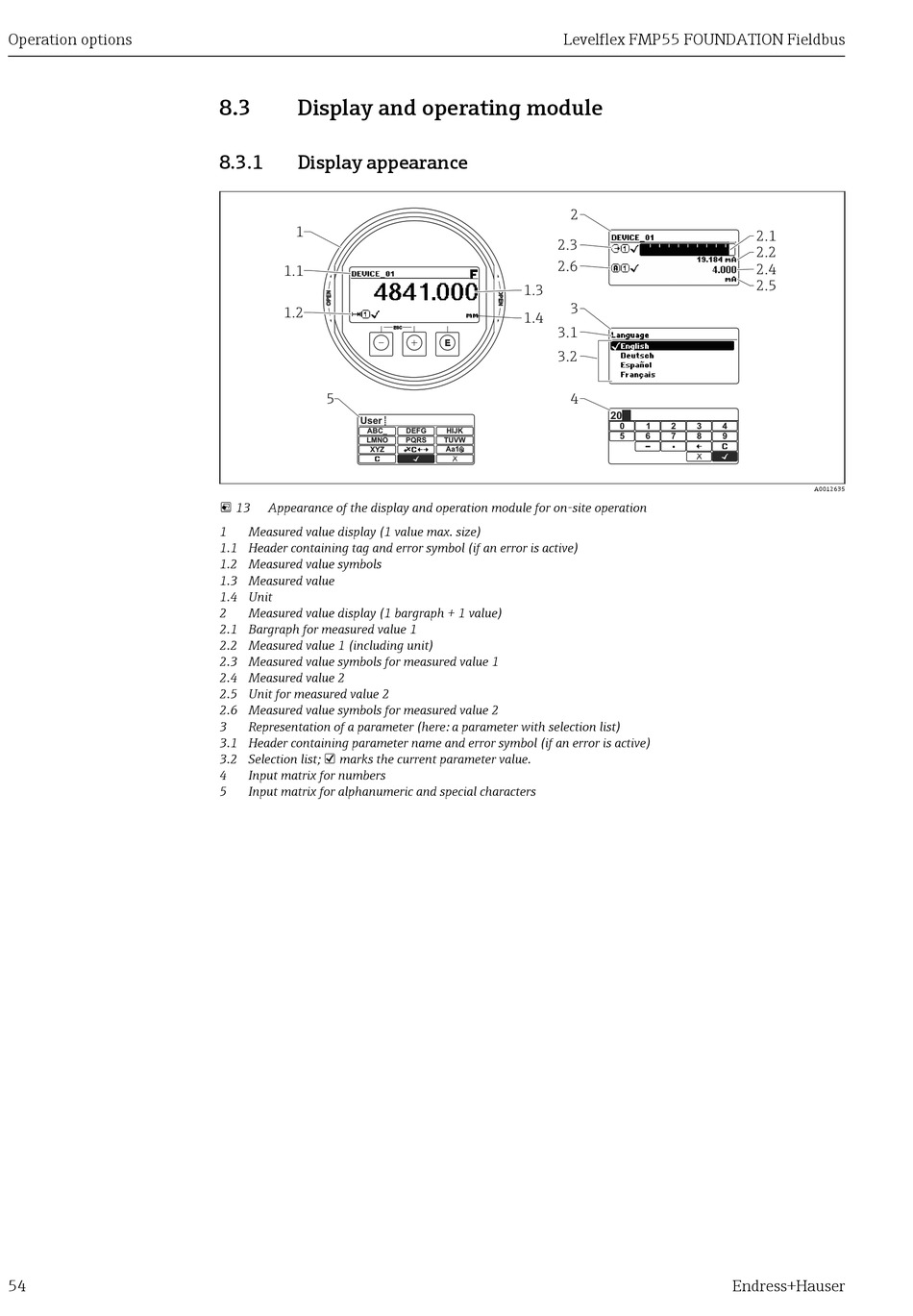

 13 Appearance of the display and operation module for on-site operation
1 Measured value display (1 value max. size)
1.1 Header containing tag and error symbol (if an error is active)
1.2 Measured value symbols
1.3 Measured value
1.4 Unit
2 Measured value display (1 bargraph + 1 value)
2.1 Bargraph for measured value 1
2.2 Measured value 1 (including unit)
2.3 Measured value symbols for measured value 1
2.4 Measured value 2
2.5 Unit for measured value 2
2.6 Measured value symbols for measured value 2
3 Representation of a parameter (here: a parameter with selection list)
3.1 Header containing parameter name and error symbol (if an error is active)
3.2 Selection list;  marks the current parameter value.
4 Input matrix for numbers
5 Input matrix for alphanumeric and special characters
Levelflex FMP55 FOUNDATION Fieldbus
2.3
2.6
1.3
1.4
ESC
3.1
E
3.2
DEFG HIJK
PQRS TUVW
Aa1
2
3
4
20
0 1 2 3 4
5 6 7 8 9
Endress+Hauser
2.1
2.2
2.4
2.5
A0012635
