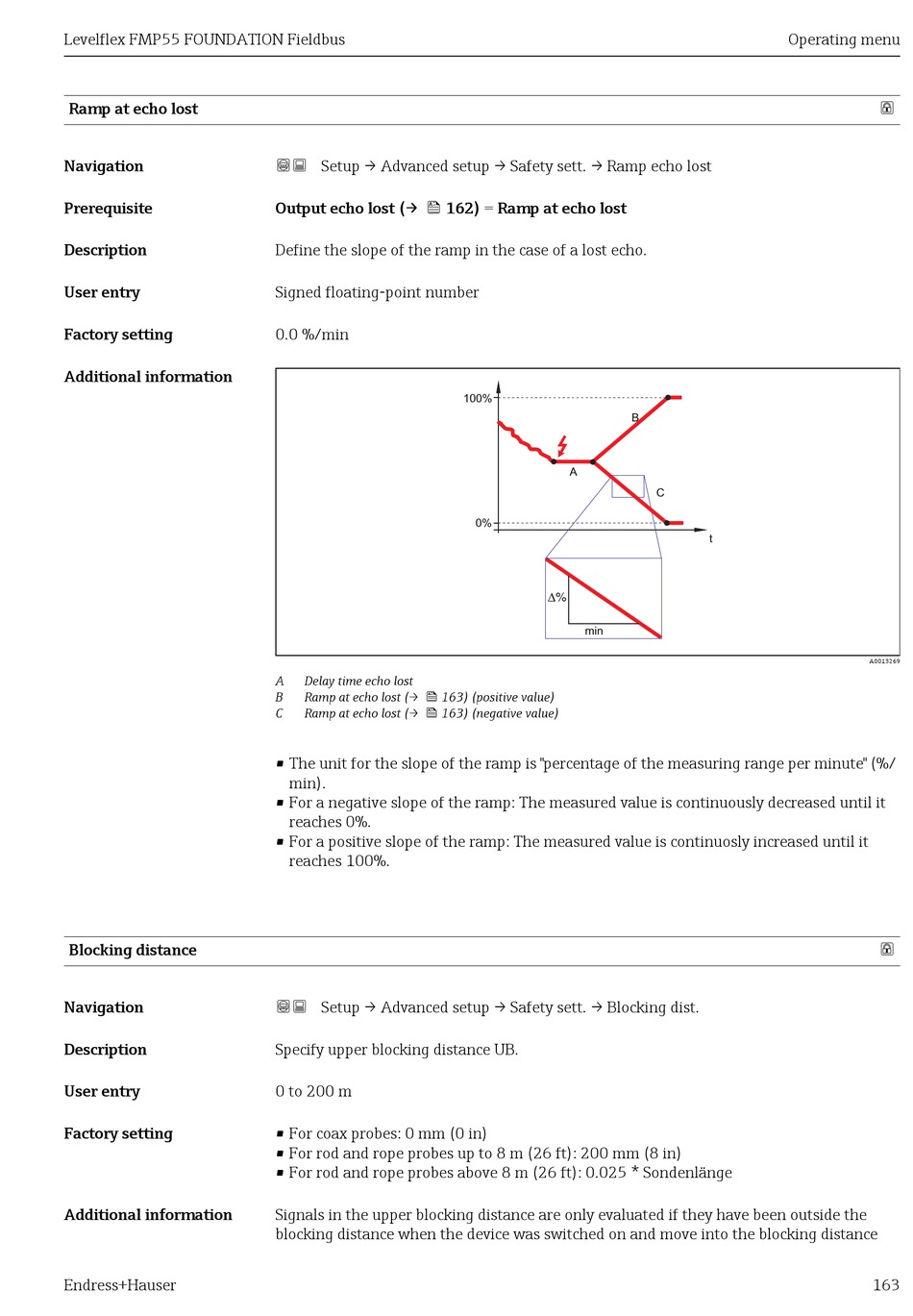

Endress+Hauser Levelflex FMP55 Operating Instructions Manual page 163

Levelflex FMP55 FOUNDATION Fieldbus
Ramp at echo lost
Navigation
Prerequisite
Description
User entry
Factory setting
Additional information
Blocking distance
Navigation
Description
User entry
Factory setting
Additional information
Endress+Hauser
 Setup → Advanced setup → Safety sett. → Ramp echo lost
Output echo lost (→  162) = Ramp at echo lost
Define the slope of the ramp in the case of a lost echo.
Signed floating-point number
0.0 %/min
A Delay time echo lost
B Ramp at echo lost (→  163) (positive value)
C Ramp at echo lost (→  163) (negative value)
• The unit for the slope of the ramp is "percentage of the measuring range per minute" (%/
min).
• For a negative slope of the ramp: The measured value is continuously decreased until it
reaches 0%.
• For a positive slope of the ramp: The measured value is continuosly increased until it
reaches 100%.
 Setup → Advanced setup → Safety sett. → Blocking dist.
Specify upper blocking distance UB.
0 to 200 m
• For coax probes: 0 mm (0 in)
• For rod and rope probes up to 8 m (26 ft): 200 mm (8 in)
• For rod and rope probes above 8 m (26 ft): 0.025 * Sondenlänge
Signals in the upper blocking distance are only evaluated if they have been outside the
blocking distance when the device was switched on and move into the blocking distance
100%
B
A
0%
min
Operating menu
C
t

A0013269

163
