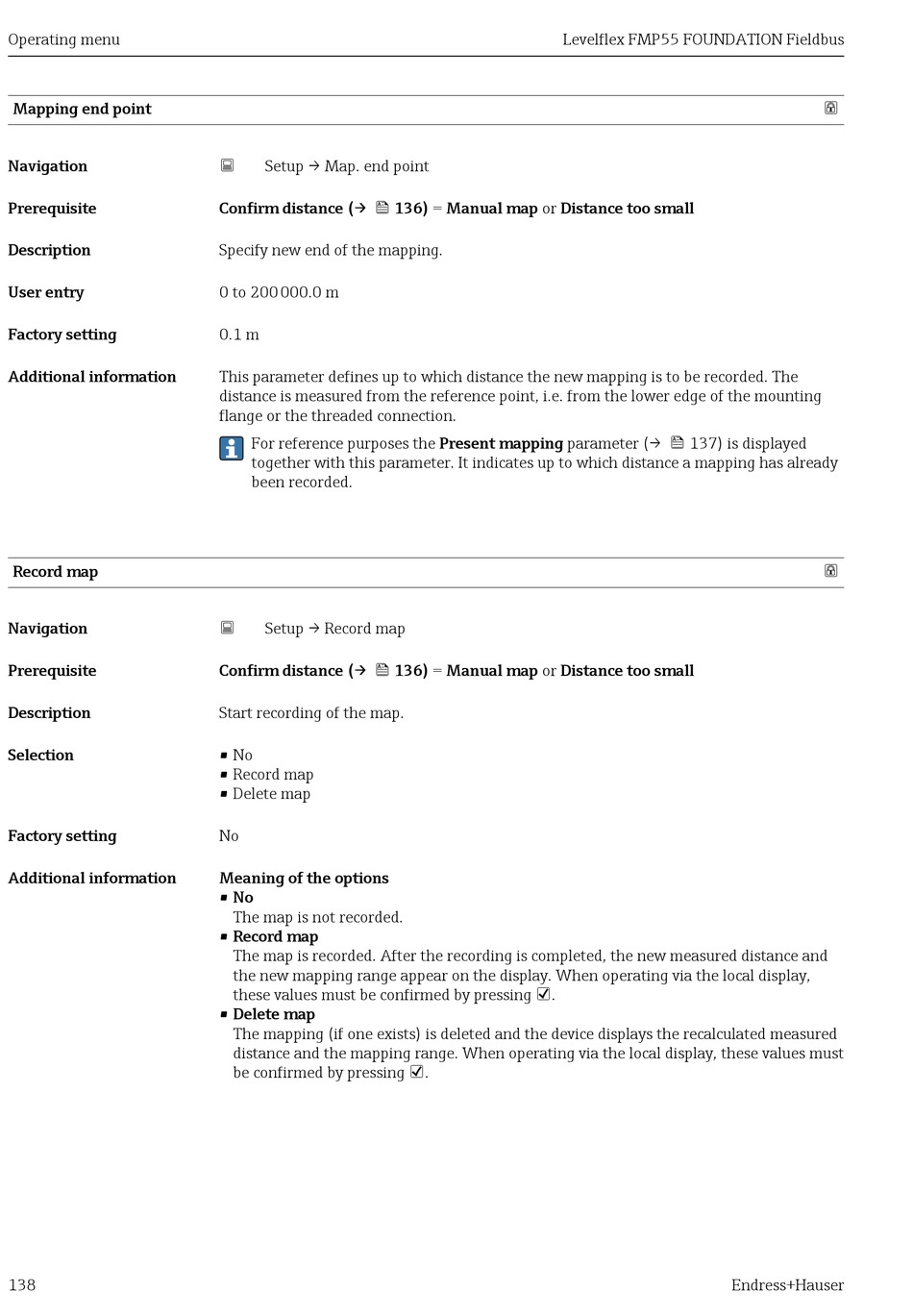

Operating menu
Mapping end point
Navigation
Prerequisite
Description
User entry
Factory setting
Additional information
Record map
Navigation
Prerequisite
Description
Selection
Factory setting
Additional information
138
 Setup → Map. end point
Confirm distance (→  136) = Manual map or Distance too small
Specify new end of the mapping.
0 to 200 000.0 m
0.1 m
This parameter defines up to which distance the new mapping is to be recorded. The
distance is measured from the reference point, i.e. from the lower edge of the mounting
flange or the threaded connection.
For reference purposes the Present mapping parameter (→  137) is displayed
together with this parameter. It indicates up to which distance a mapping has already
been recorded.
 Setup → Record map
Confirm distance (→  136) = Manual map or Distance too small
Start recording of the map.
• No
• Record map
• Delete map
No
Meaning of the options
• No
The map is not recorded.
• Record map
The map is recorded. After the recording is completed, the new measured distance and
the new mapping range appear on the display. When operating via the local display,
these values must be confirmed by pressing .
• Delete map
The mapping (if one exists) is deleted and the device displays the recalculated measured
distance and the mapping range. When operating via the local display, these values must
be confirmed by pressing .
